Communication Initializing Impossible (Communication Failure)

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS:
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS warning light remains on.

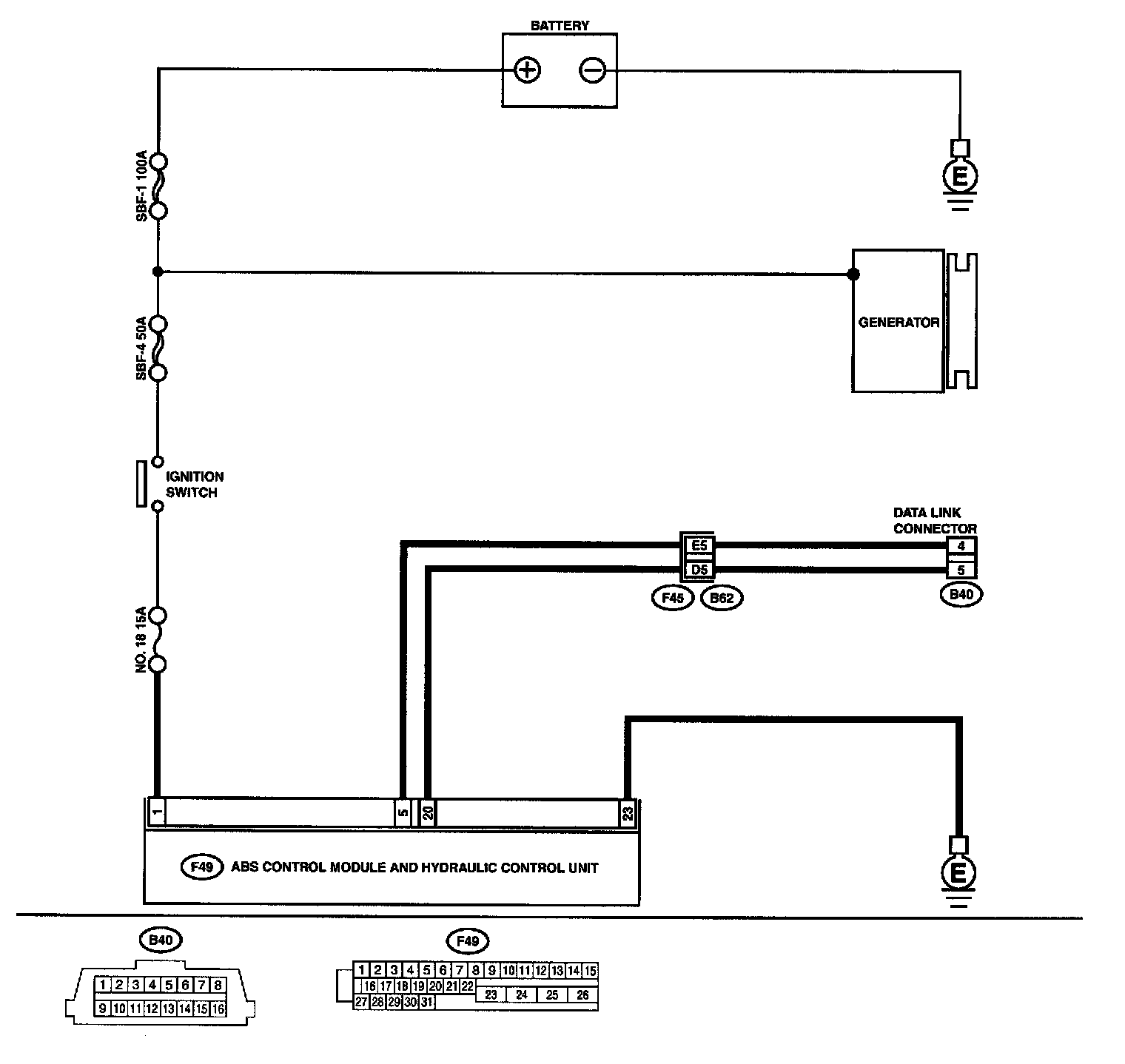

WIRING DIAGRAM

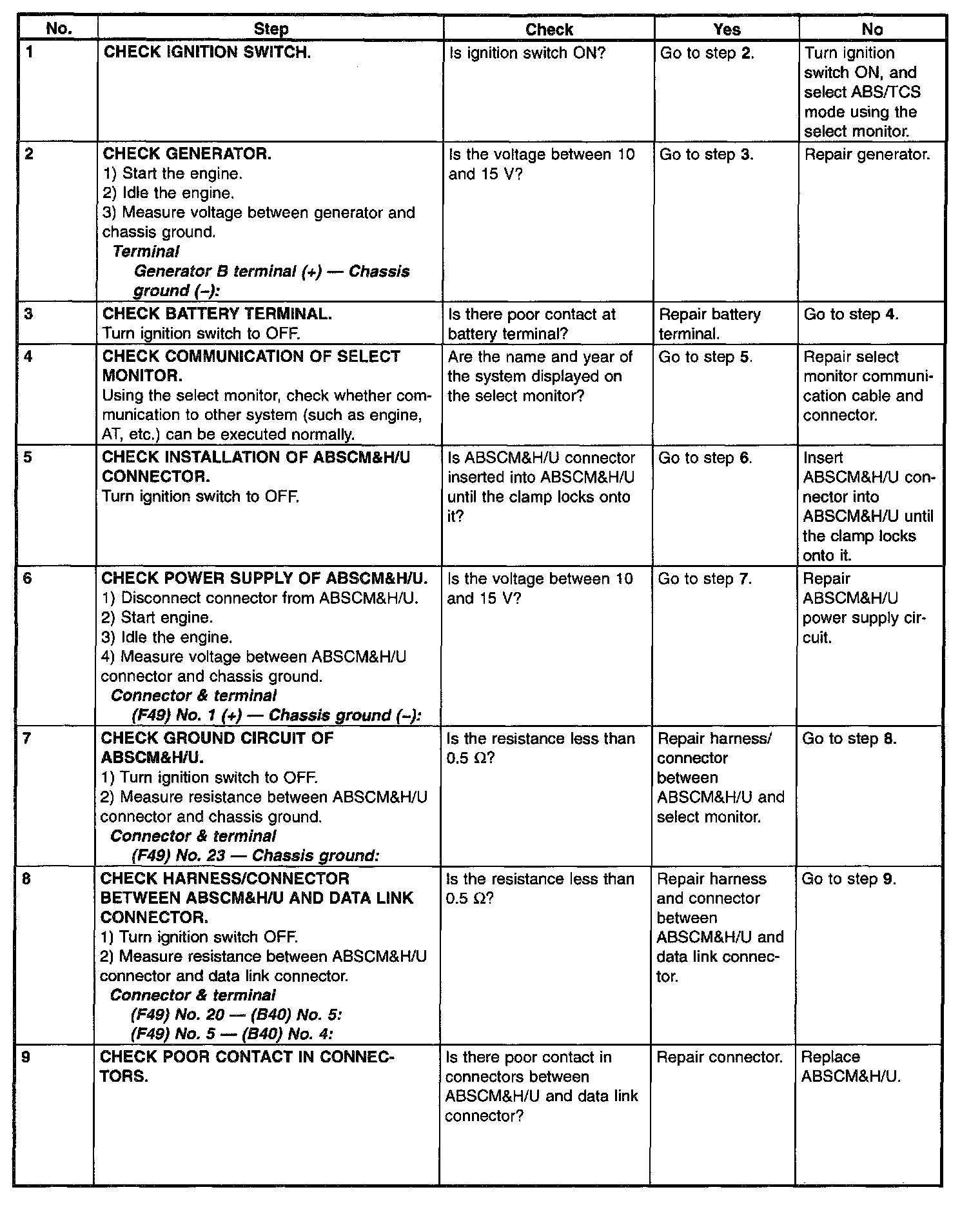

PROCEDURE
