ABS Warning Light Does Not GO Off

ABS WARNING LIGHT DOES NOT GO OFF
DIAGNOSIS:
- ABS warning light circuit is open or shorted.
TROUBLE SYMPTOM:
- When starting the engine and while ABS warning light is kept ON.





WIRING DIAGRAM

PROCEDURE:

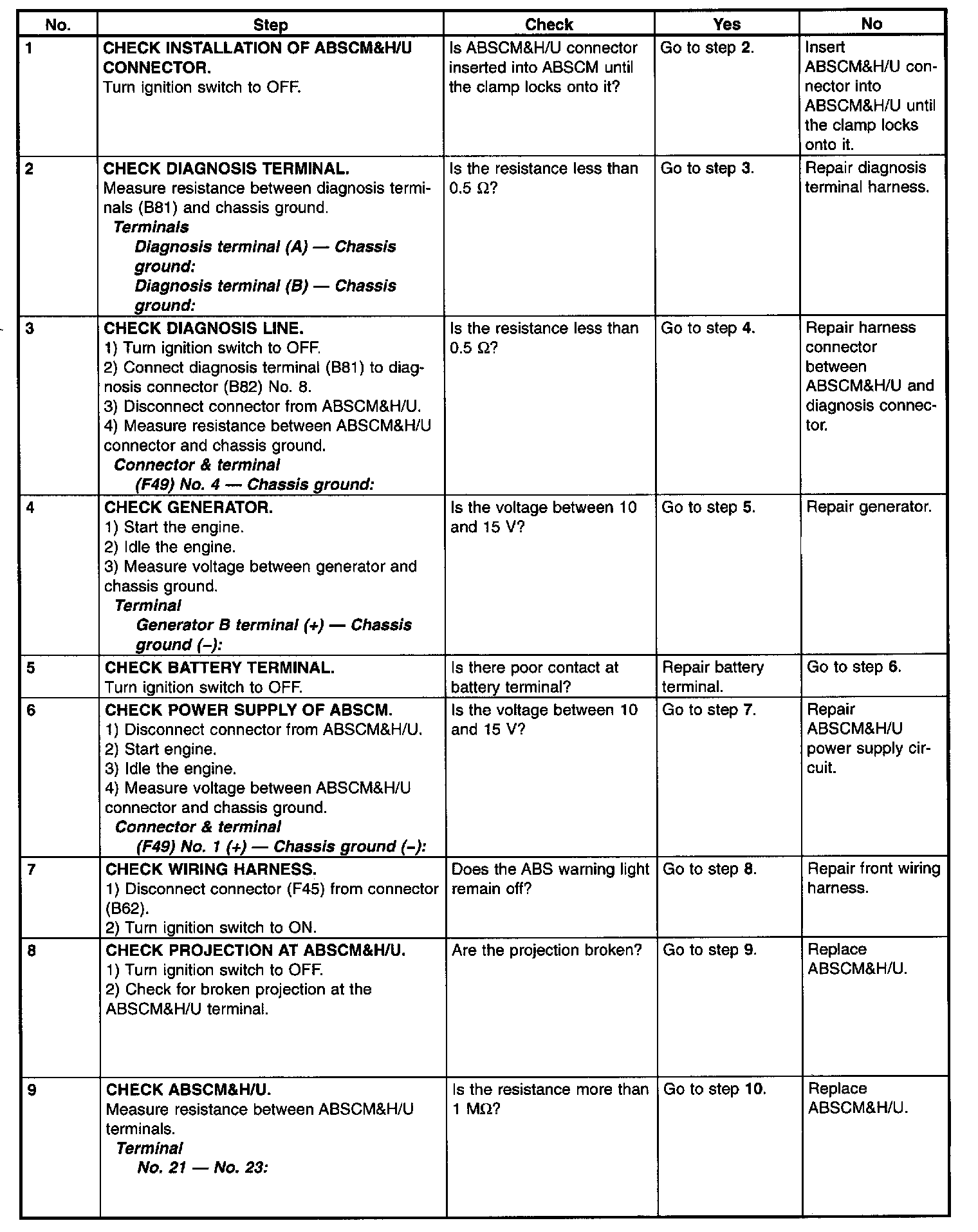

Part 1 of 2

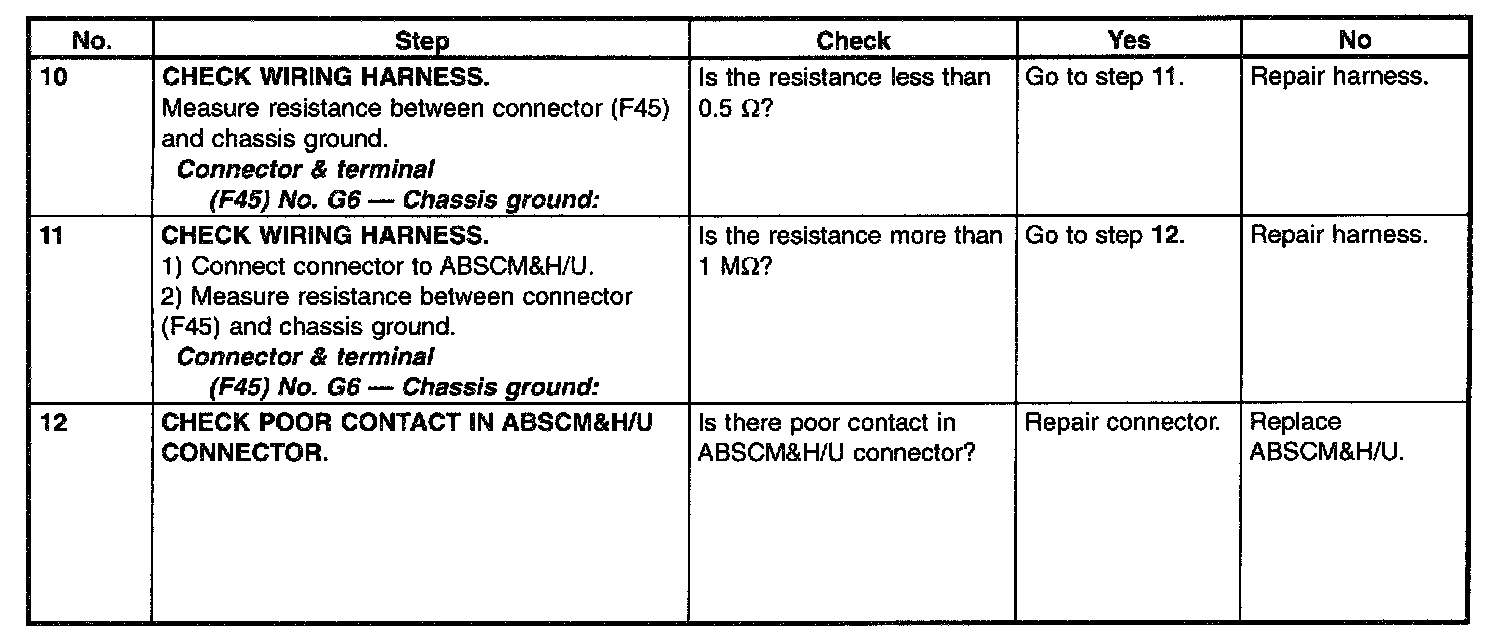

Part 2 of 2
