Splash Guard: Service and Repair

FRONT UNDER COVER

REMOVAL

1. Lift-up the vehicle.

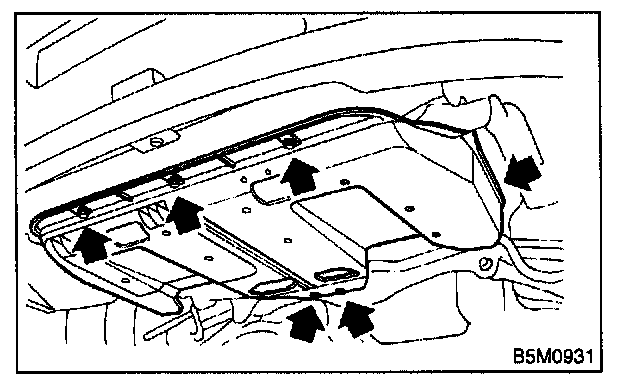

2. Loosen bolts and clips to remove under cover.






INSTALLATION

Install in the reverse order of removal.
