Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Service and Repair

Power Mirror Switch: Service and Repair

Remote Control Mirror Switch

REMOVAL

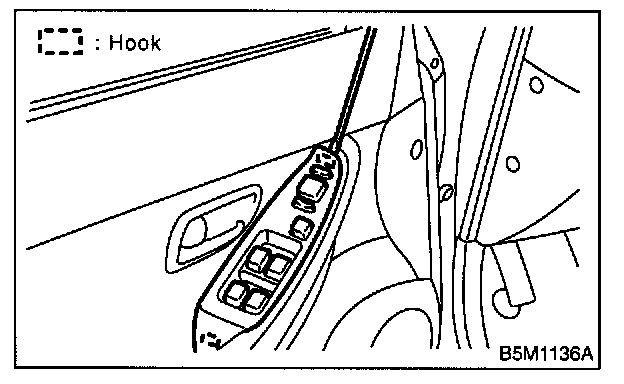

1. Remove power window main switch panel.

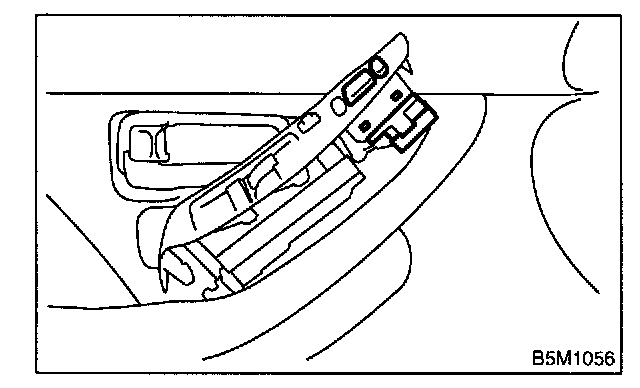

2. Remove four hook to remove remote control mirror switch.

INSTALLATION
Install in the reverse order of removal.
