Sunroof / Moonroof Panel: Testing and Inspection

1. CHECK FOR MOVEMENT OF SUNSHADE

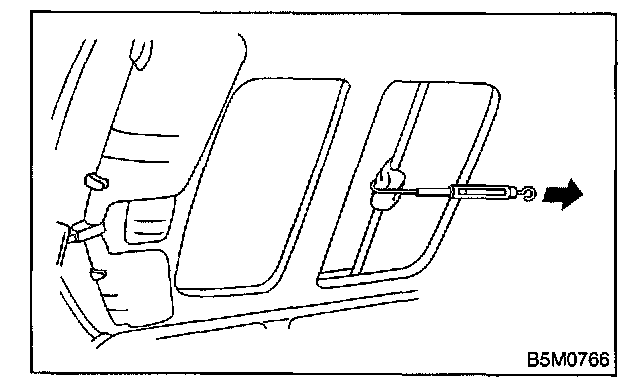

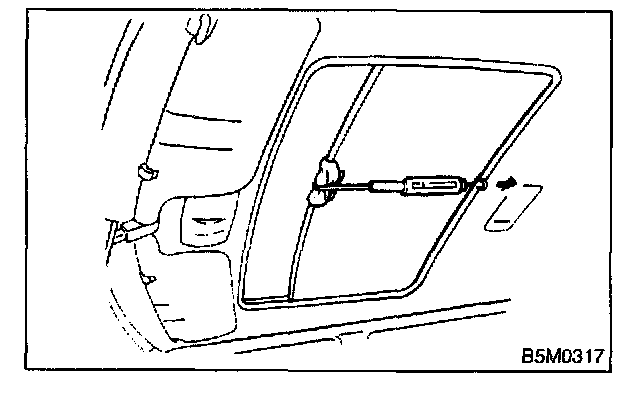

1. Place a cloth on sunshade, and attach a spring scale to sunshade edge using a cloth.

2. Pull spring scale to measure force required to move the sunshade.

Force required to move rear sunshade:
Less than 24.5 ± 4.9 N (2.5 ± 0.5 kgf, 55 ± 1.1 lb)

NOTE: Considerable force is required to start sunshade moving, so take a scale reading when it begins to move smoothly.

3. If the force required exceeds specifications, check the following points:
Sunroof lid, sunshade and guide rail assembly for improper installation.
