Paint: Application and ID
NOTE :
The
paint

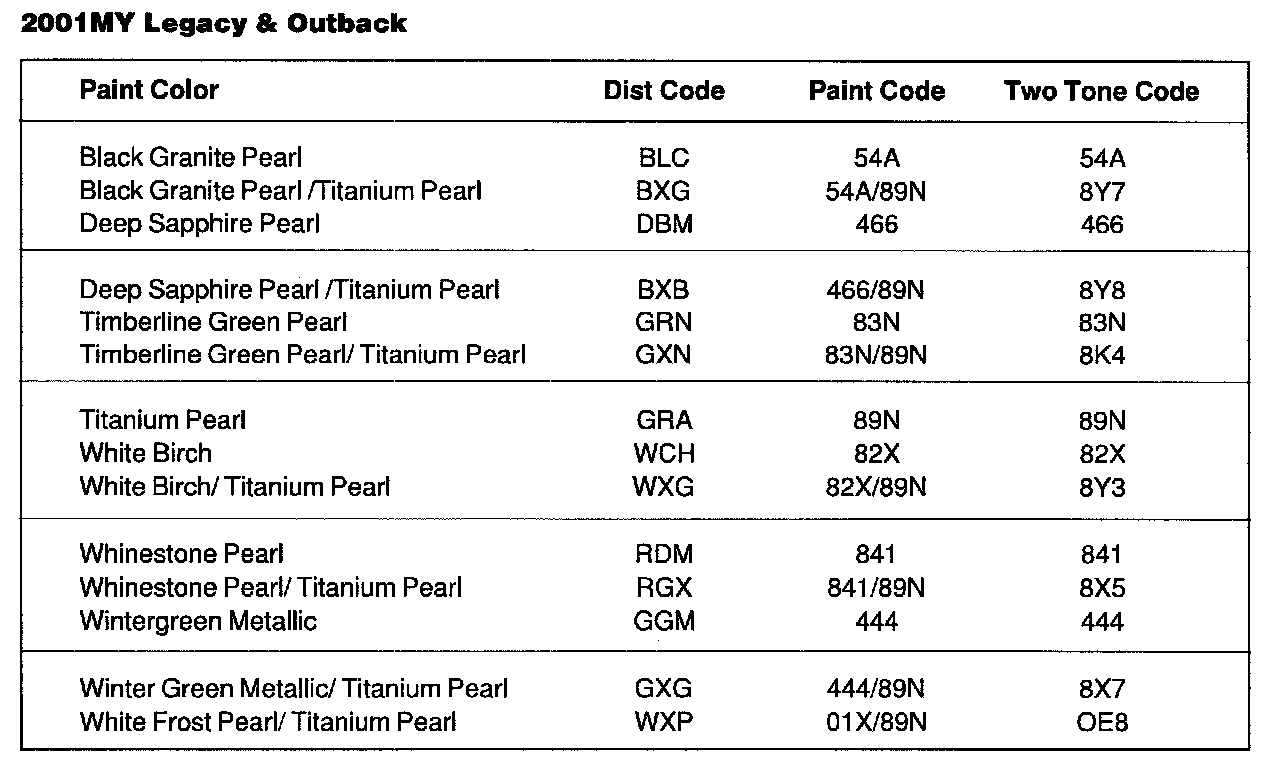

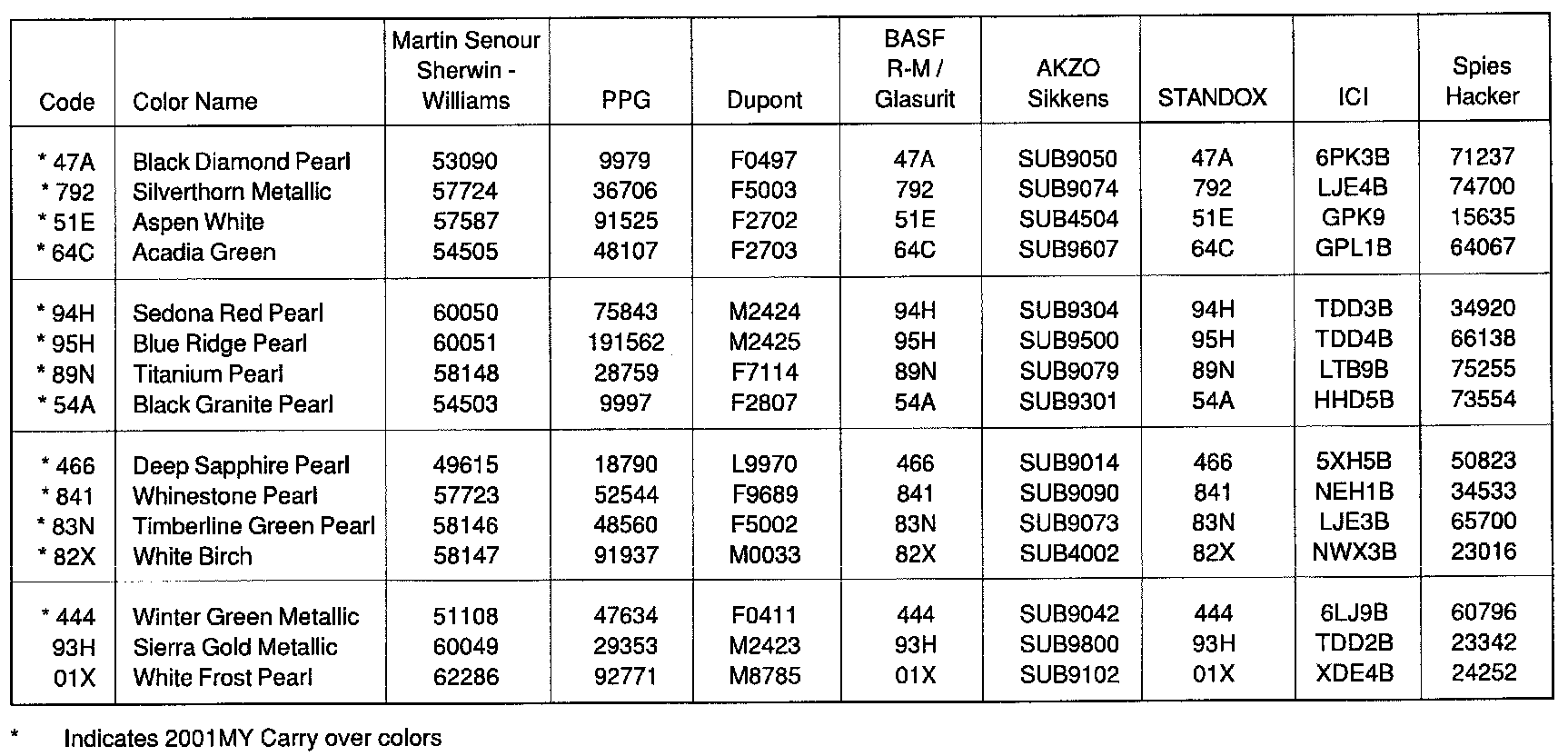

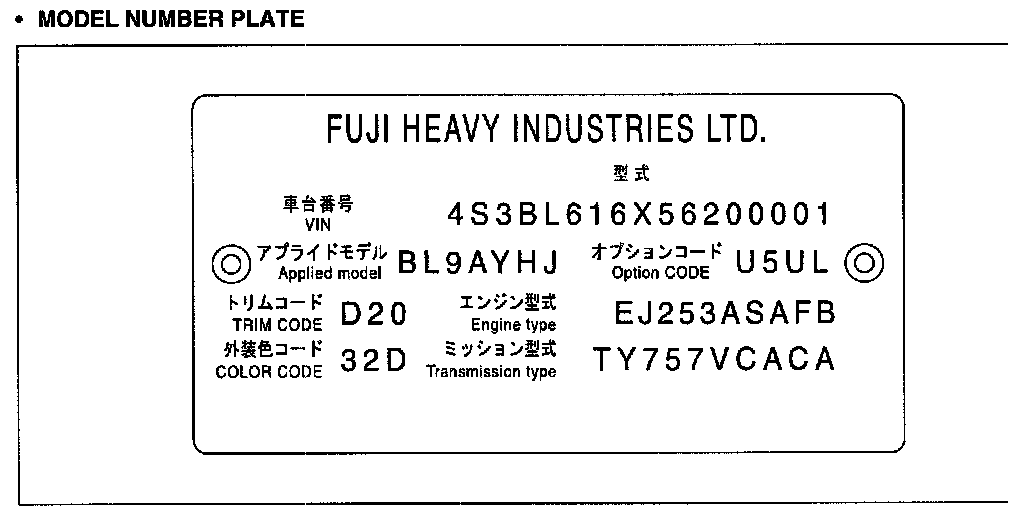

codes are found on the VIN plate located on the Left Strut Tower. The color code is depicted by a solid color or by a combined upper and lower color code.
