Lower Inner Trim

LOWER INNER TRIM

REMOVAL

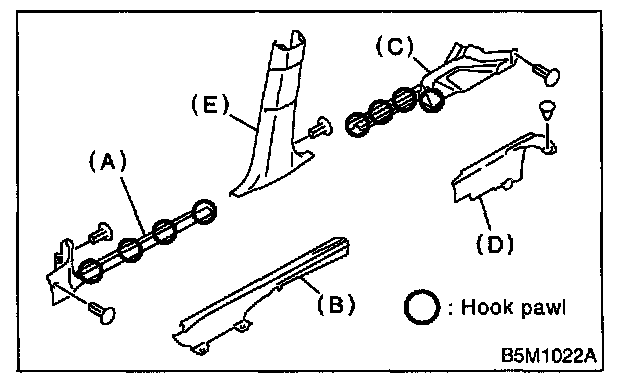

1. Remove front pillar lower trim (A).
2. Remove side sill front lower cover (B).
3. For sedan: Remove rear seat cushion, then remove side sill rear upper cover (C).
For wagon: Rise rear seat cushion, then remove side sill rear upper cover (C).
4. Remove side sill rear lower cover (D).
5. Remove center pillar lower trim (E).






INSTALLATION

Install in the reverse order of removal.

CAUTION: Be sure to securely hook pawls of inner trim panel to body flange.
