Sun Visor: Service and Repair

SUN VISOR

REMOVAL

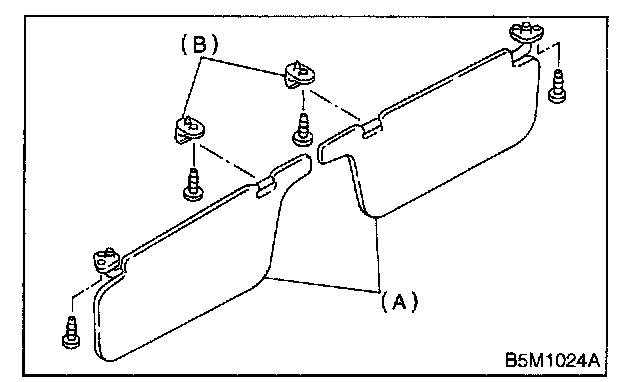

Remove mounting screws then detach sun visor (A) and hook (B).






INSTALLATION

Install in the reverse order of removal.
