Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Dashboard / Instrument Panel >> Locations

Dashboard / Instrument Panel: Locations

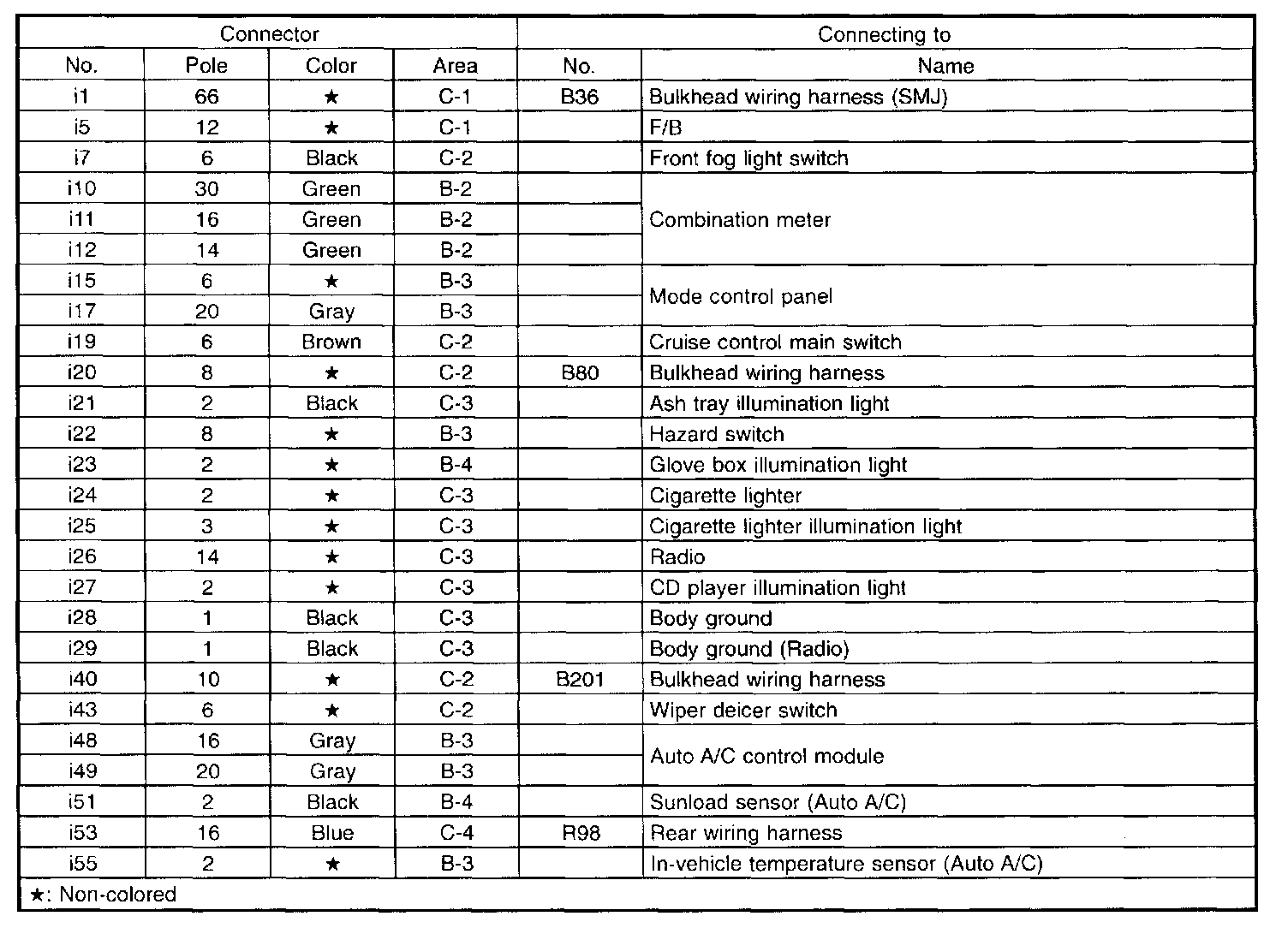

Instrument Panel Wiring Harness - List Of Items:

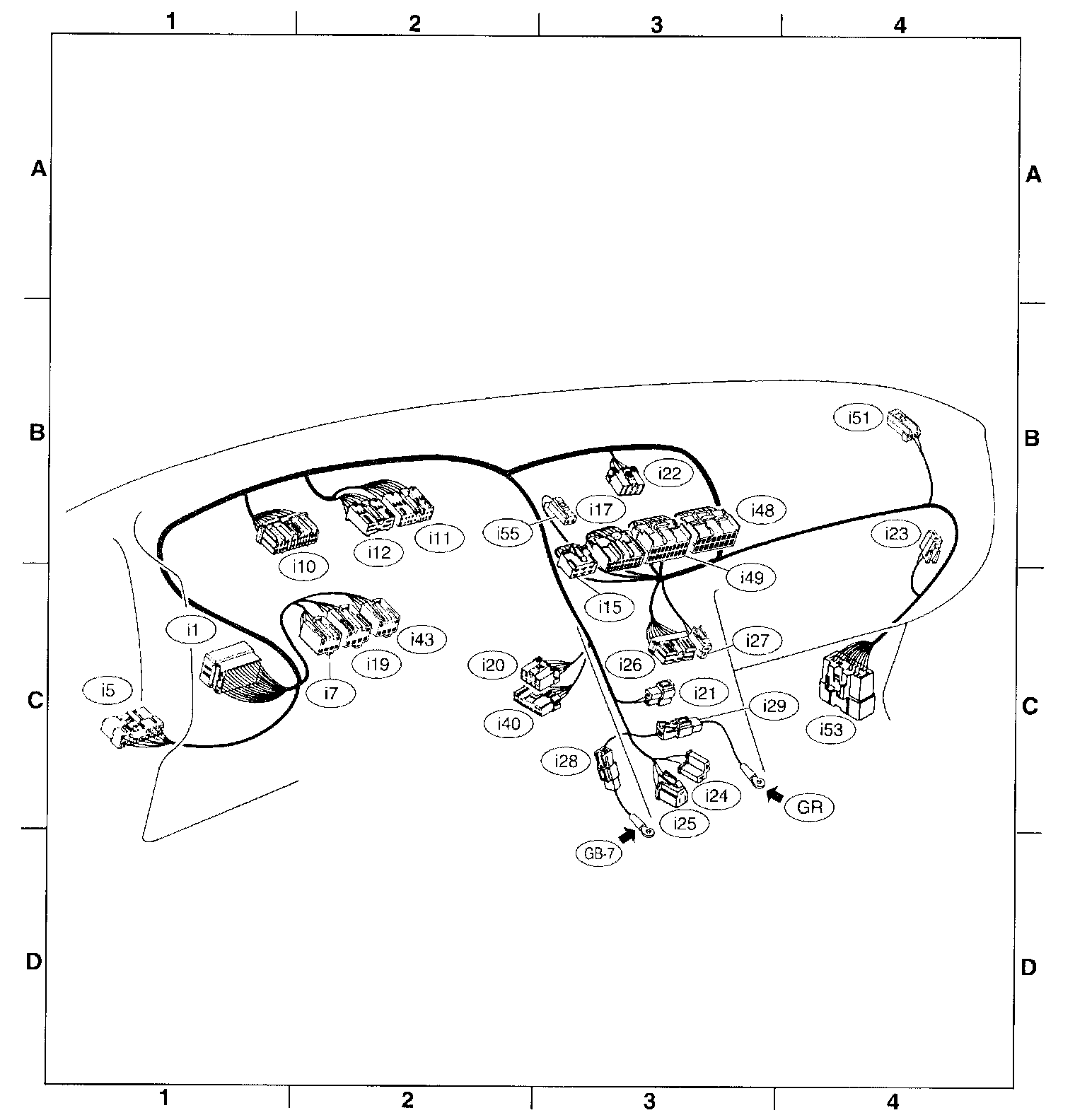

Instrument Panel Wiring Harness - Location:
