Luggage Floor Mat

LUGGAGE FLOOR MAT

REMOVAL

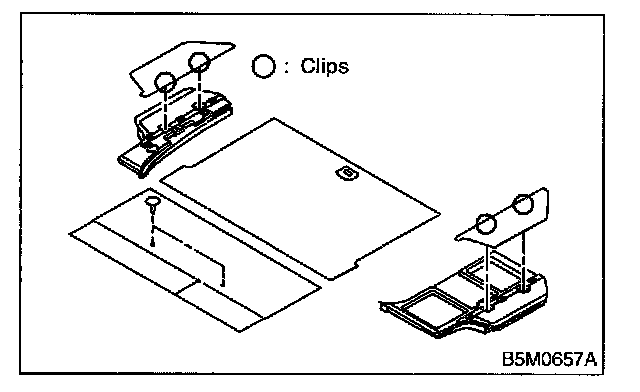

Remove clips, then detach rear floor mats and boxes.






INSTALLATION

Install in the reverse order of removal.
