Rear Gate Latch

Rear Gate Latch Assembly

REMOVAL

1. Remove the rear gate lower trim.
2. Remove the rear gate key cylinder rod.
3. Remove the nut holding the rear gate outer handle. Remove the stay.




4. Remove the three bolts.

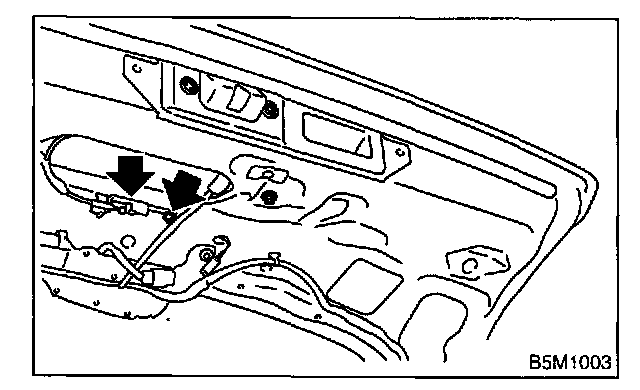

5. Remove the two connectors and pull out the latch.

INSTALLATION
Install in the reverse order of removal.
