Power Trunk / Liftgate Lock Actuator: Testing and Inspection

Rear Gate Latch Lock Actuator

1. Disconnect the door lock actuator harness connector.

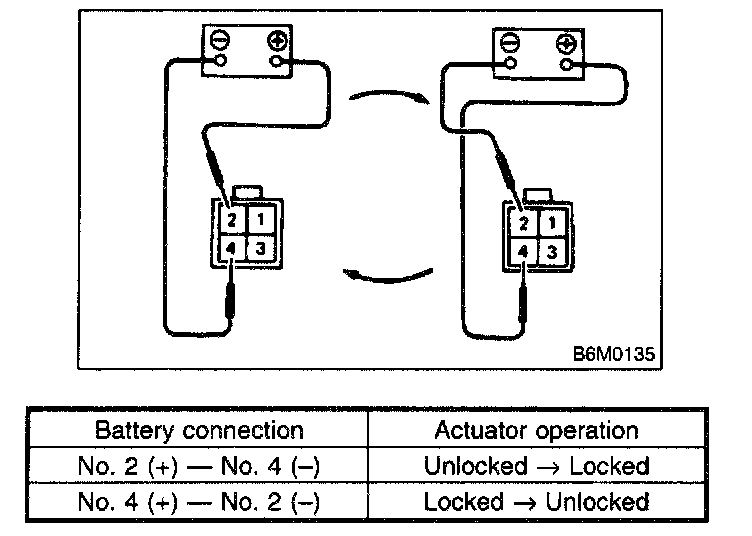

2. Connect the battery to the door lock actuator terminals.

If NG, replace the rear gate latch lock actuator.
