Fuel Door: Service and Repair

REMOVAL

FUEL FLAP OPENER
1. Remove the rear seat.
2. Remove the center pillar lower trim and side sill cover on the passenger side. Remove the rear pillar lower trim. Pull back the floor mat. Remove the clip holding the cable.

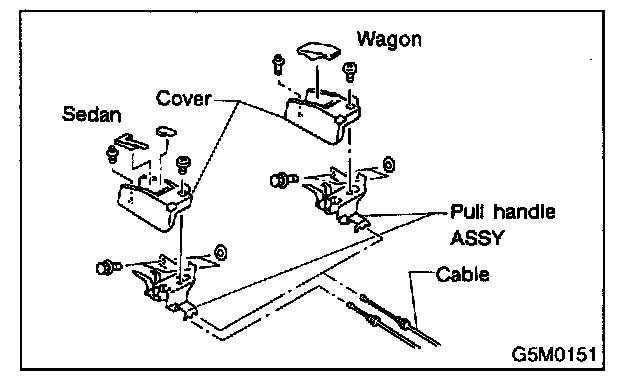

3. Remove the bolt. Remove the opener pull handle.
4. Remove the cable from the opener pull handle.
5. Remove the right rear quarter trim.

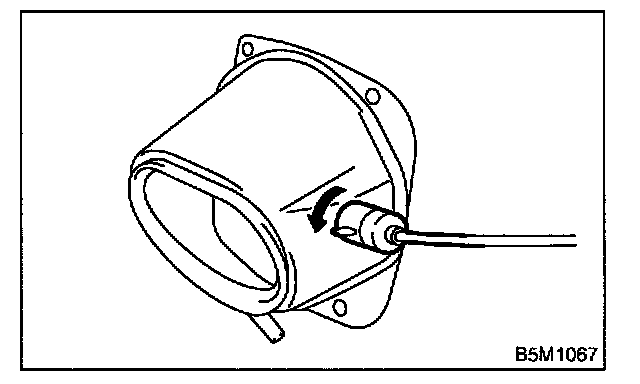

6. Rotate the fuel lock inside the quarter panel to left and remove.

INSTALLATION

FUEL FLAP OPENER
Install in the reverse order of removal.
