Rear Door Latch: Service and Repair

Rear Door Latch Assembly

REMOVAL

1. Remove the rear door trim.
2. Remove the sealing cover.
3. Remove the rear inner remote.

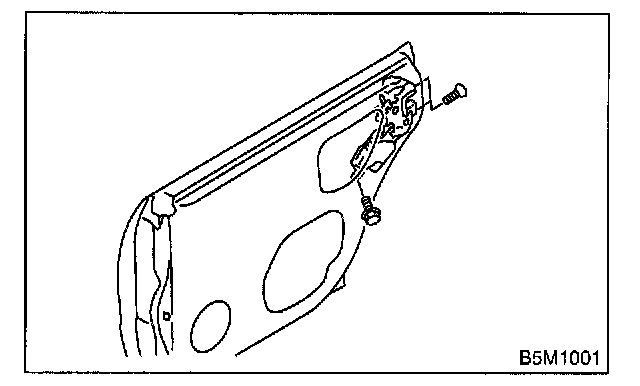

4. Remove the three screws and bolt.
5. Disconnect the connector. Remove the rear door latch assembly.

INSTALLATION
Install in the reverse order of removal.
