Front Door Window Glass: Service and Repair

Front Door Glass

REMOVAL

1. Remove door trim.
2. Remove sealing cover.

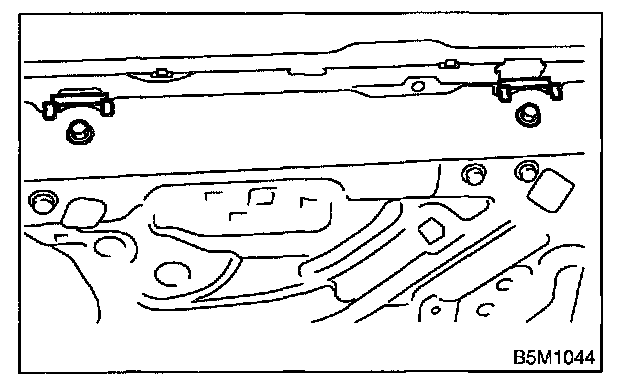

3. Remove outer weatherstrip.




4. Remove inner stabilizer.

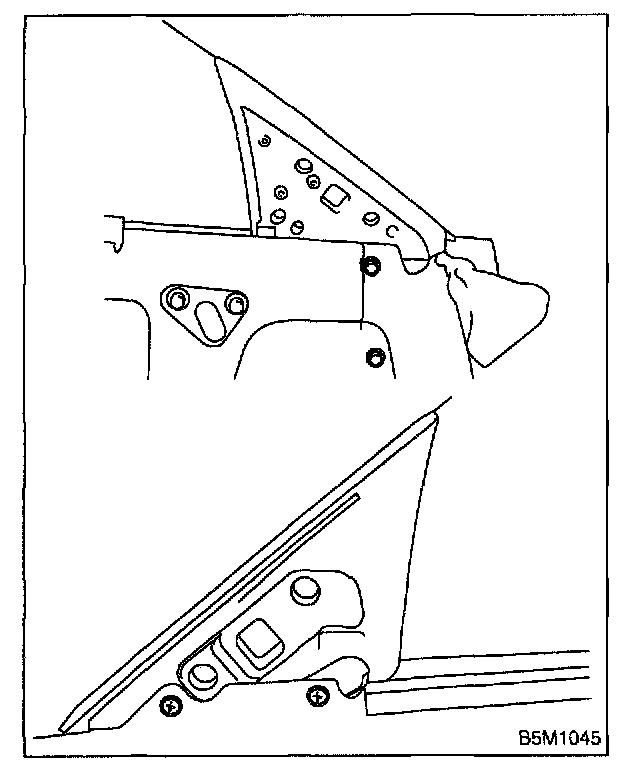

5. Remove outer mirror.




6. Remove gusset.

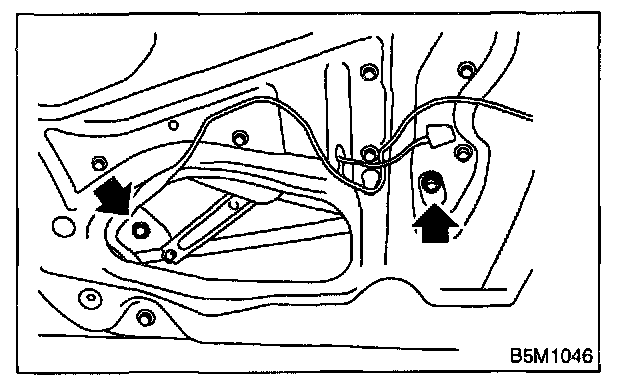

7. Operate the power window switch to move glass to the position shown in the figure, and then remove the two nuts from service holes.

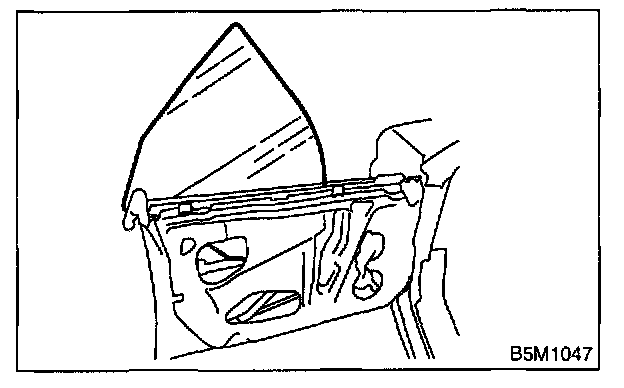

8. Take out glass door panel upward.

CAUTION:
- Do not turn regulator in the closing direction after removal of the glass. Otherwise gear may be disengaged.
- Avoid impact and damage to the glass.

INSTALLATION

1. Install in the reverse order of removal.

CAUTION: Make sure that glass stay is placed securely in sash.

2. Adjust front door glass.
