Front Door Latch: Service and Repair

Front Door Latch Assembly

REMOVAL

1. Remove the front door trim.
2. Remove the sealing cover.
3. Remove the front inner remote.

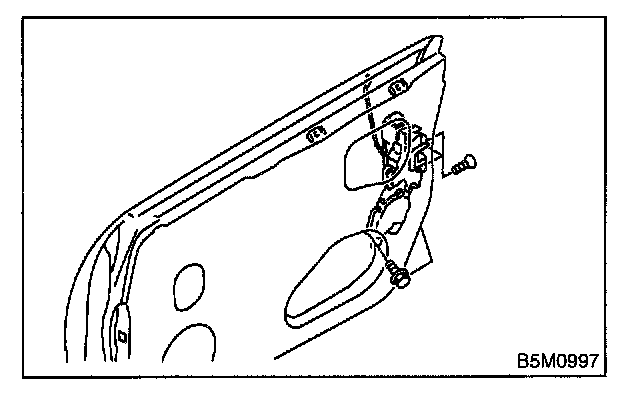

4. Remove the three screws and bolt.
5. Disconnect the connector. Remove the front door latch assembly.

INSTALLATION
Install in the reverse order of removal.
