Heater Vent Duct

Heater Duct

REMOVAL

1. Remove instrument panel.

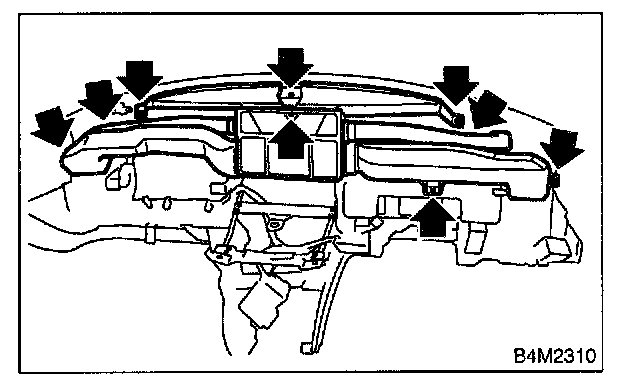

2. Remove nine screws.




3. Remove heater vent duct.

INSTALLATION
Install in the reverse order of removal.
