Woofer

REMOVAL

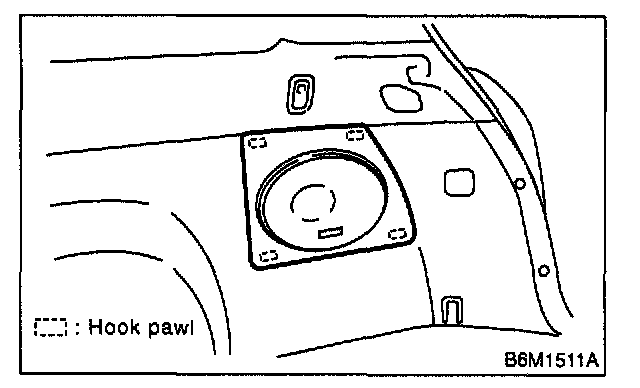

1. Remove trim of woofer.

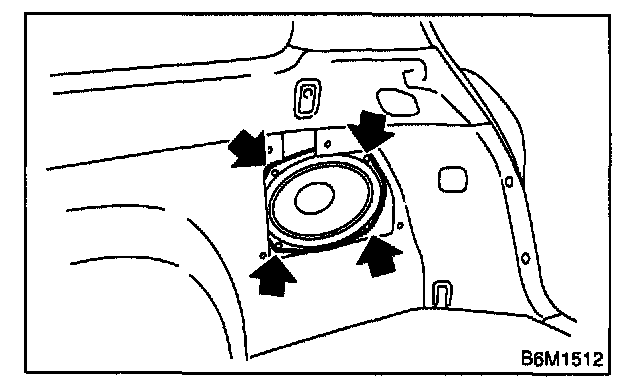

2. Remove woofer mounting screws.
3. Disconnect harness connector, and then remove woofer.

INSTALLATION
Install in the reverse order of removal.
