Amplifier: Service and Repair

REMOVAL

1. Remove passenger's seat.
2. Disconnect harness connector.

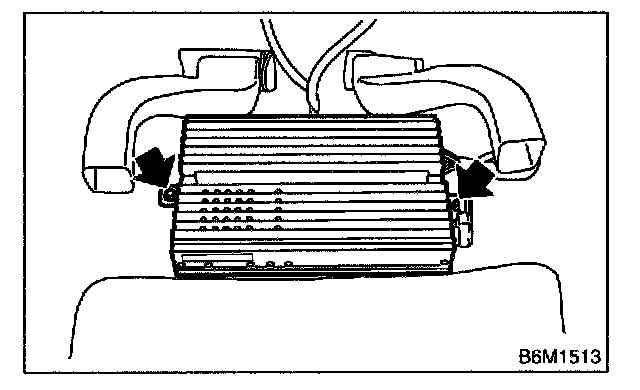

3. Remove mounting nuts, and then detach speaker amplifier.

INSTALLATION
Install in the reverse order of removal.
