P1712

DTC P1712 - ENGINE TORQUE CONTROL SIGNAL 2 CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Excessive shift shock

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

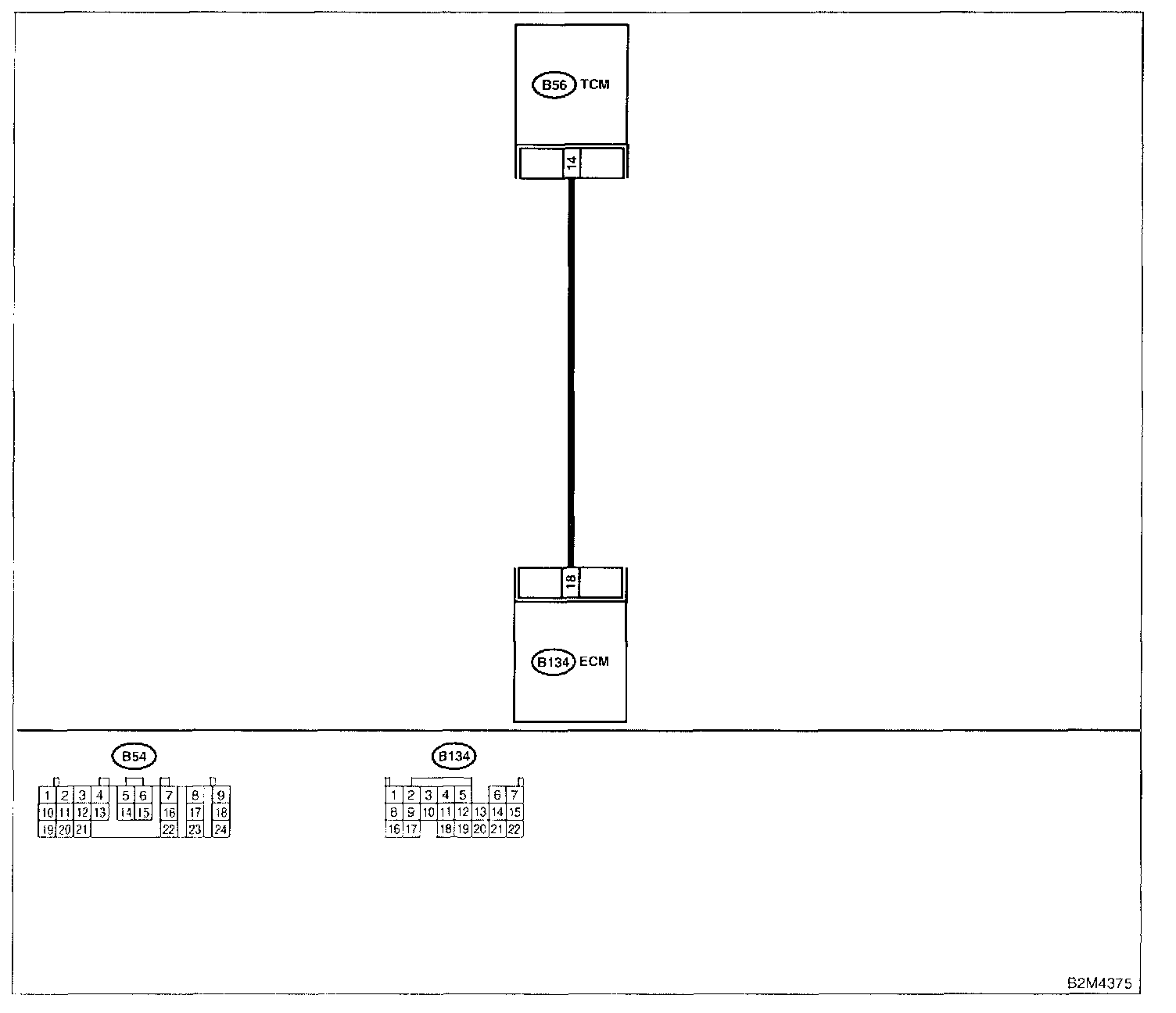

Wiring Diagram:

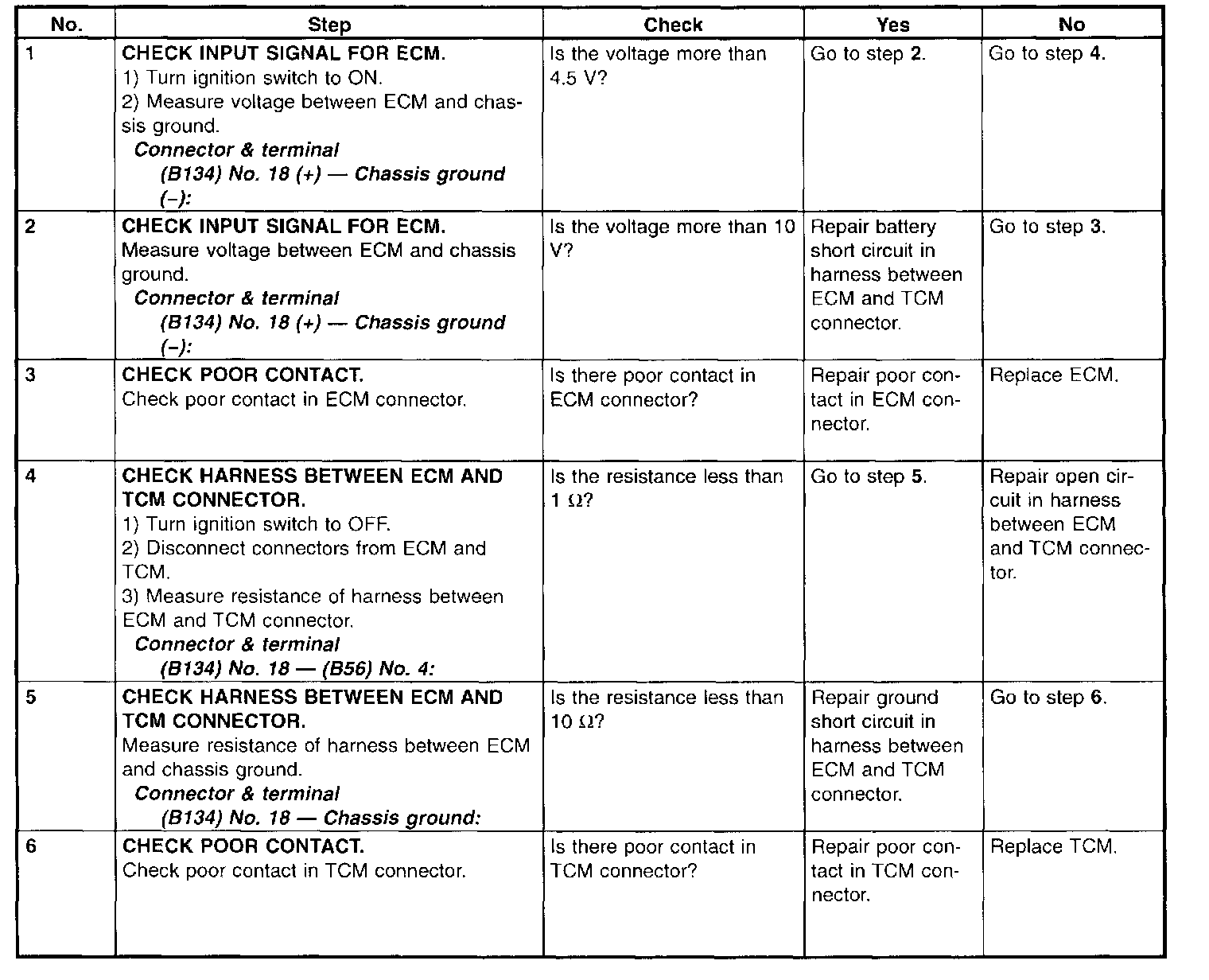

Step 1 - 6:

WIRING DIAGRAM
