P1699

DTC P1699- ENGINE TORQUE CONTROL CUT SIGNAL CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

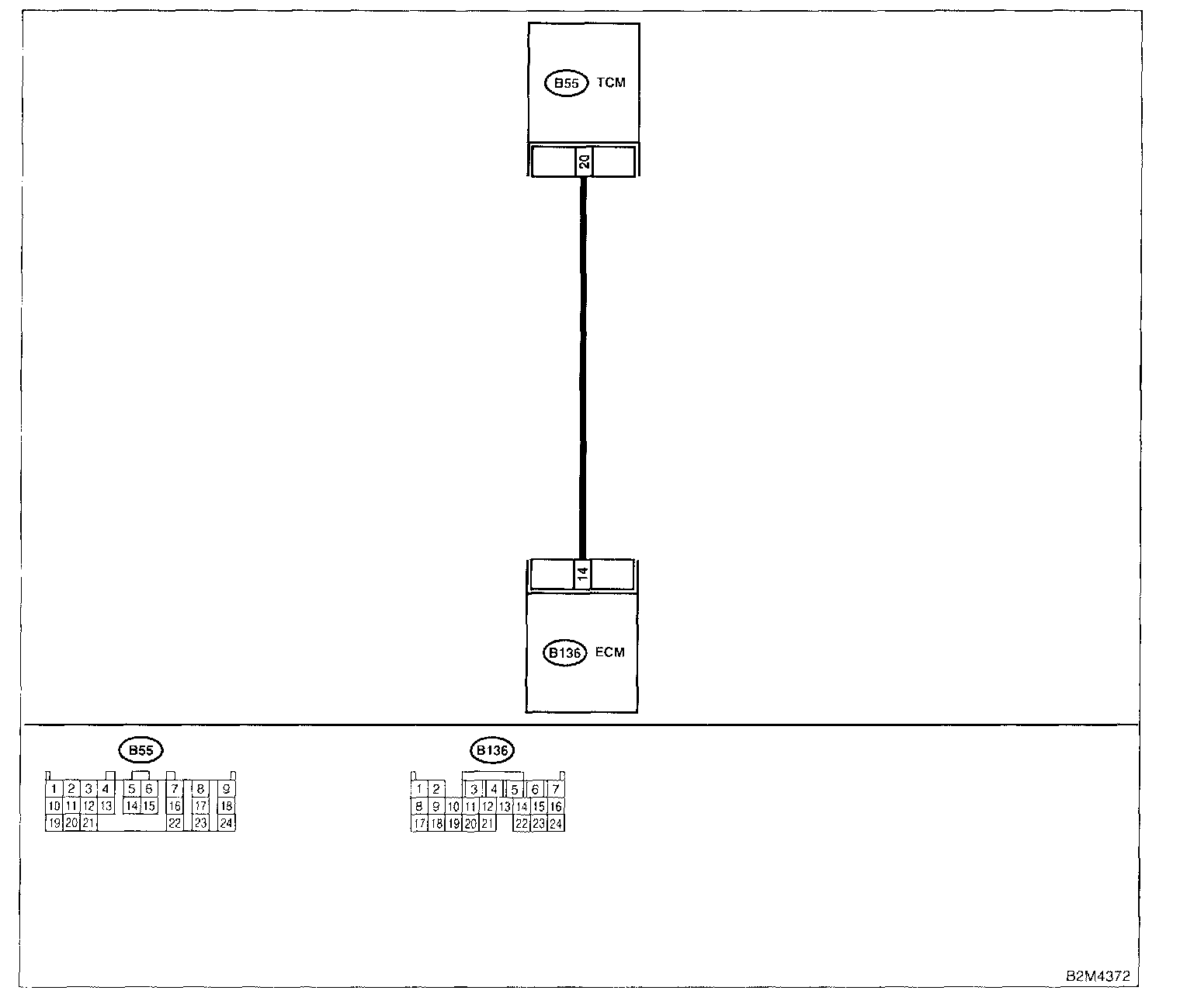

Wiring Diagram:

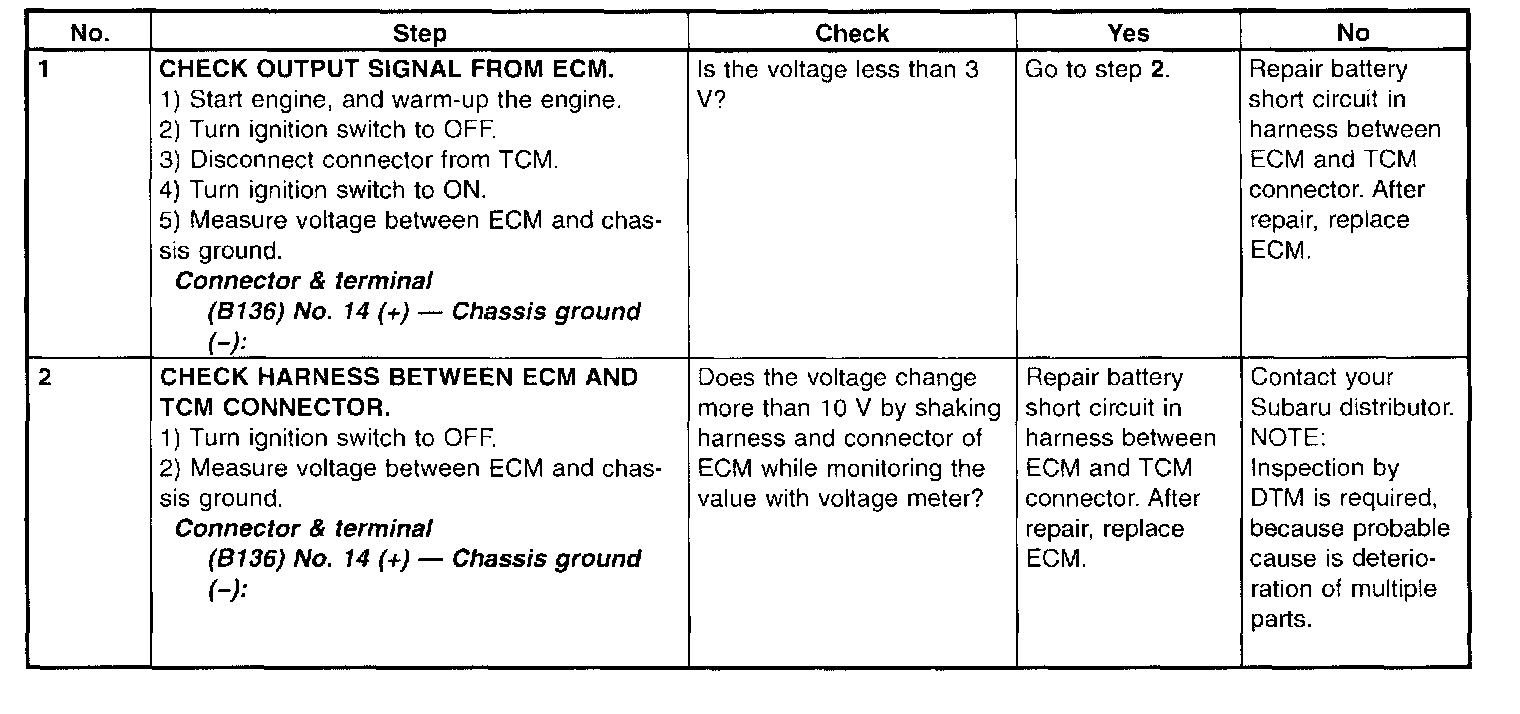

Step 1 - 2:

WIRING DIAGRAM
