P1698

DTC P1698 - ENGINE TORQUE CONTROL CUT SIGNAL CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

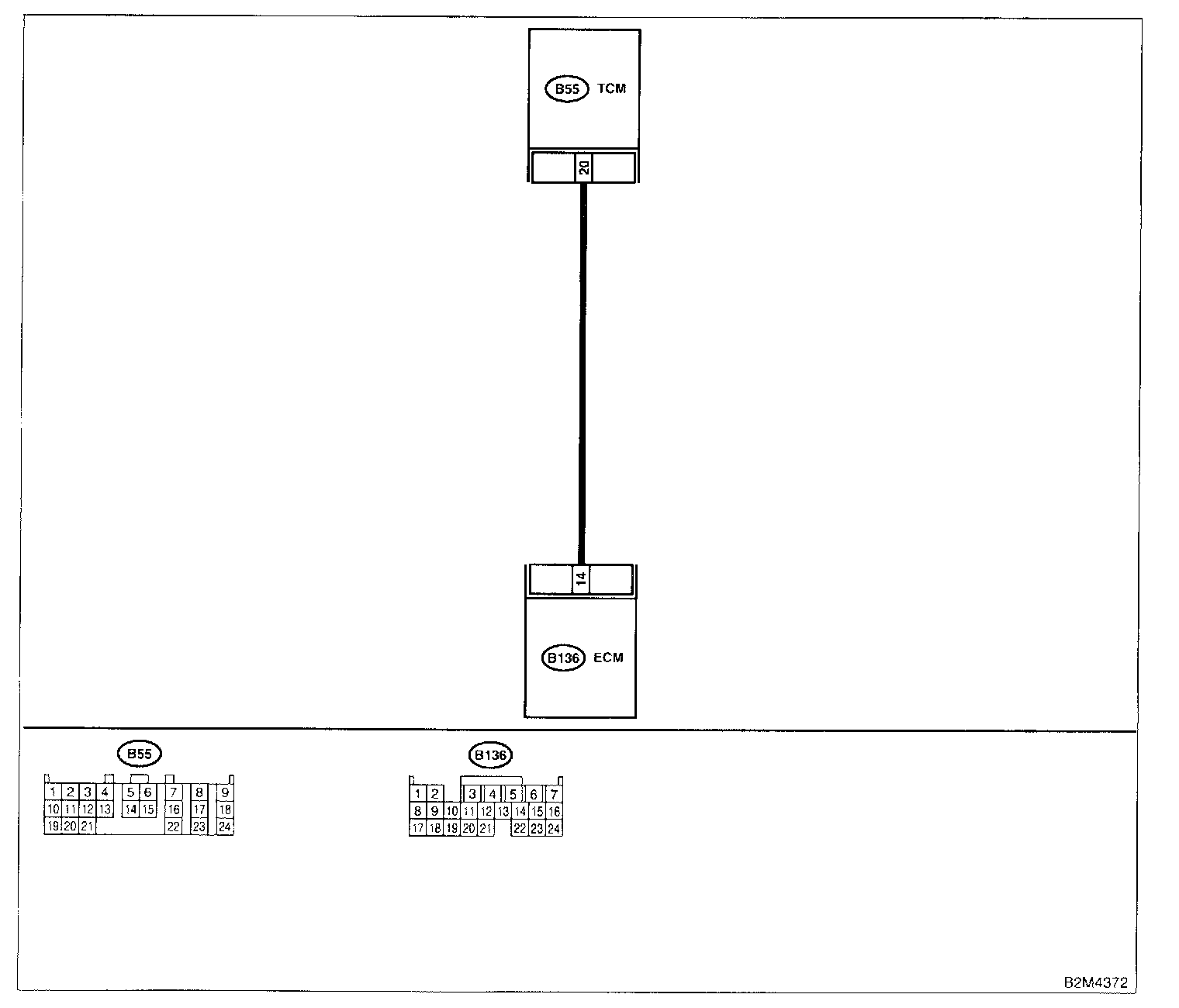

Wiring Diagram:

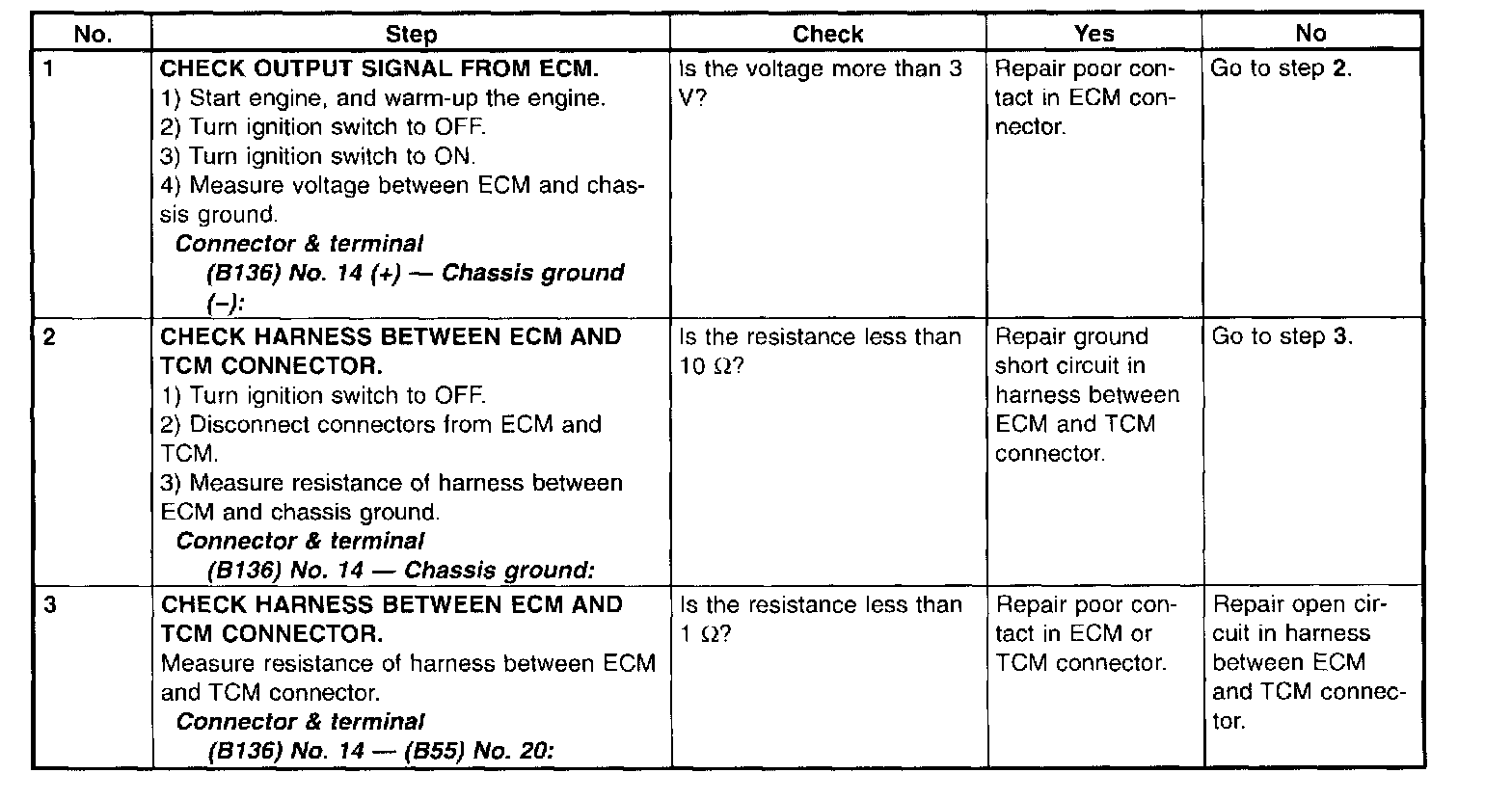

Step 1 - 3:

WIRING DIAGRAM
