P1594

DTC P1594 - AUTOMATIC TRANSMISSION DIAGNOSIS INPUT SIGNAL CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

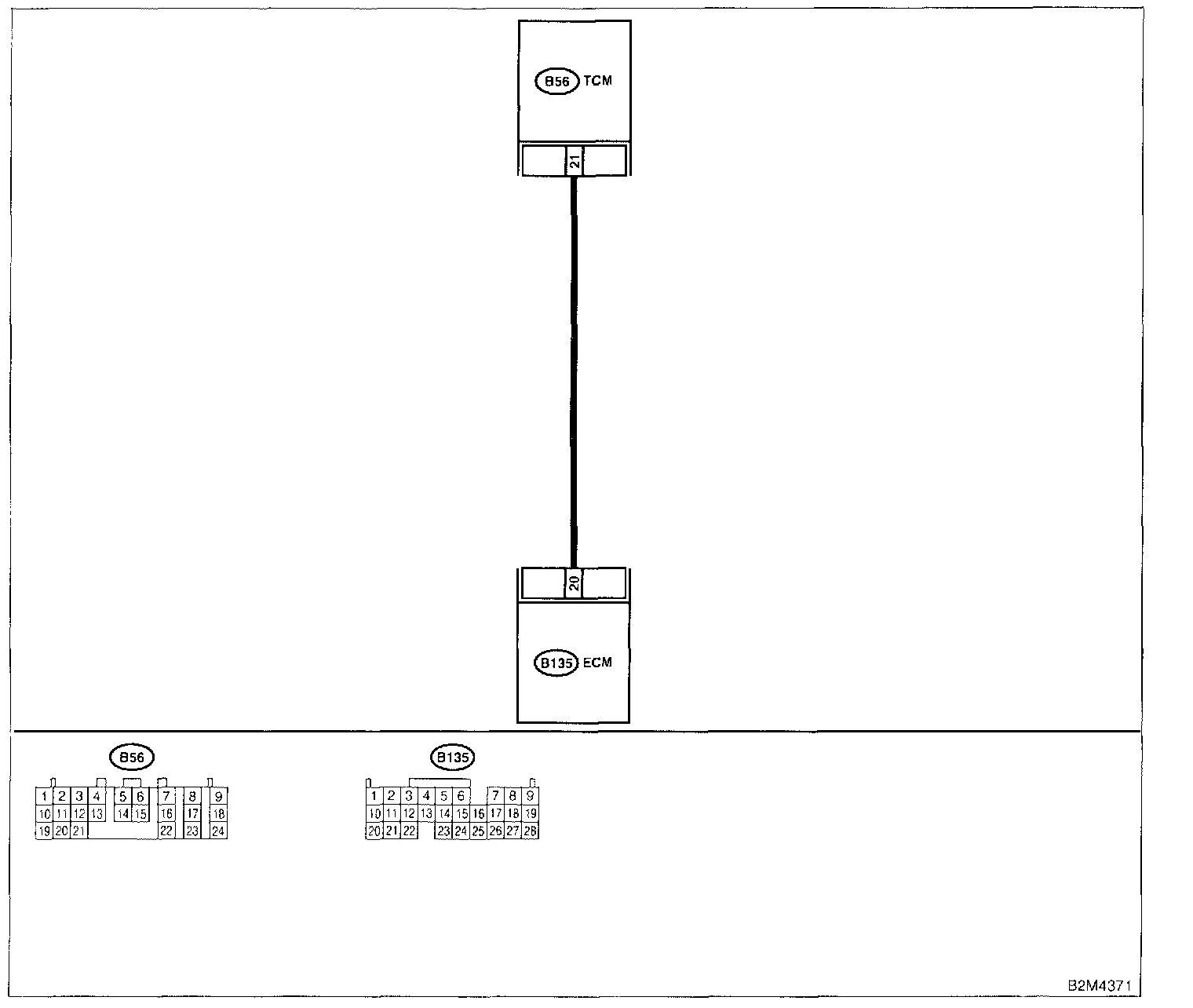

Wiring Diagram:

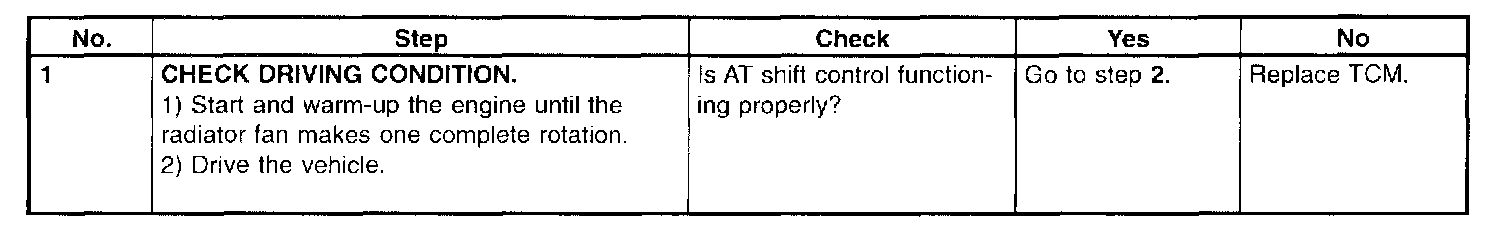

Step 1:

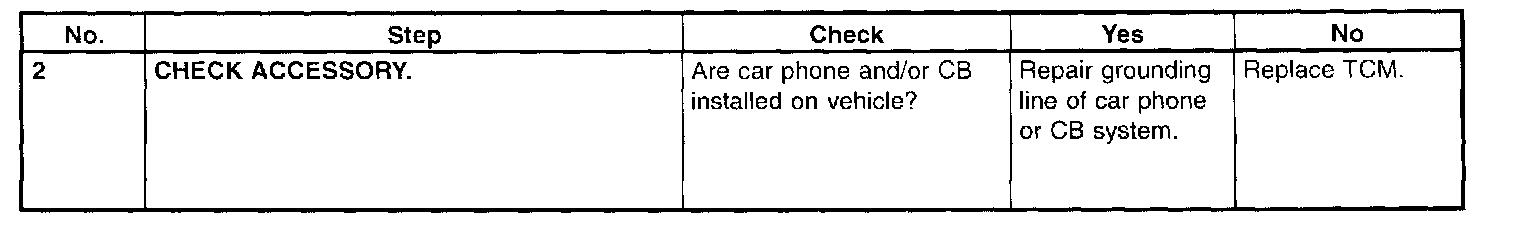

Step 2:

WIRING DIAGRAM
