P1591

This information has been updated by TSB 18-68-01 dated 02/15/2001


DTC P1591 - NEUTRAL POSITION SWITCH CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

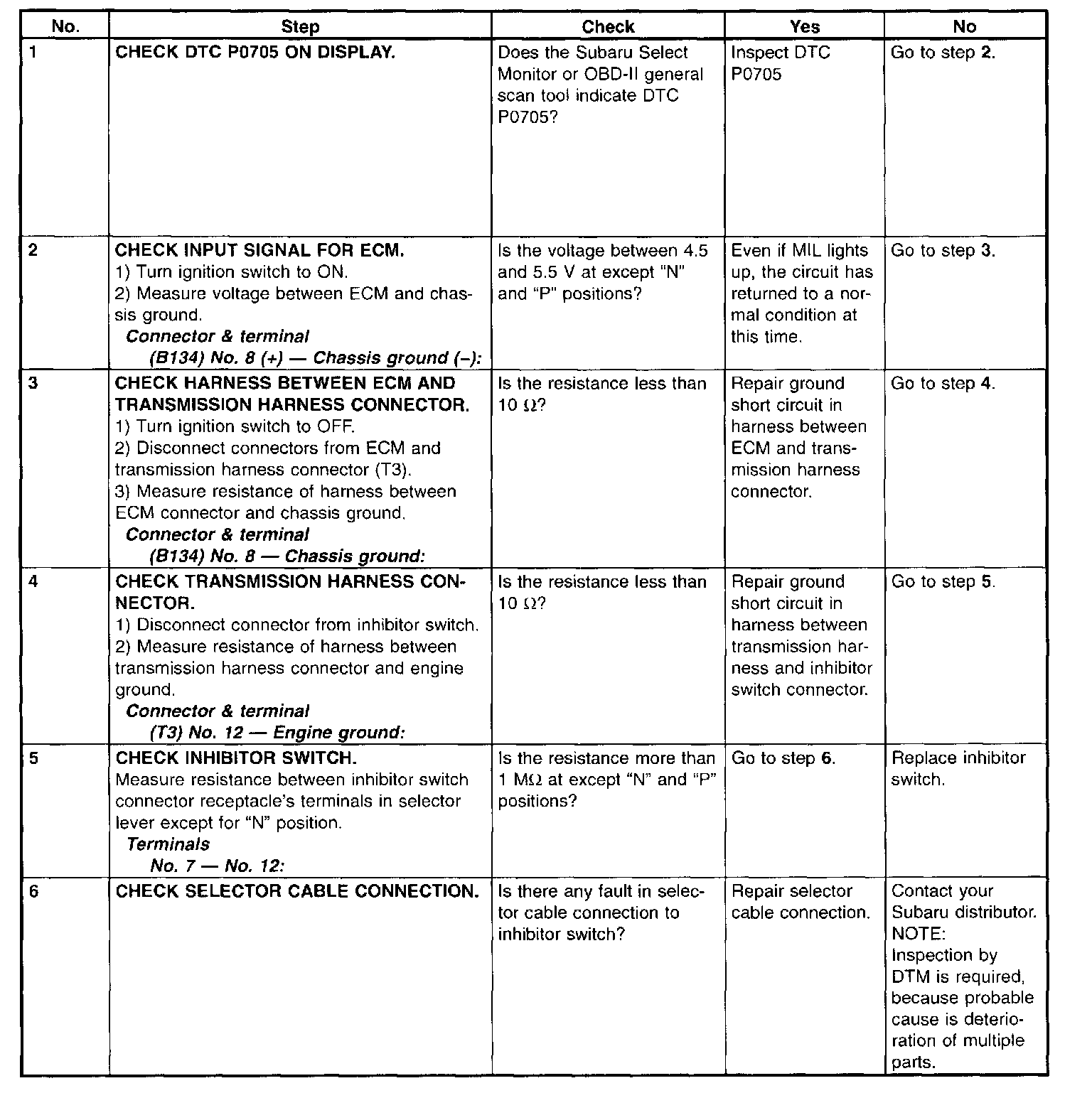

Step 1 - 6:

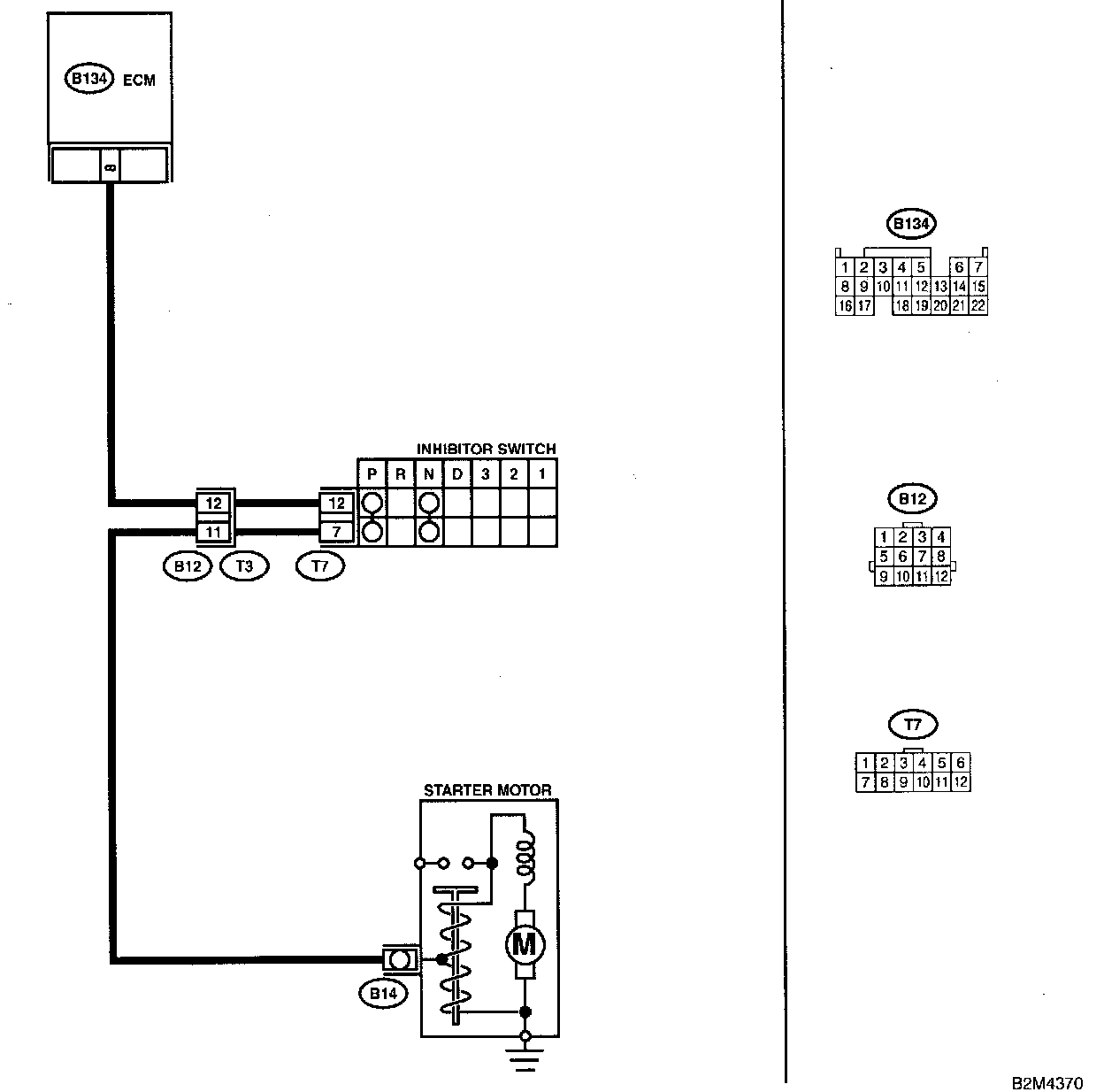

WIRING DIAGRAM
