P1560

DTC P1560 - BACK-UP VOLTAGE CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

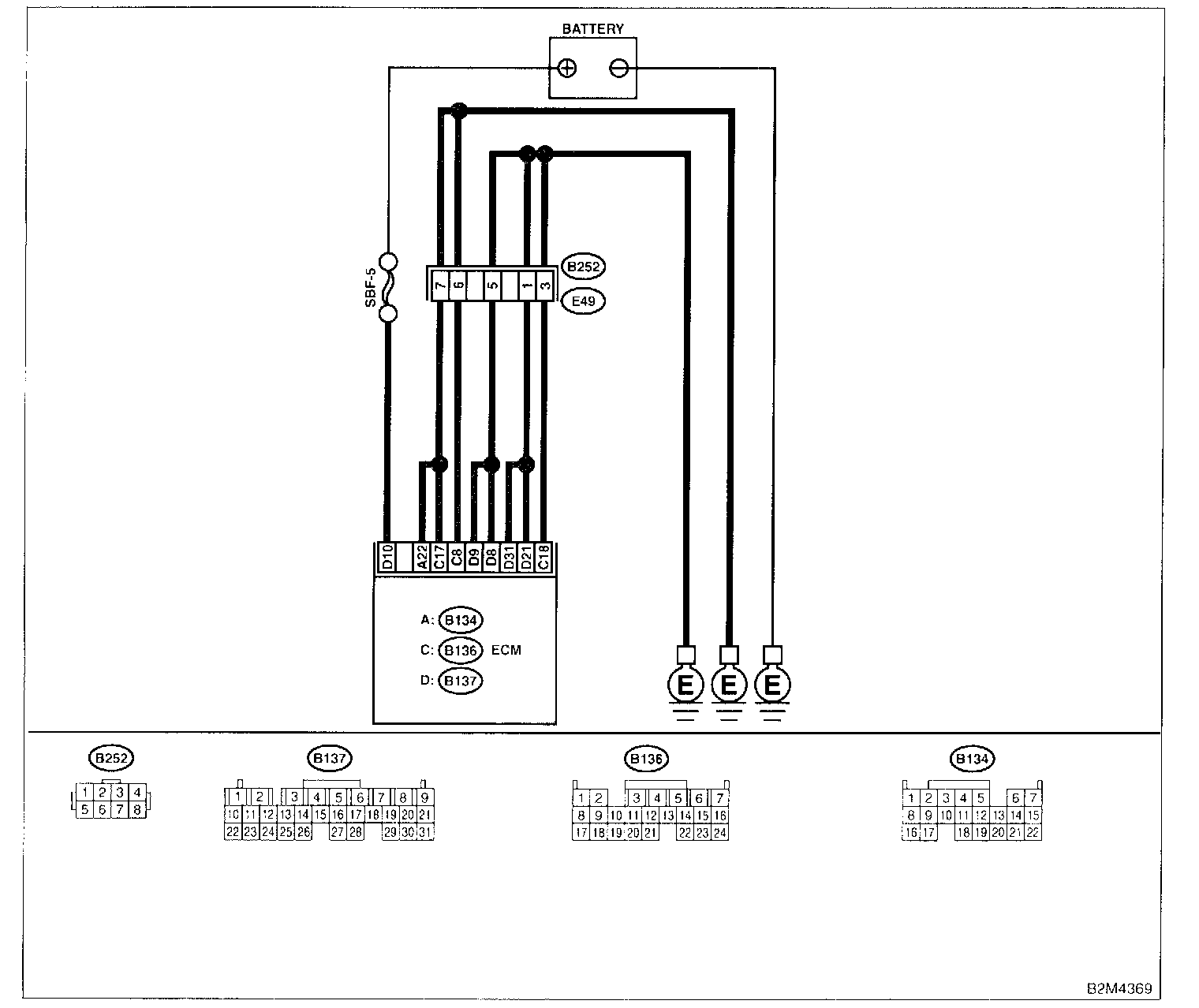

Wiring Diagram:

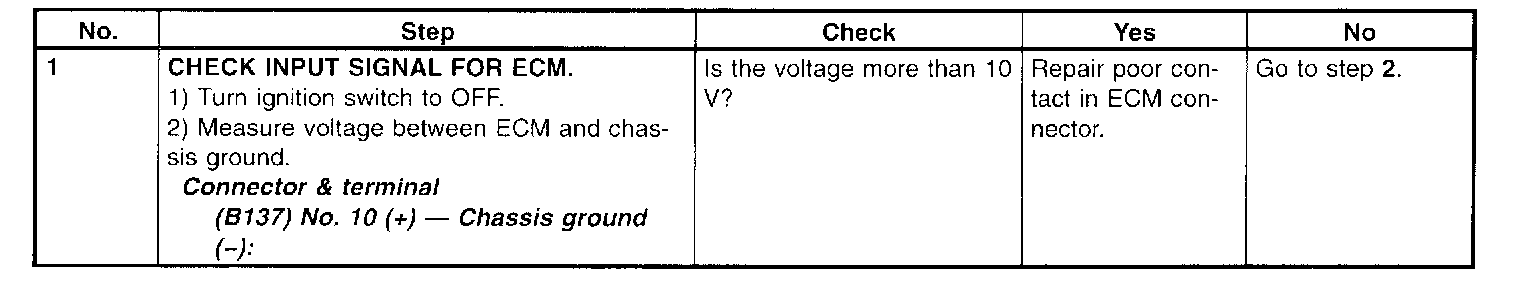

Step 1:

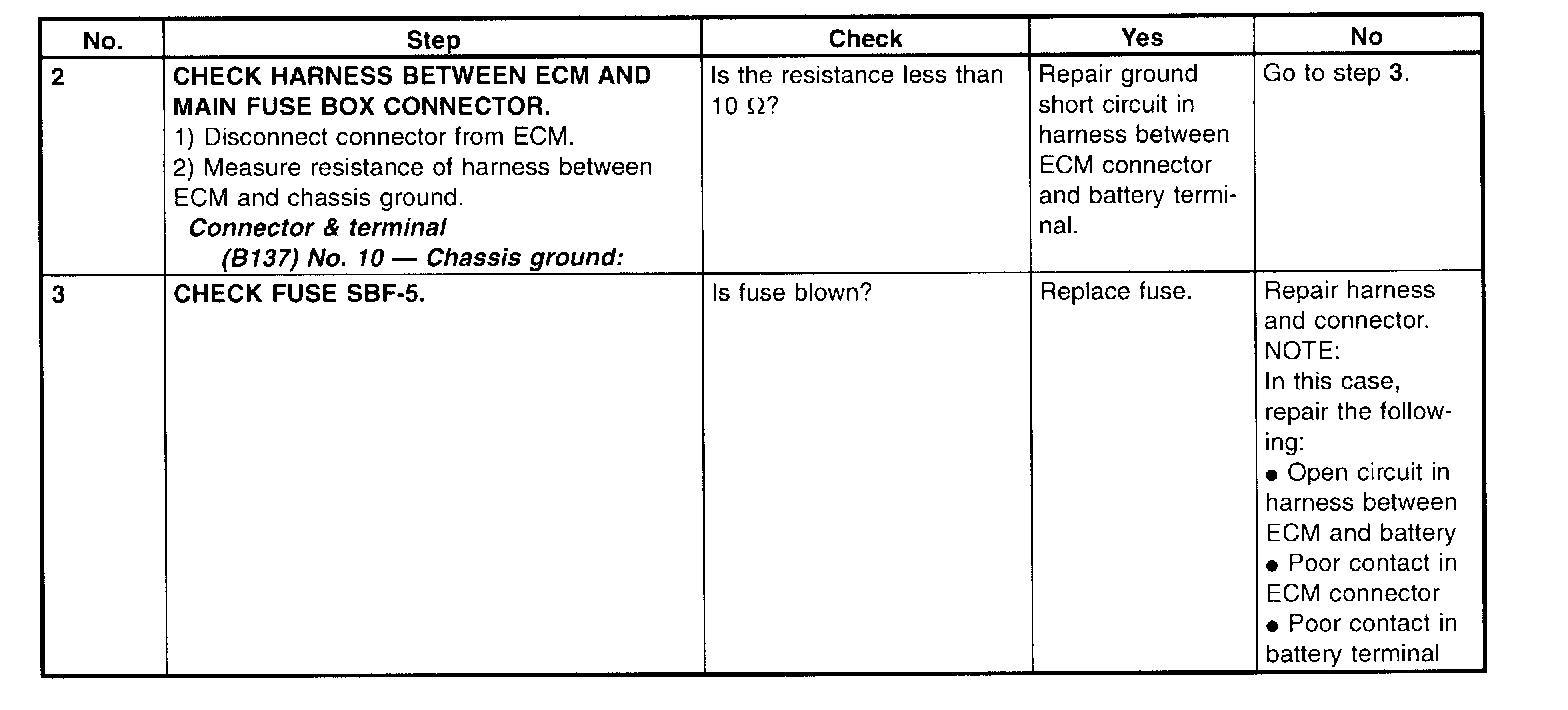

Step 2 - 3:

WIRING DIAGRAM
