P1420

DTC P1420 - FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

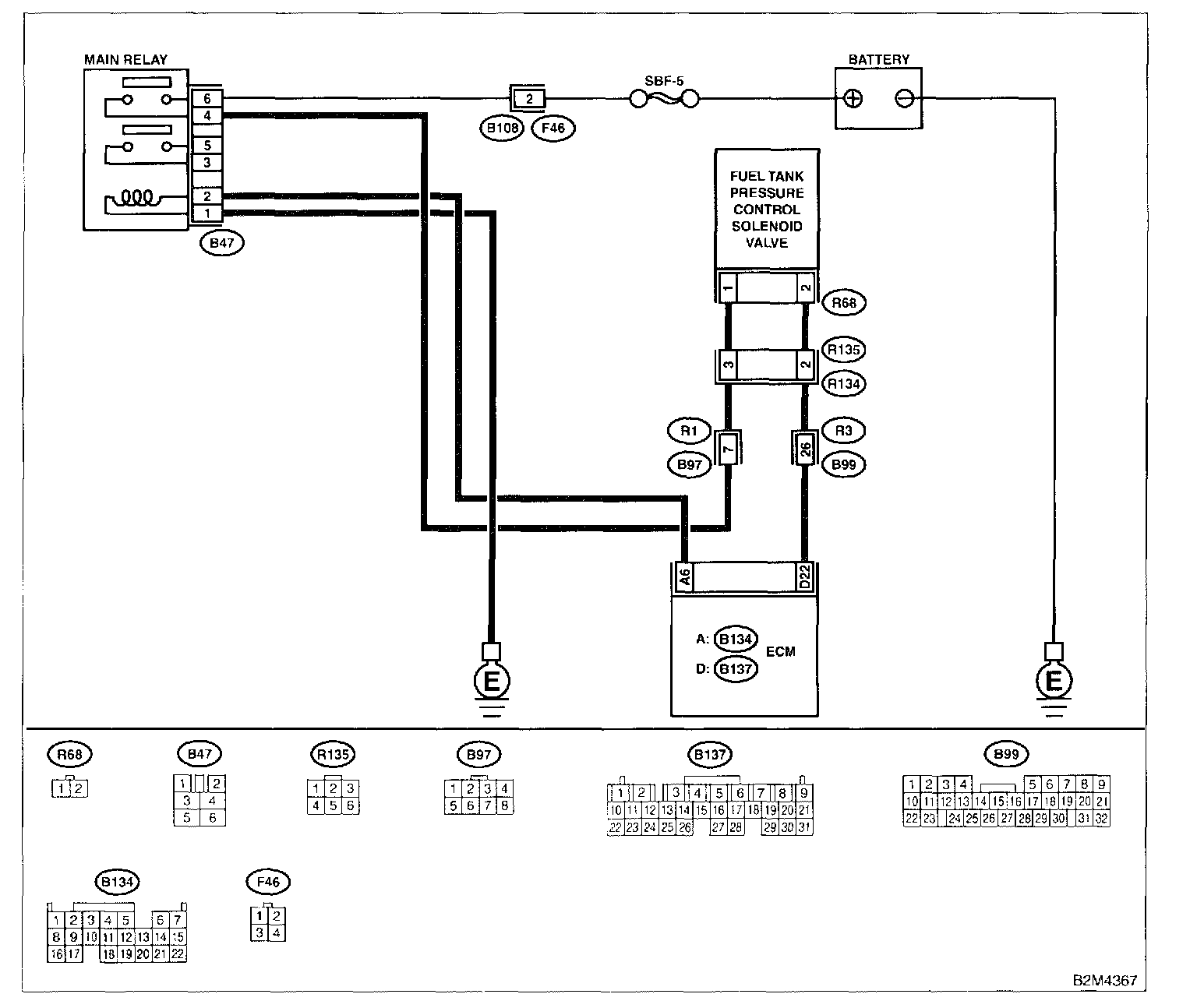

Wiring Diagram:

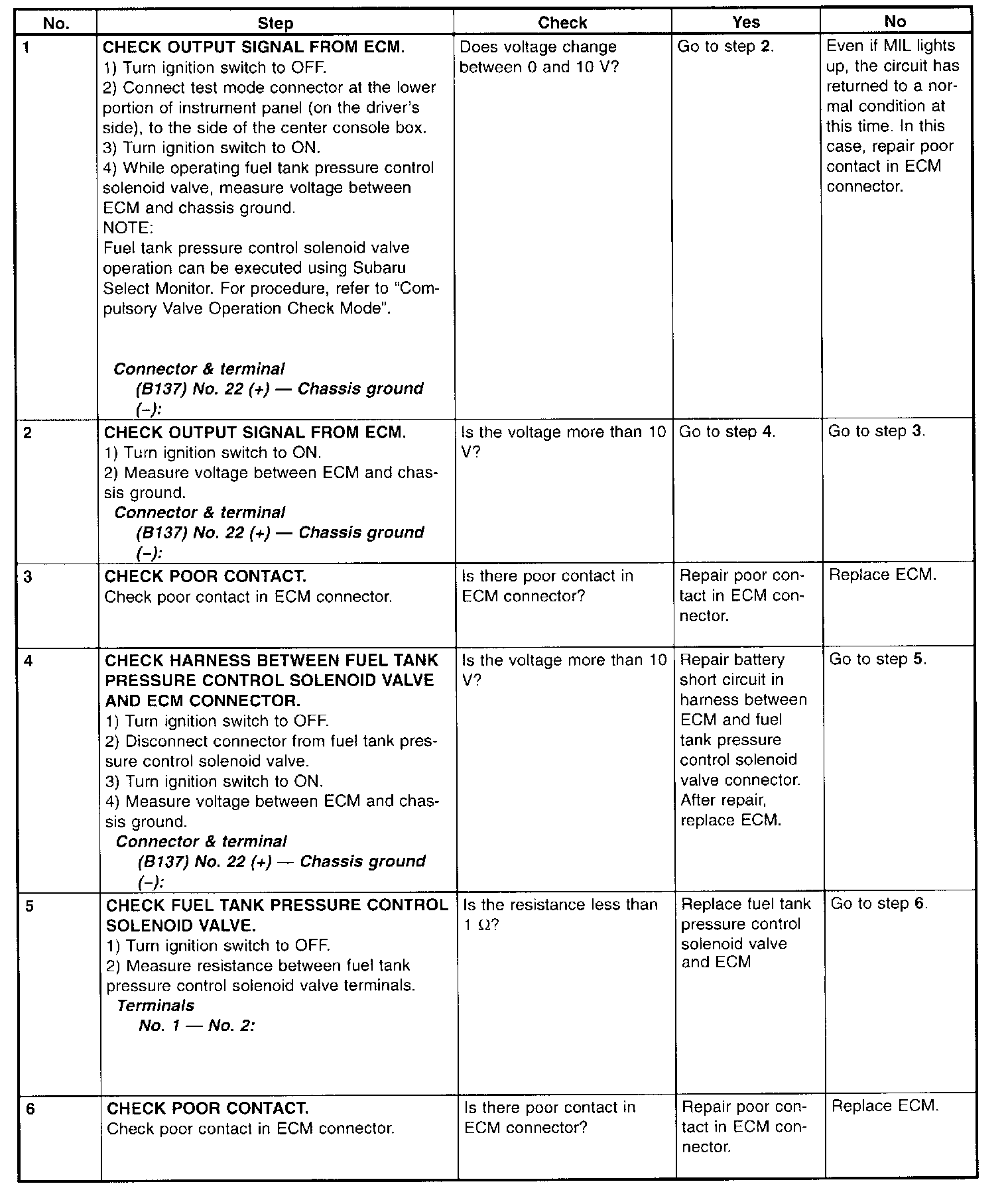

Step 1 - 6:

WIRING DIAGRAM
