P1142

DTC P1142 - THROTTLE POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (LOW INPUT)

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

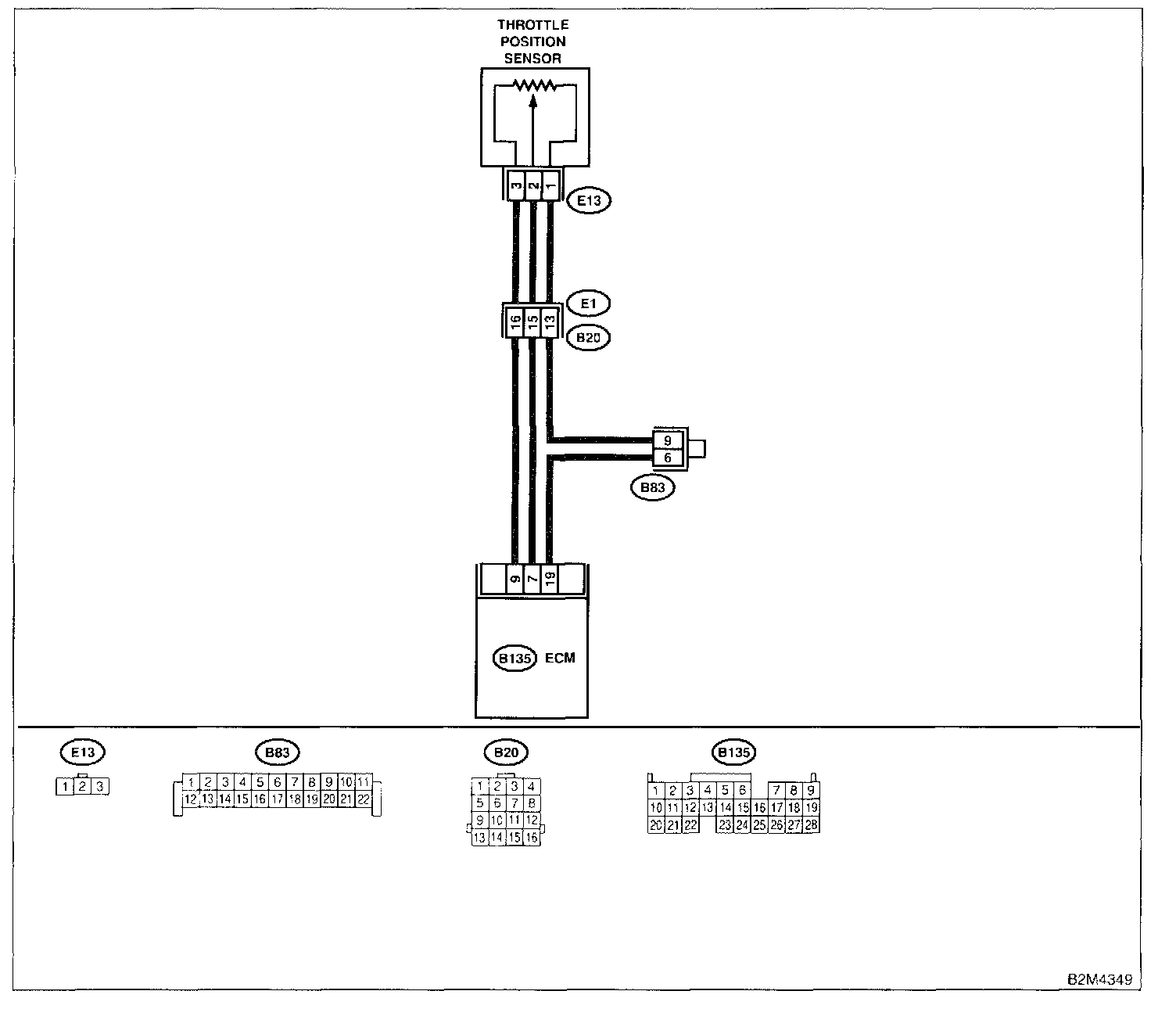

Wiring Diagram:

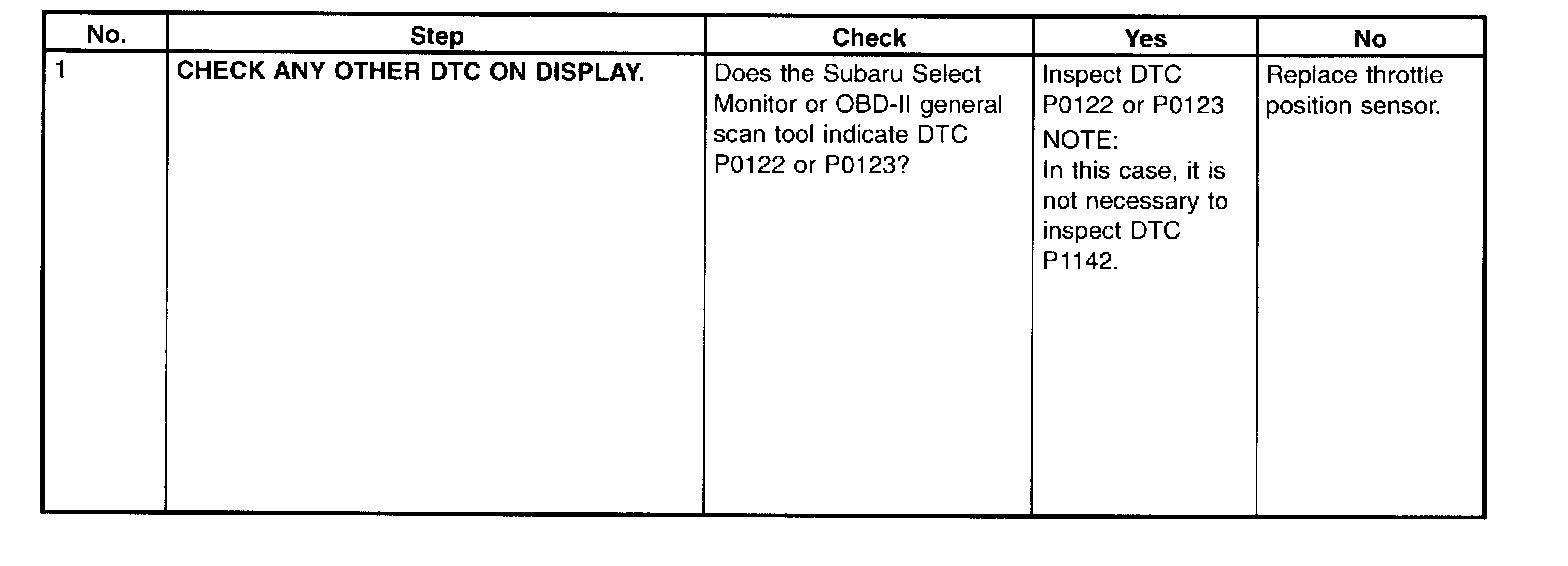

Step 1:

WIRING DIAGRAM
