P1134

DTC P1134 - FRONT OXYGEN (A/F) SENSOR MICRO-COMPUTER PROBLEM

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

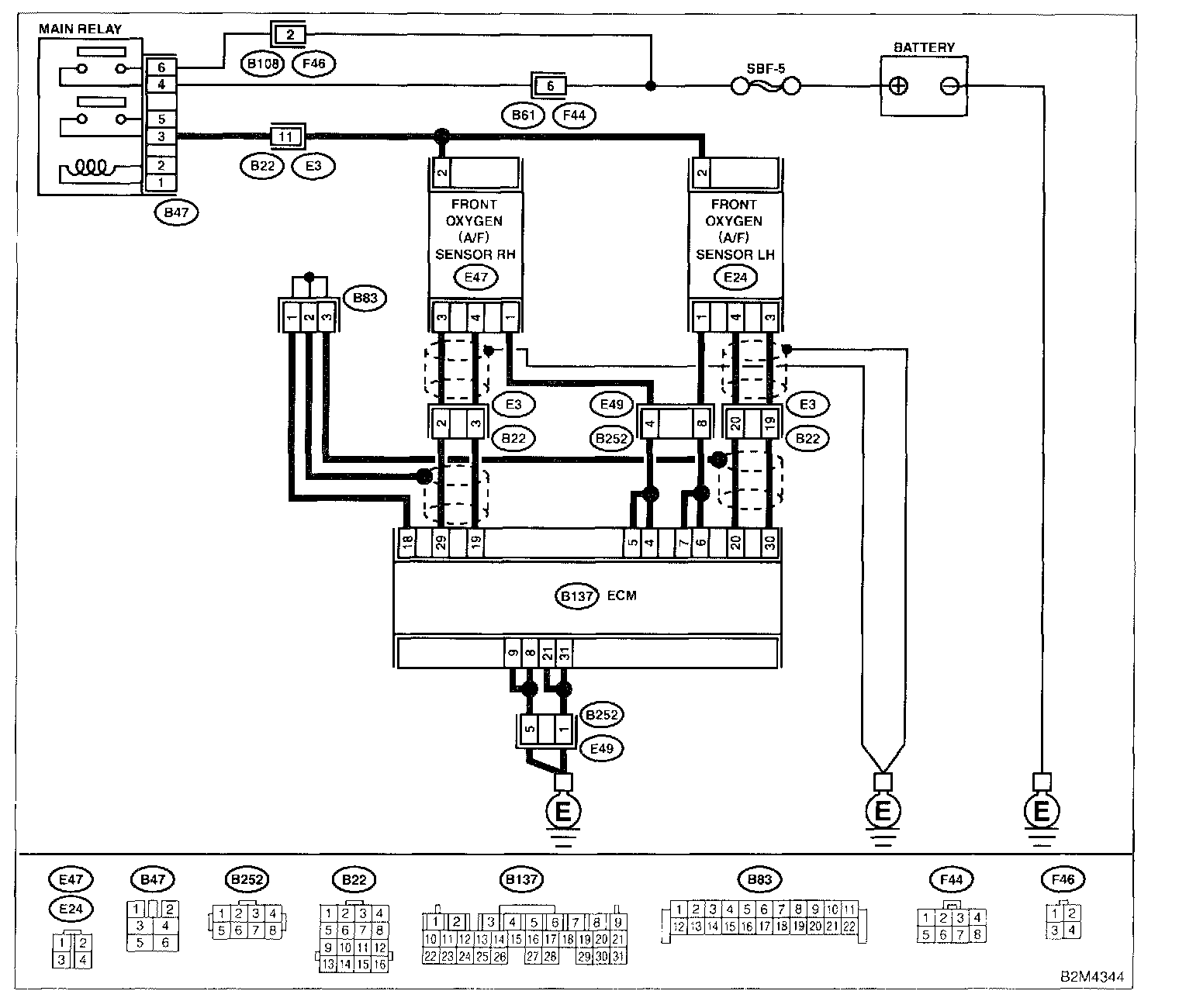

Wiring Diagram:

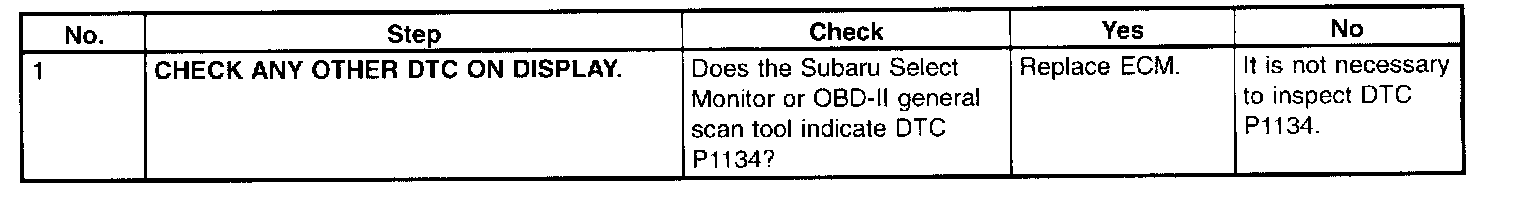

Step 1:

WIRING DIAGRAM
