P0734

DTC P0734 - GEAR 4 INCORRECT RATIO

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Shift point too high or too low; engine brake not effective in "3" range; excessive shift shock; excessive tight corner "braking"

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode Ref. to OPERATION, Clear Memory Mode. and Inspection Mode Ref. to OPERATION, Inspection Mode.

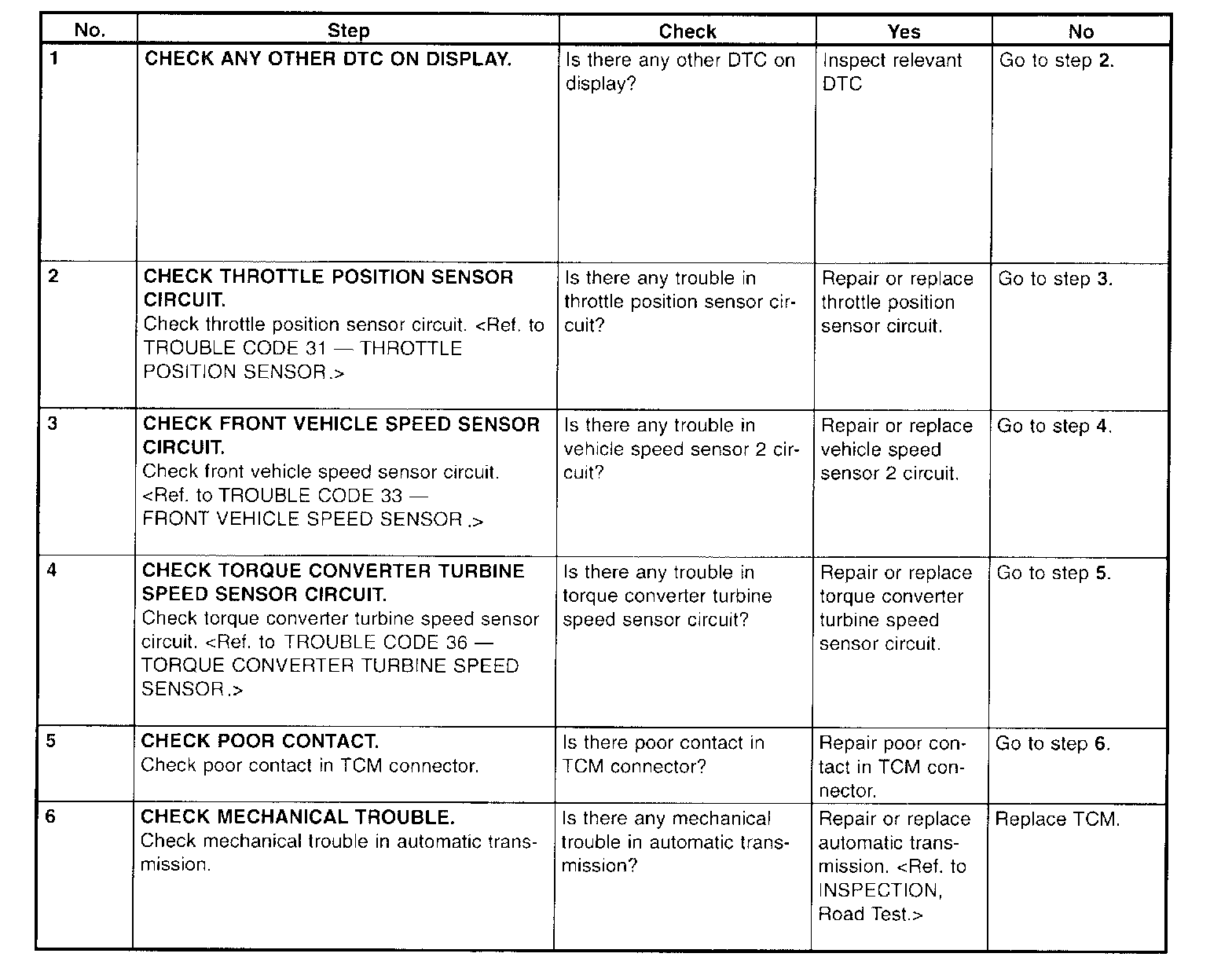

Step 1 - 6:

WIRING DIAGRAM
