P0512

DTC P0512 - STARTER SWITCH CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

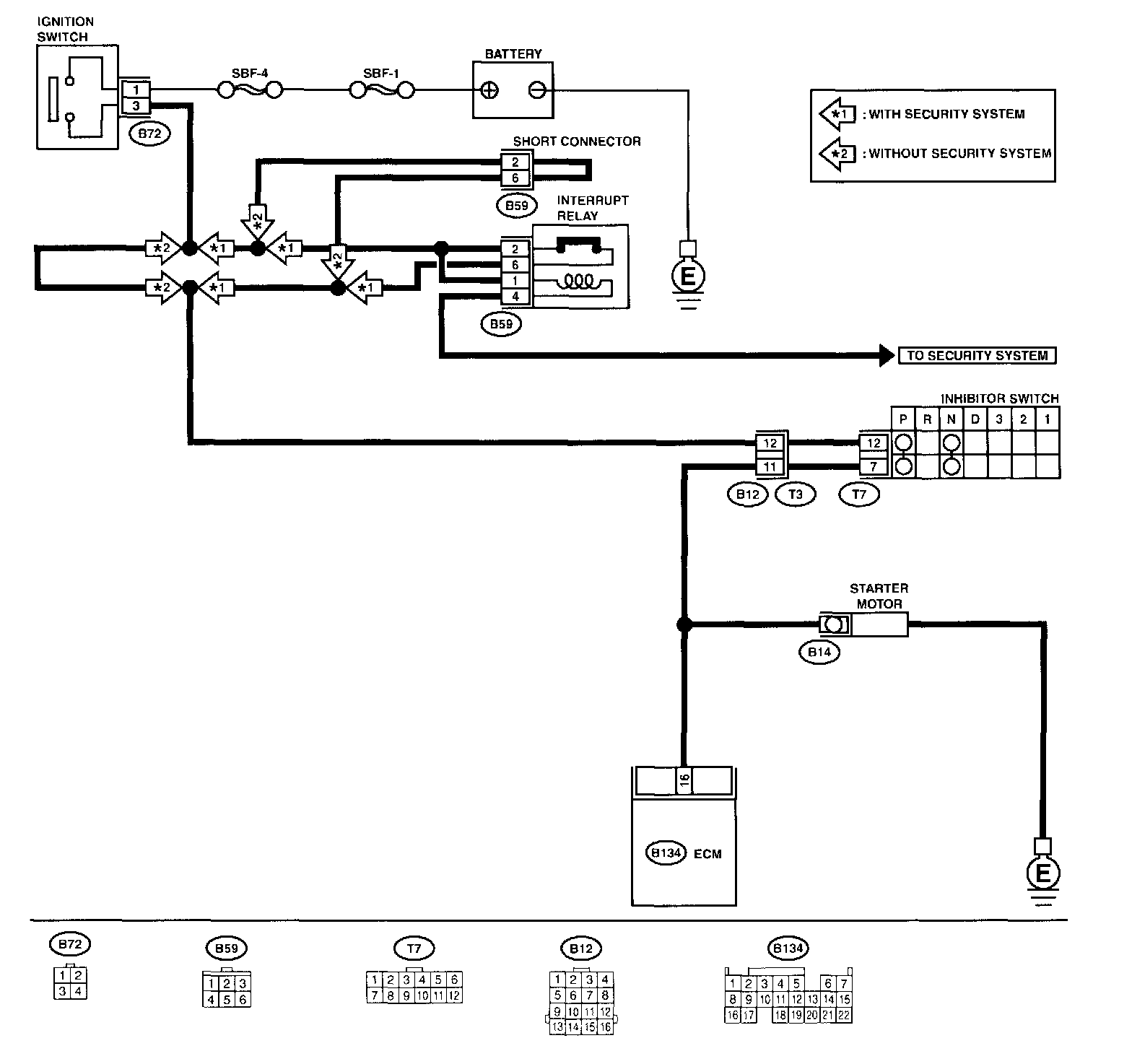

Wiring Diagram:

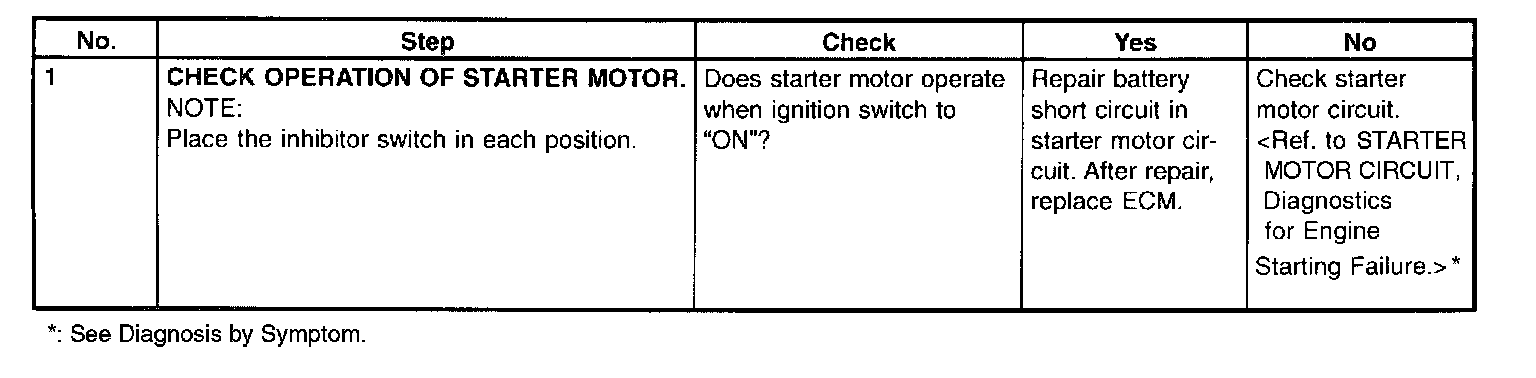

Step - 1:

WIRING DIAGRAM
