P0483

DTC P0483 - COOLING FAN FUNCTION PROBLEM

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Occurrence of noise
- Overheating

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

NOTE: If the vehicle, with the engine idling, is placed very close to a wall or another vehicle, preventing normal cooling function, the OBD system may detect malfunction.

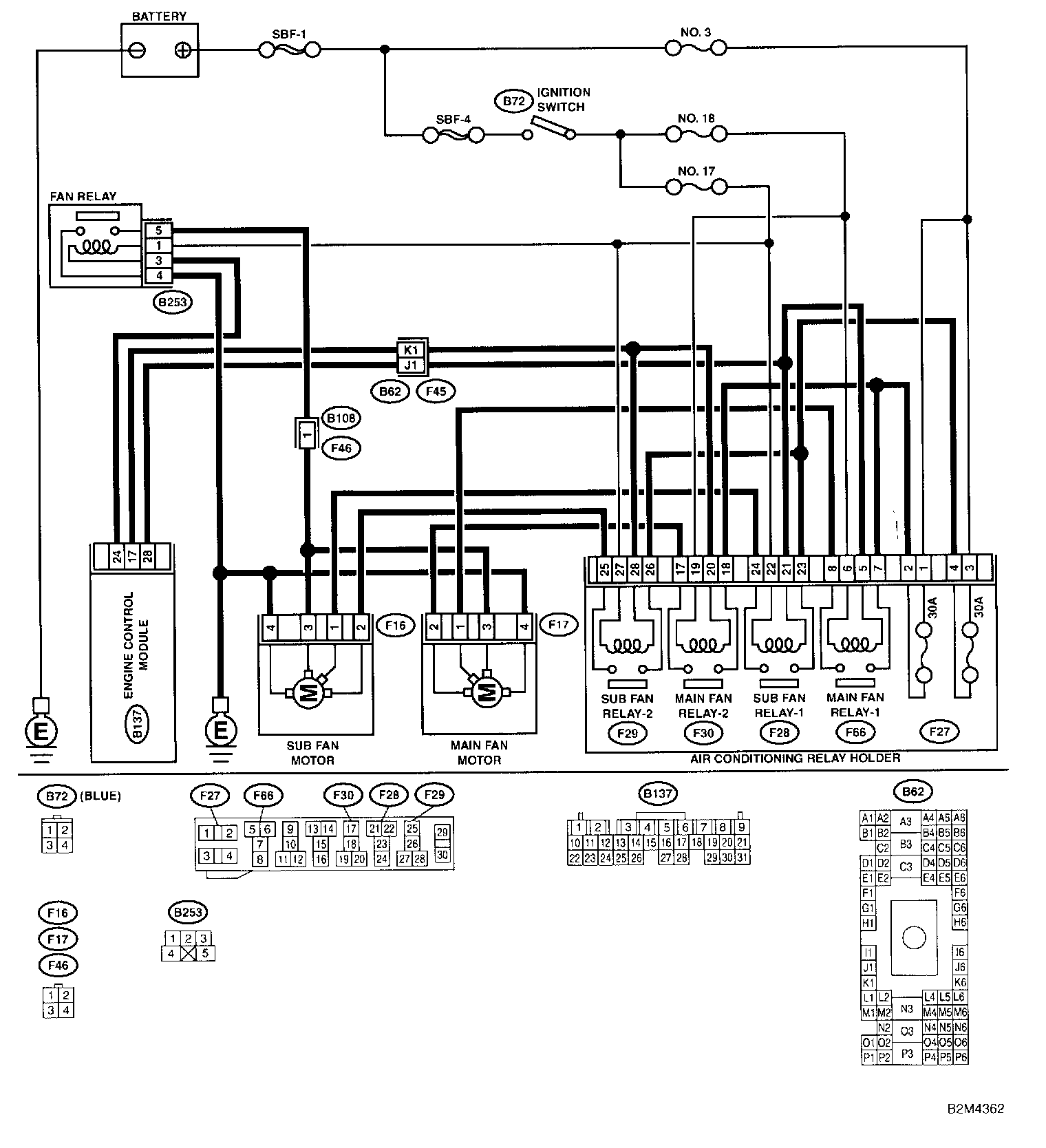

Wiring Diagram:

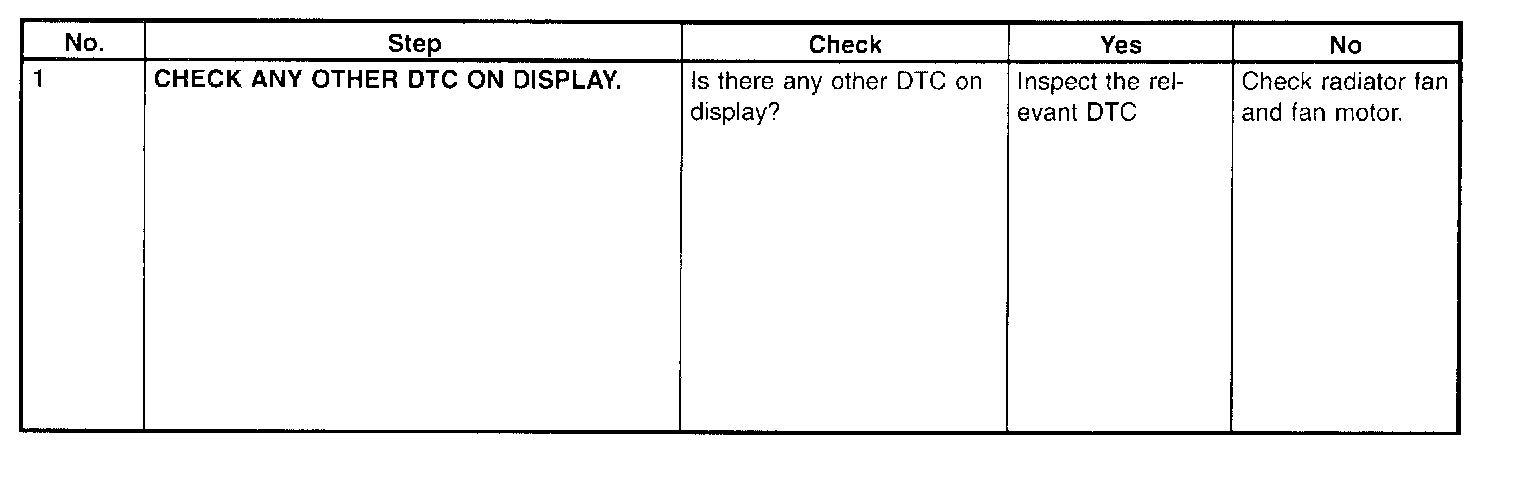

Step 1:

WIRING DIAGRAM
