P0480

DTC P0480- COOLING FAN RELAY 1 CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Radiator fan does not operate properly.
- Overheating

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

Wiring Diagram:

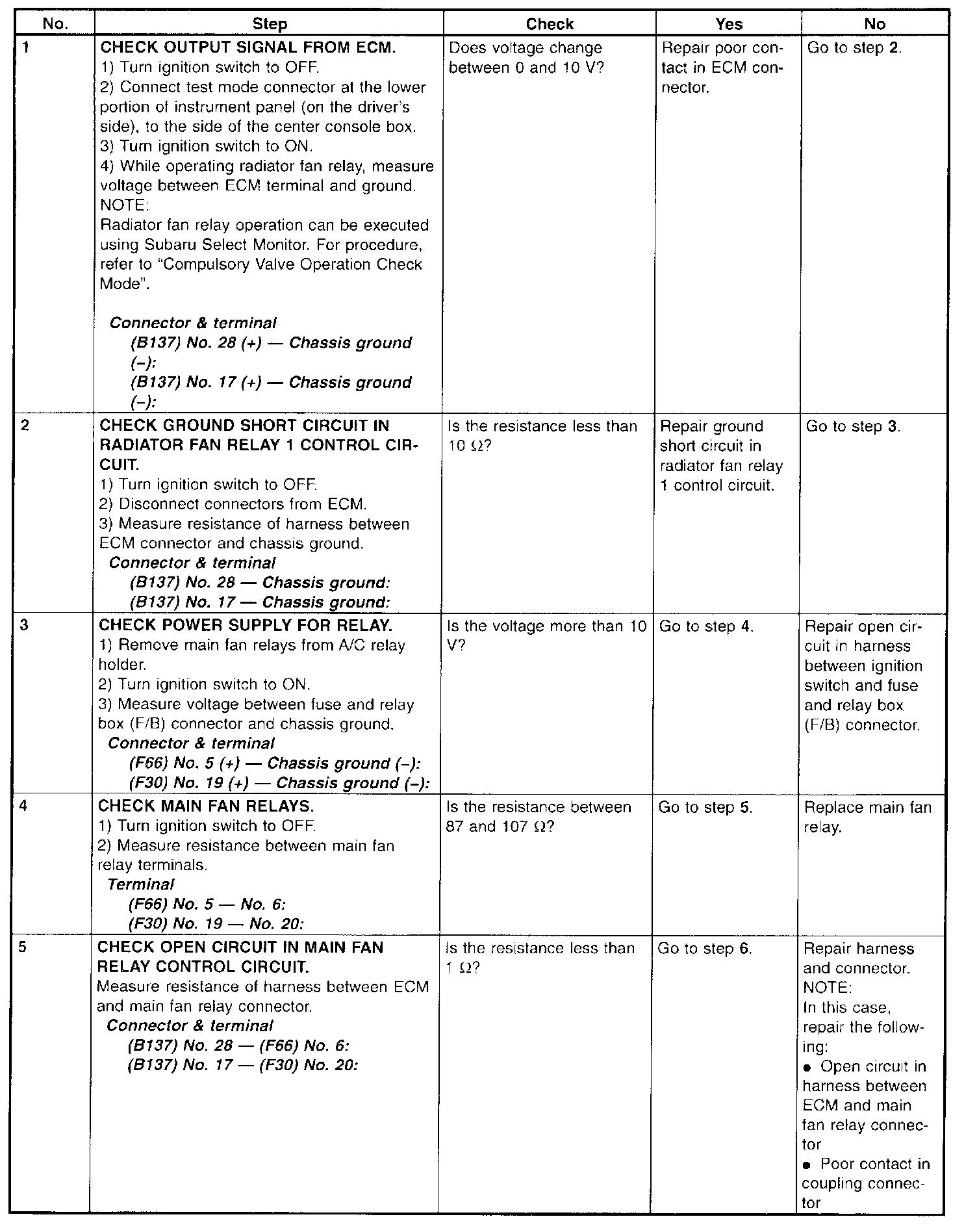

Step 1 - 5:

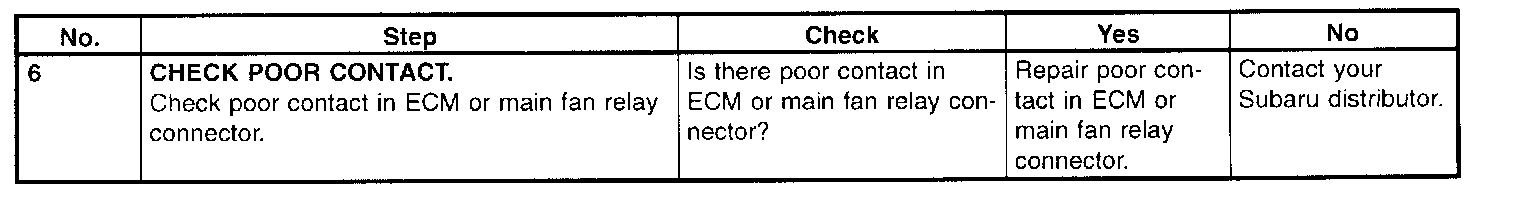

Step 6:

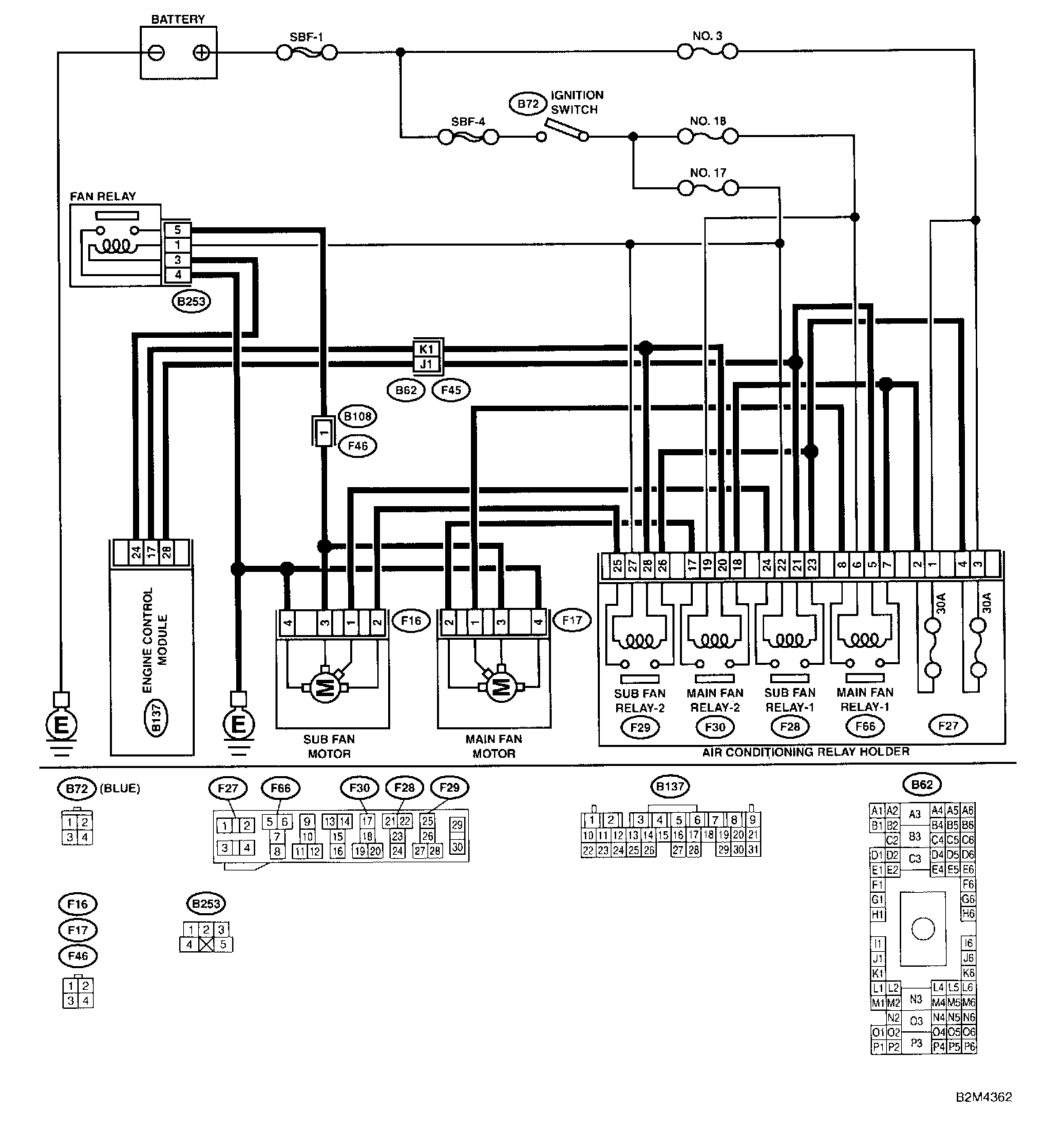

WIRING DIAGRAM
