P0462

DTC P0462 - FUEL LEVEL SENSOR CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

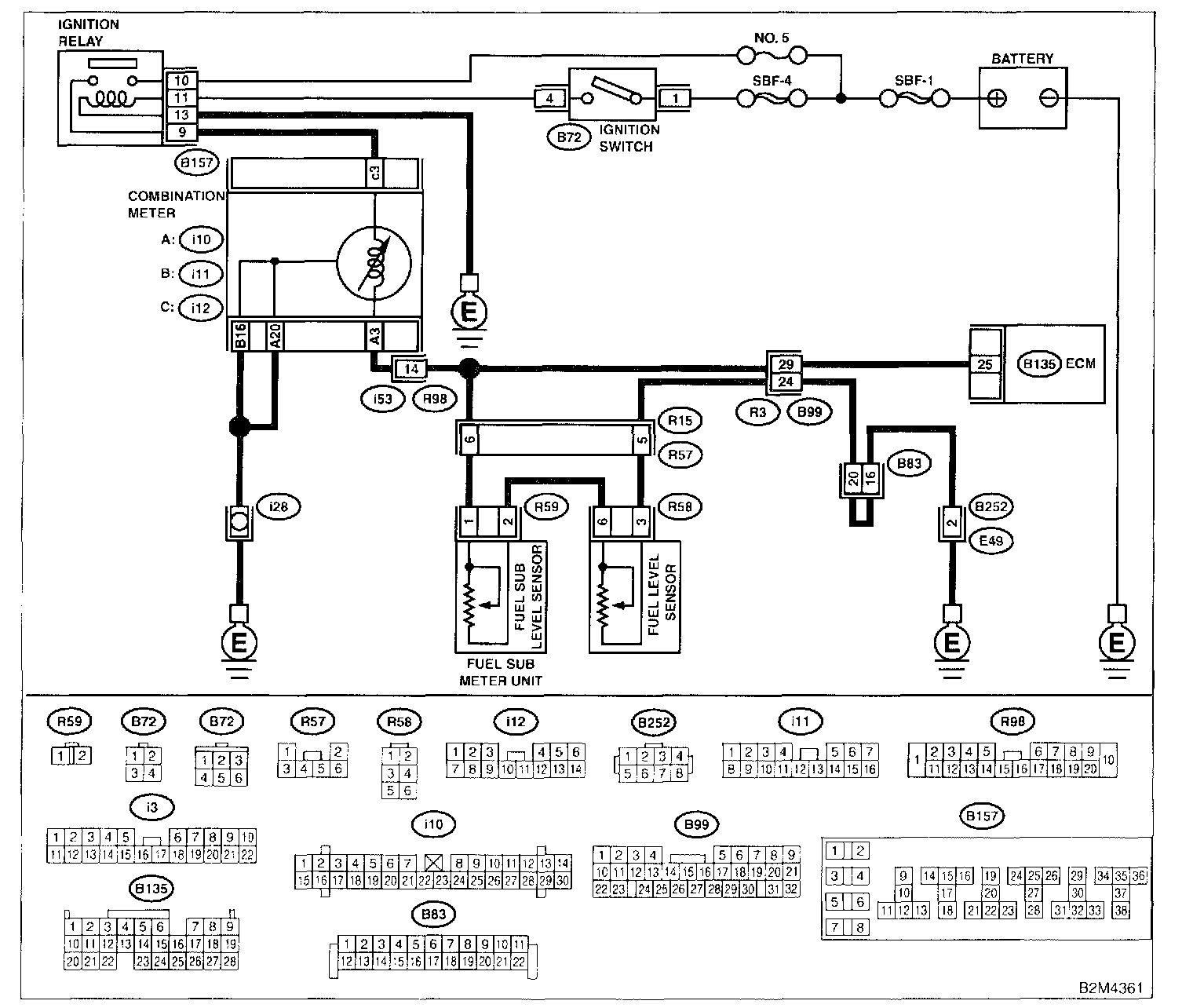

Wiring Diagram:

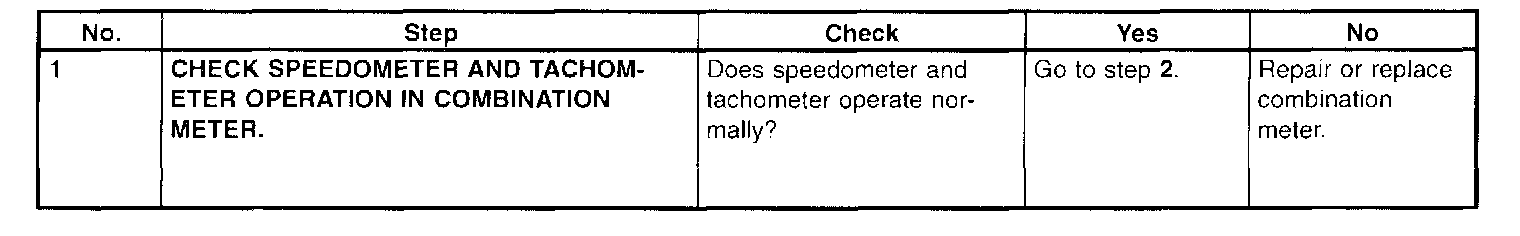

Step 1:

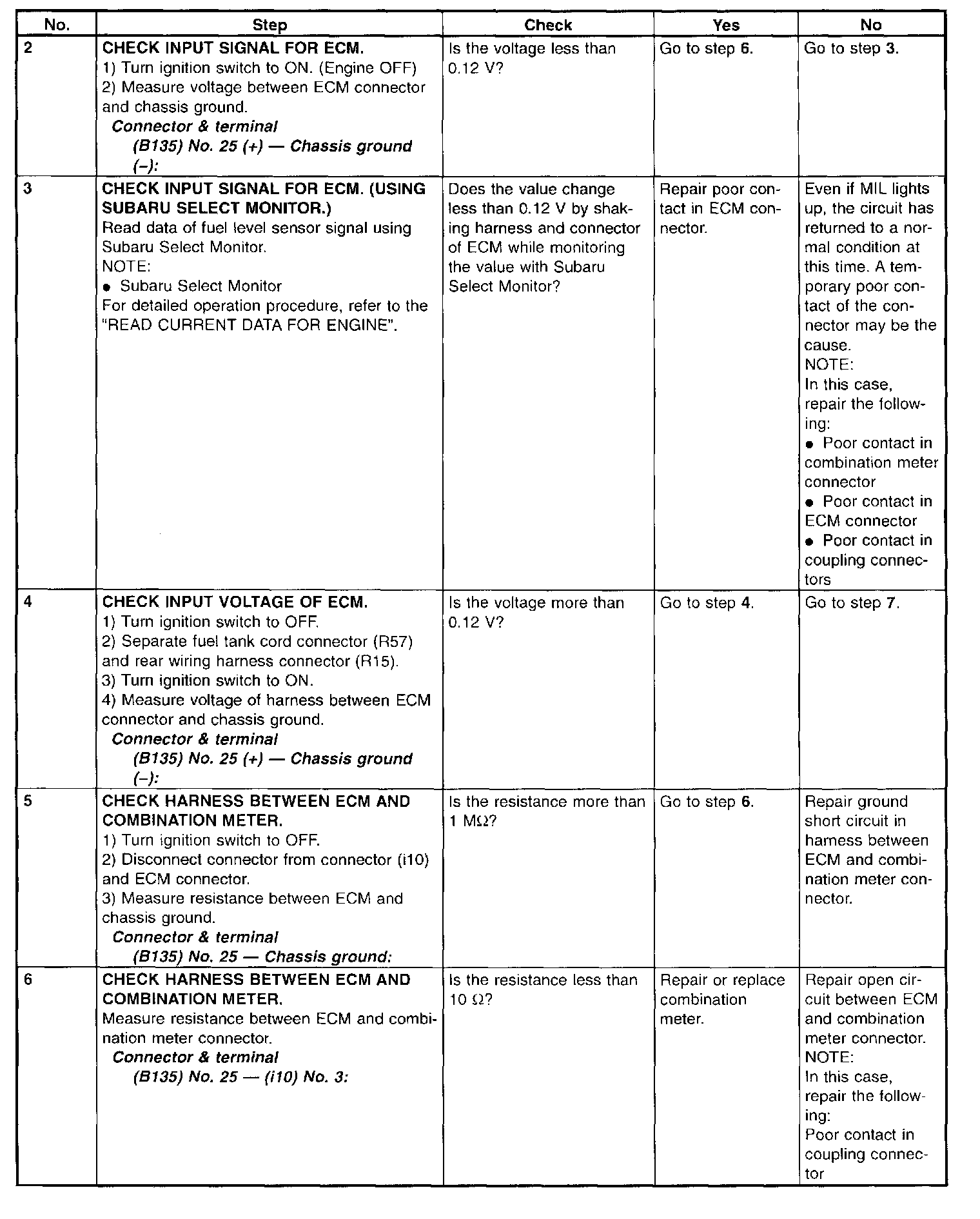

Step 2 - 6:

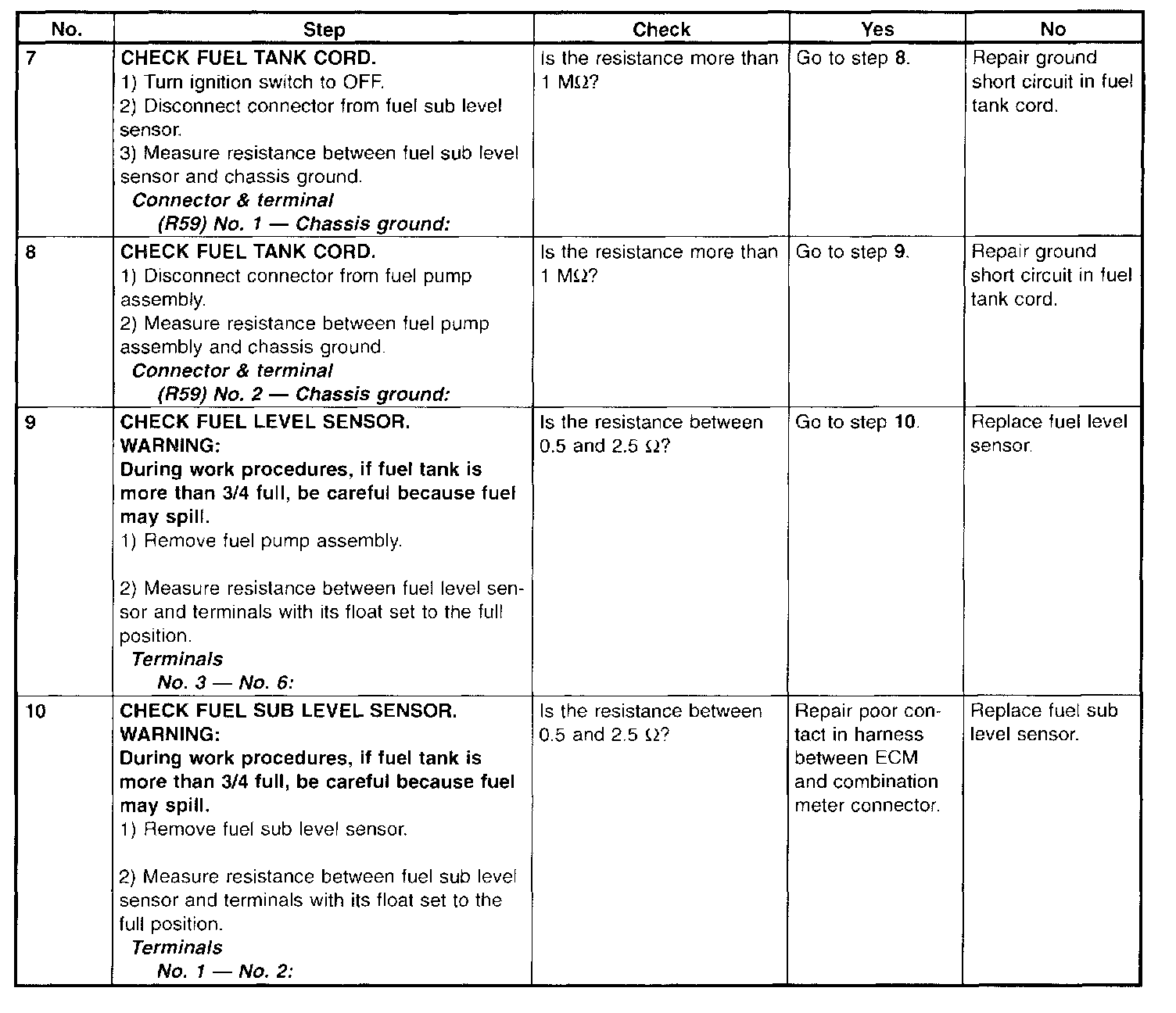

Step 7 - 10:

WIRING DIAGRAM
