P0452

DTC P0452 - EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

Wiring Diagram:

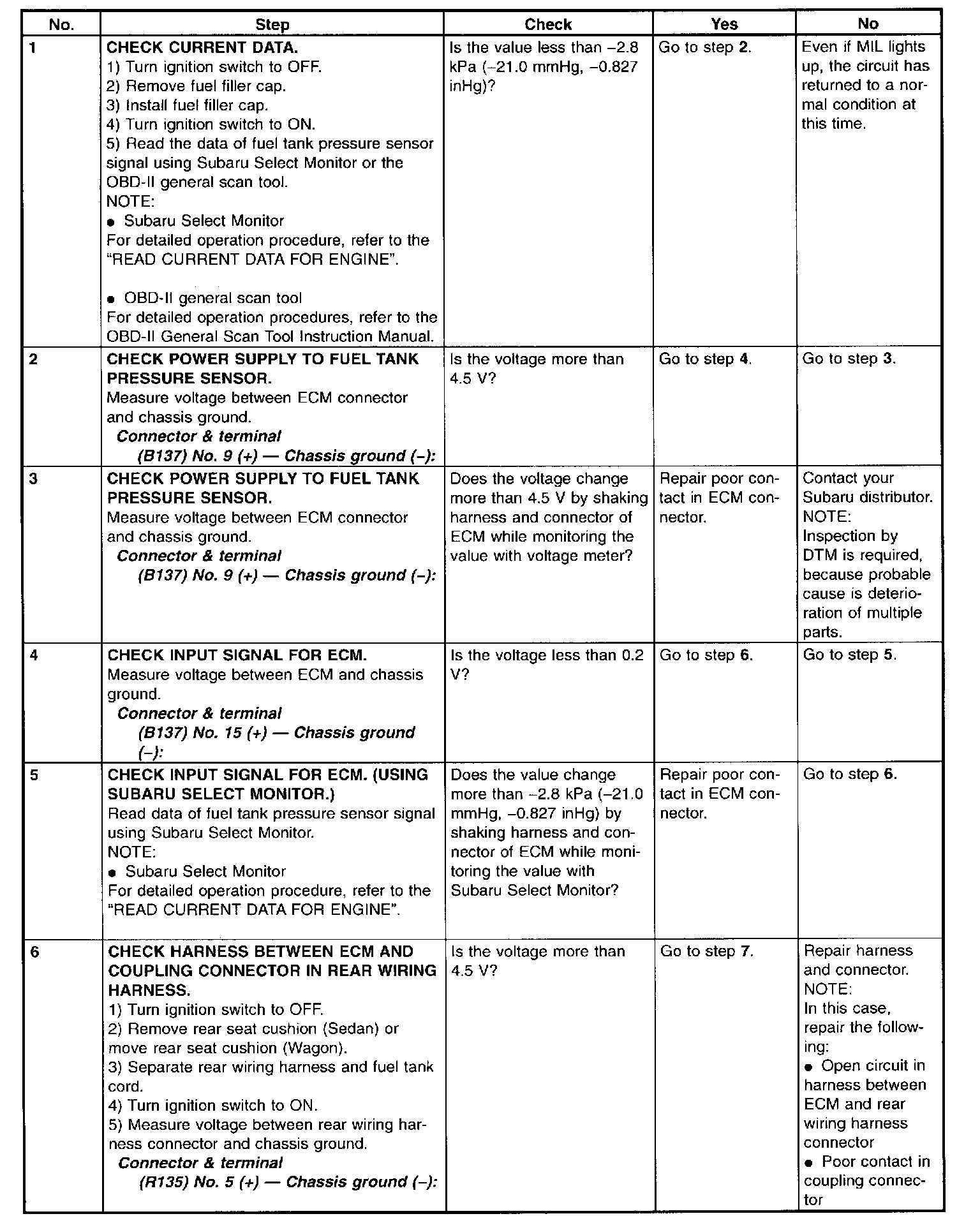

Step 1 - 6:

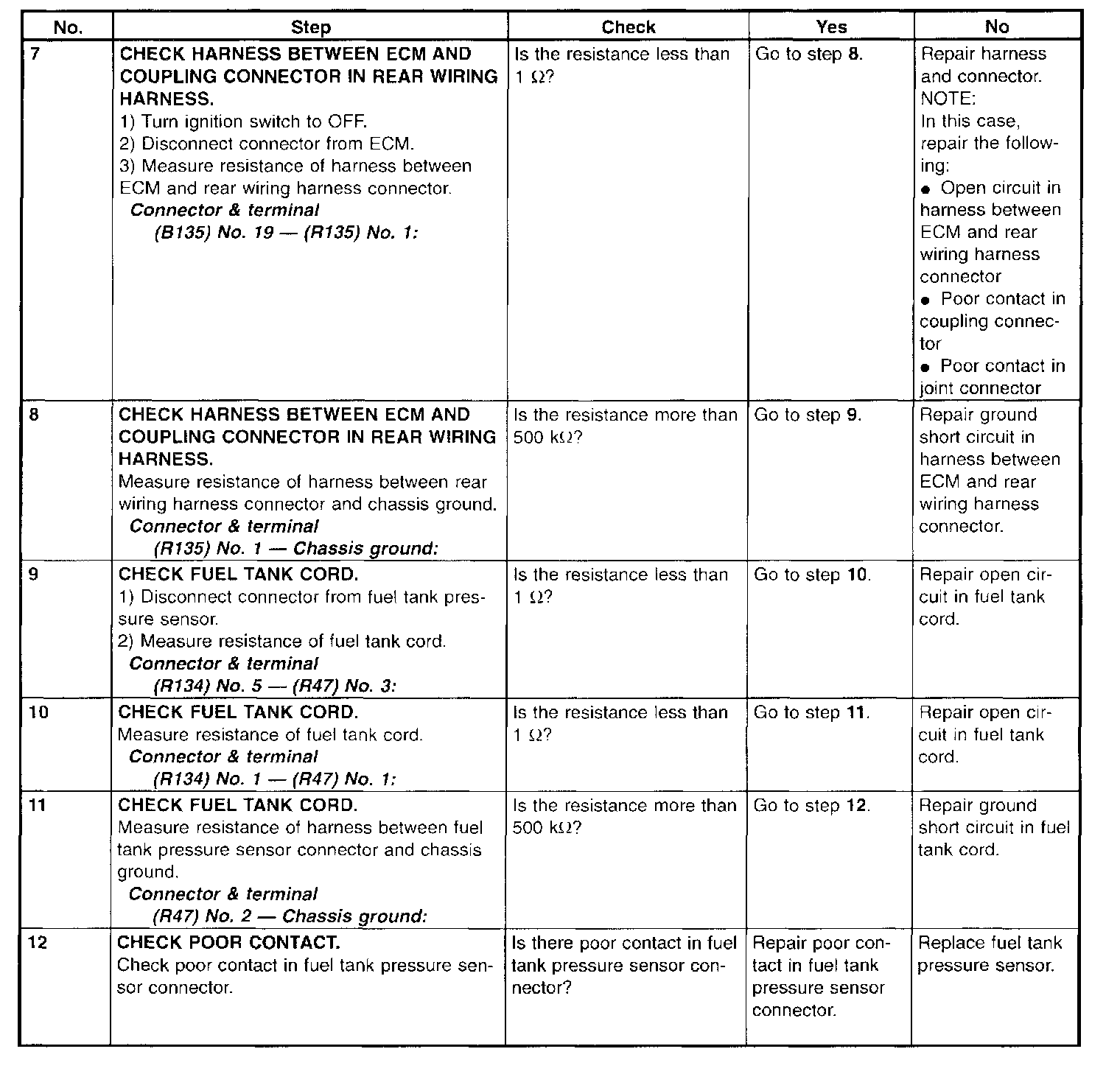

Step 7 - 12:

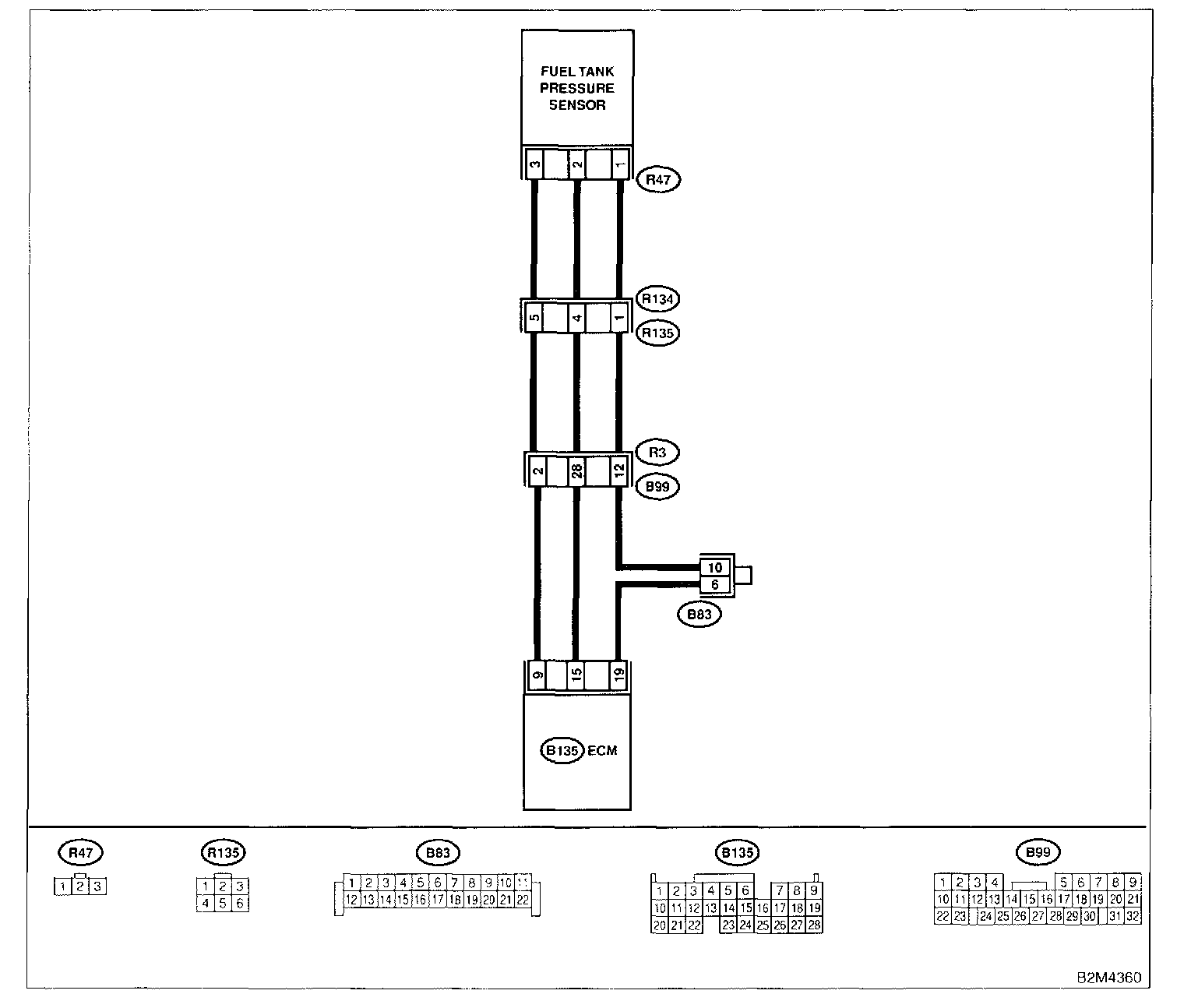

WIRING DIAGRAM
