P0448

DTC P0448 - EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

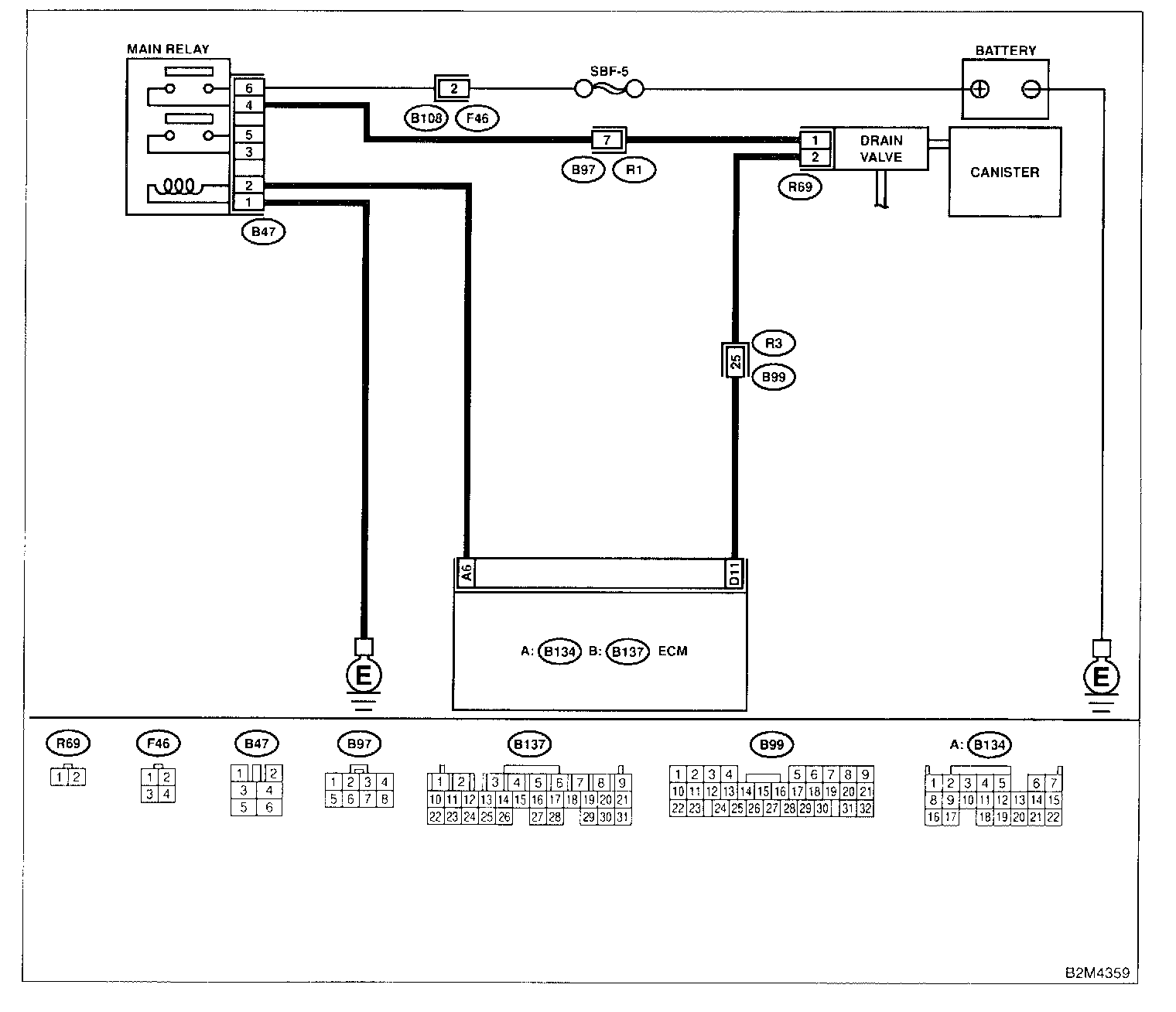

Wiring Diagram:

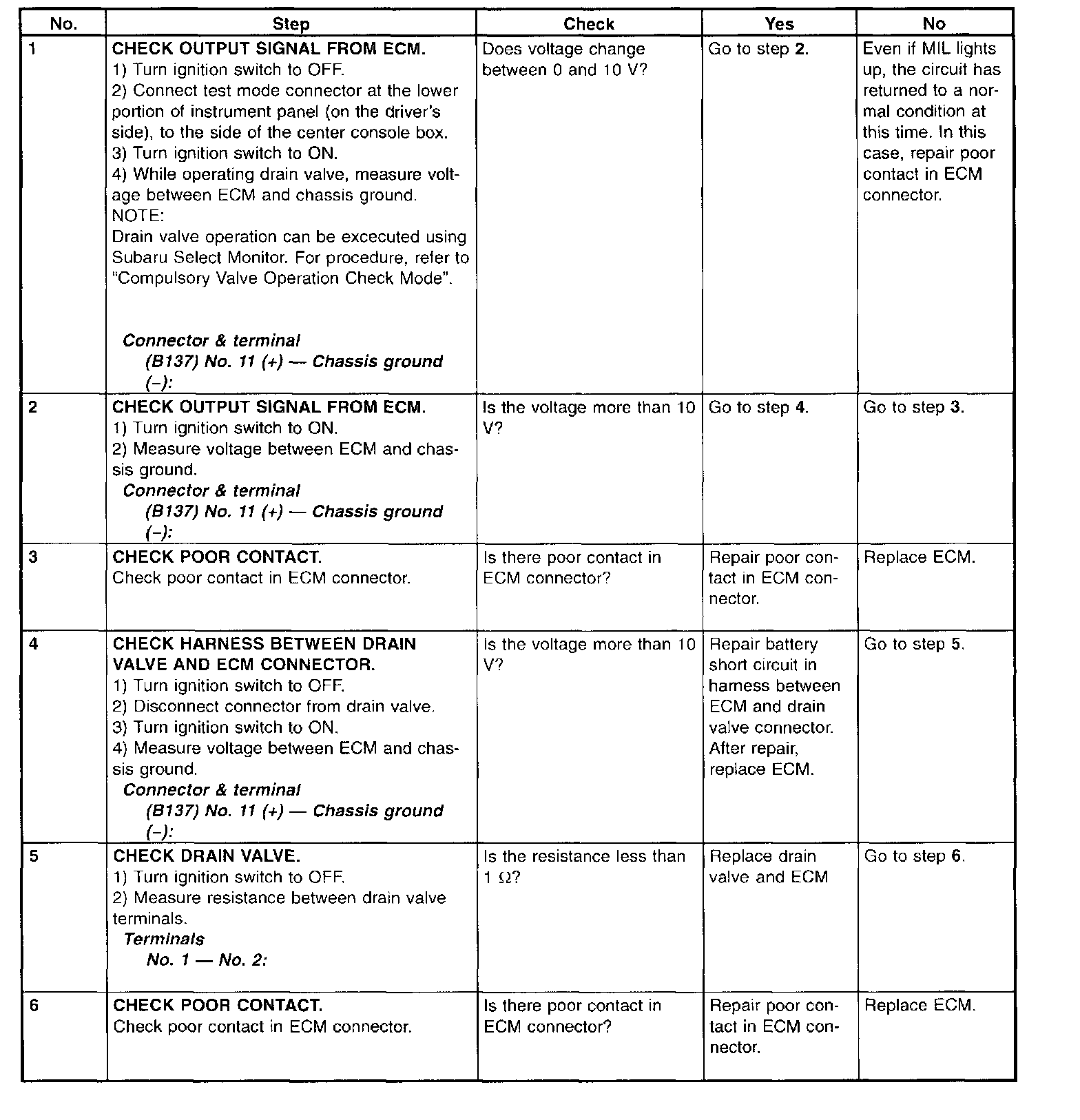

Step 1 - 6:

WIRING DIAGRAM
