P0447

DTC P0447- EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

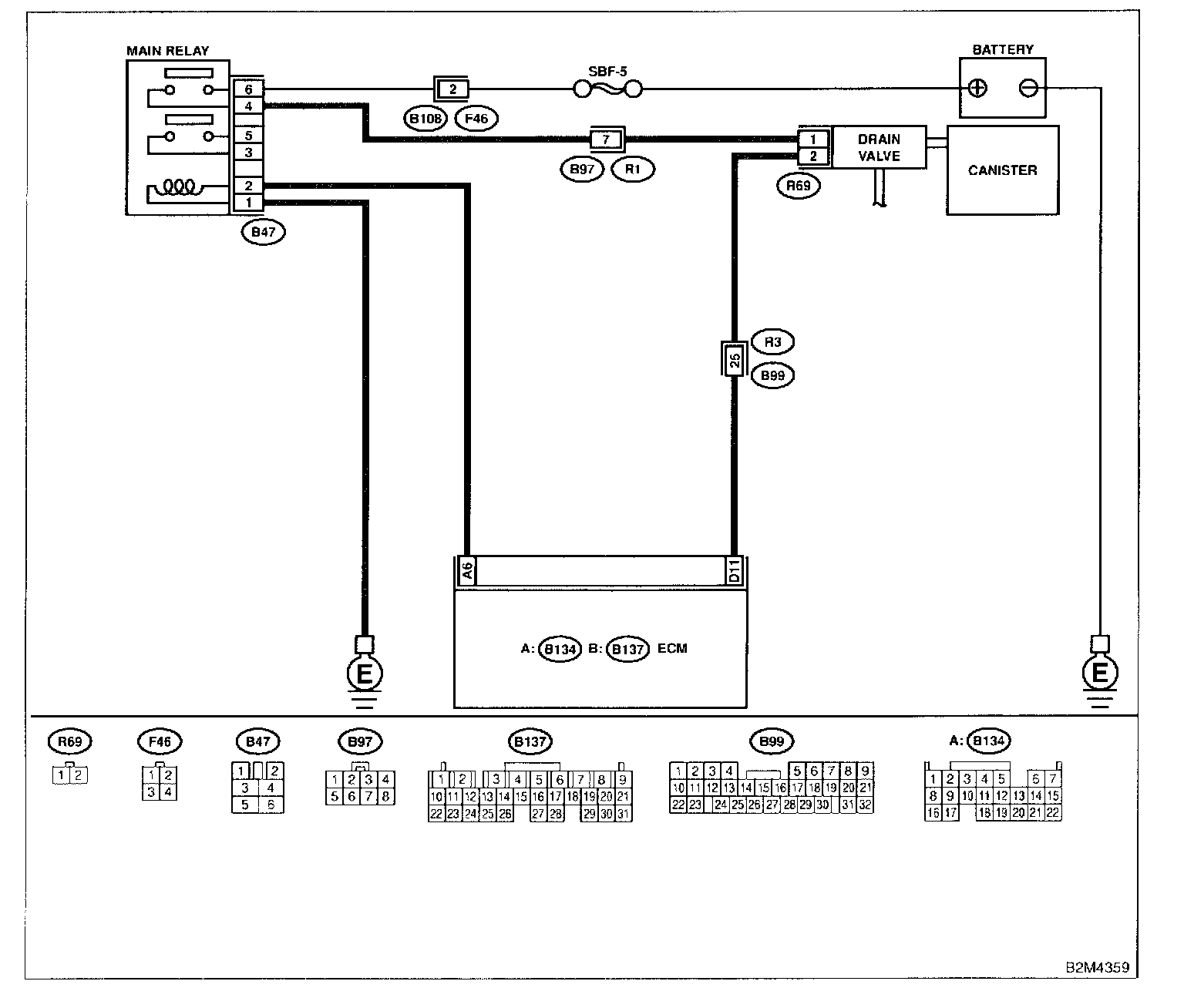

Wiring Diagram:

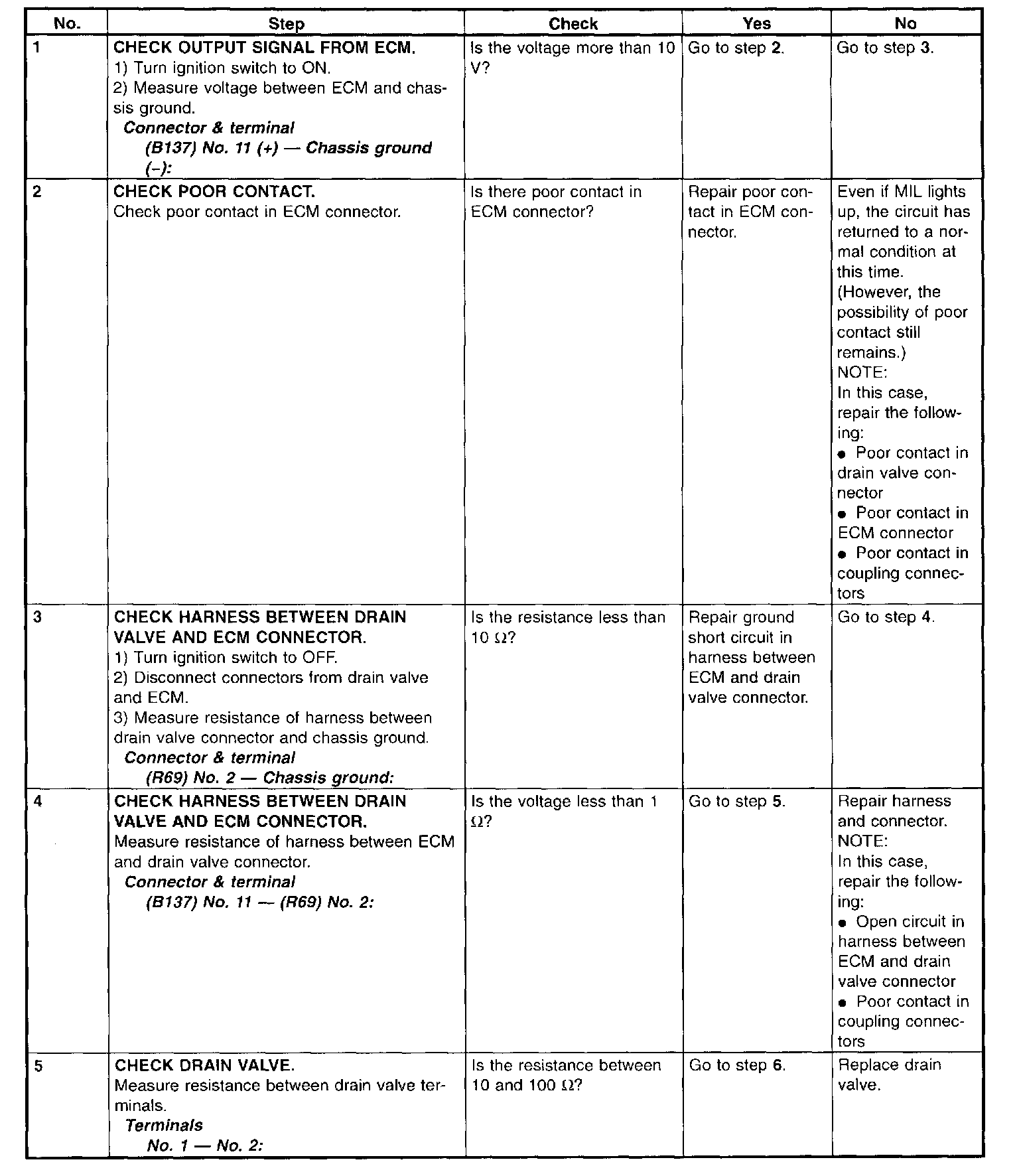

Step 1 - 5:

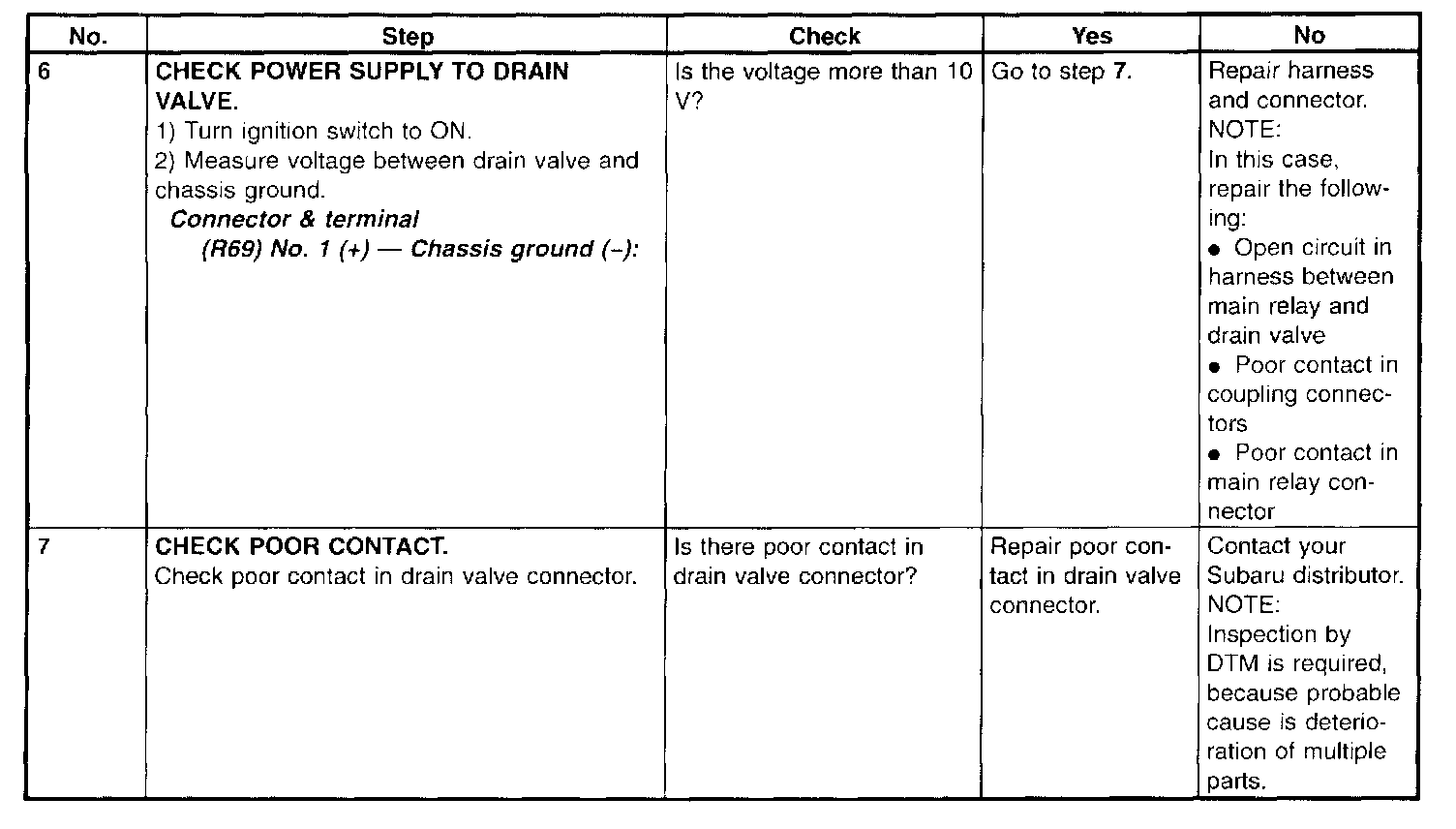

Step 6 - 7:

WIRING DIAGRAM
