P0442
DTC P0442 - EVAPORATIVE EMISSION CONTROL SYSTEM MALFUNCTIONDTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
- Gasoline smell
- There Is a hole of more than 1.0 mm (0.04 in) dia. in evaporation system or fuel tank.
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode

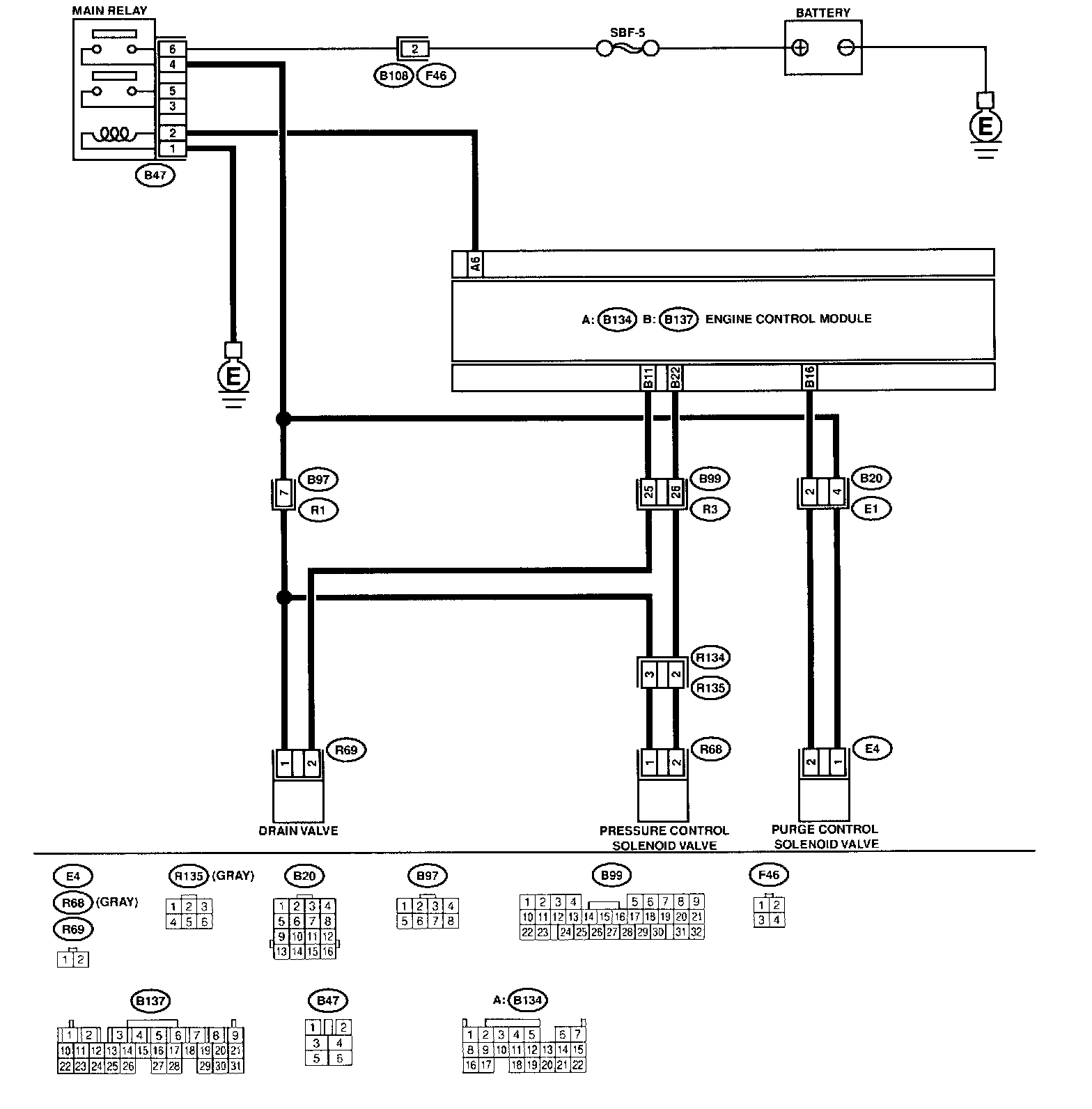

Wiring Diagram:

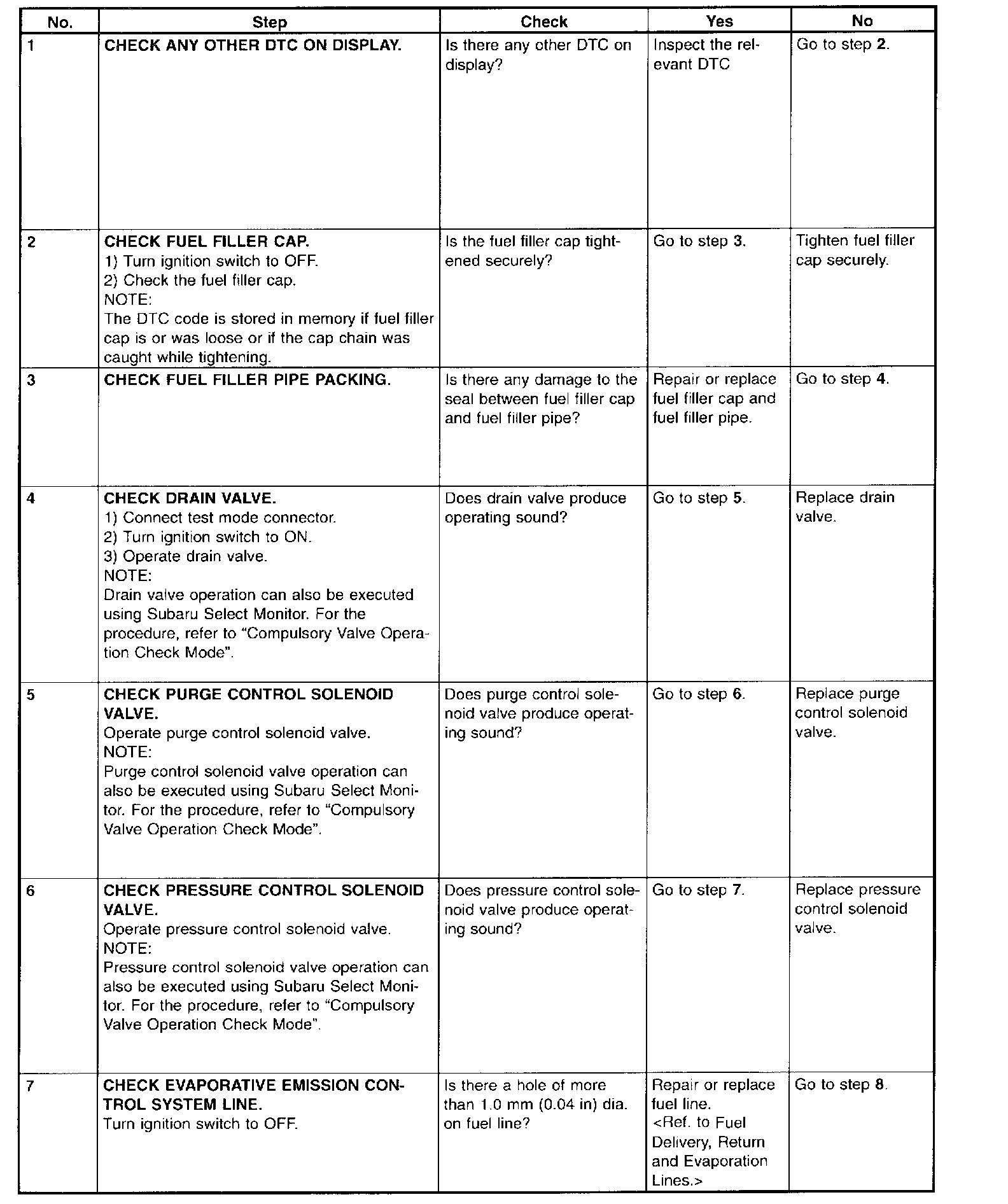

Step 1 - 7:

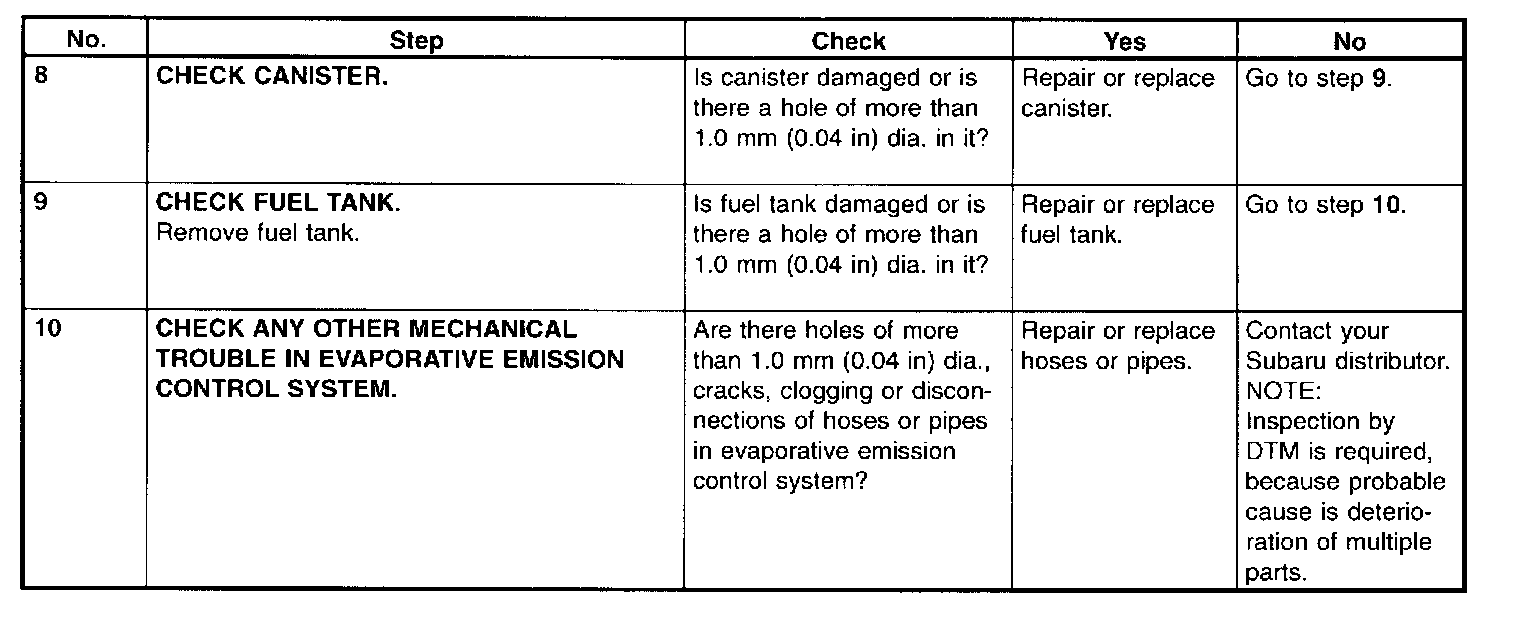

Step 8 - 10:
WIRING DIAGRAM
