P0400

DTC P0400 - EGR SYSTEM MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Poor driving performance on low engine speed
- Erroneous idling
- Poor driving performance.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

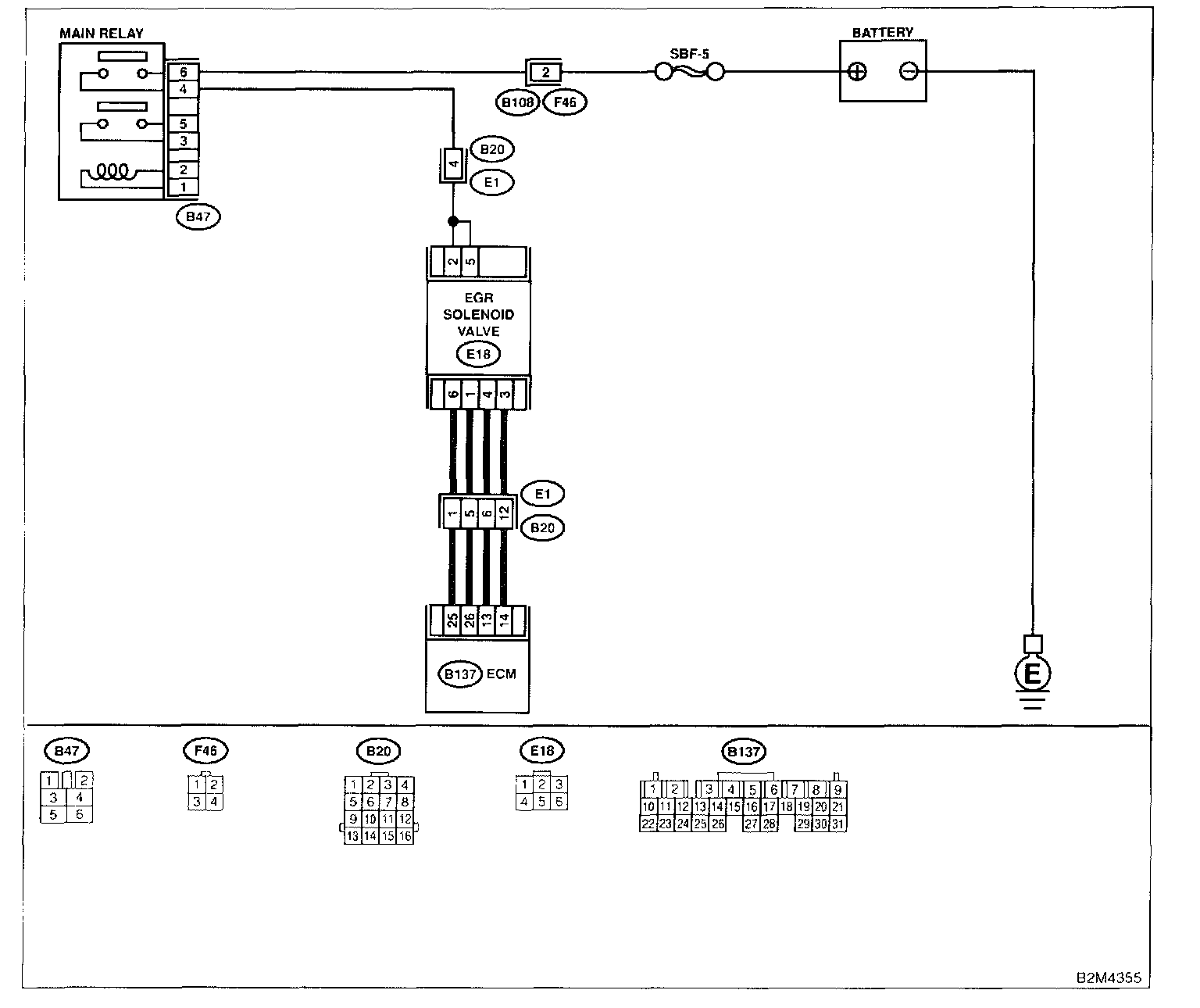

Wiring Diagram:

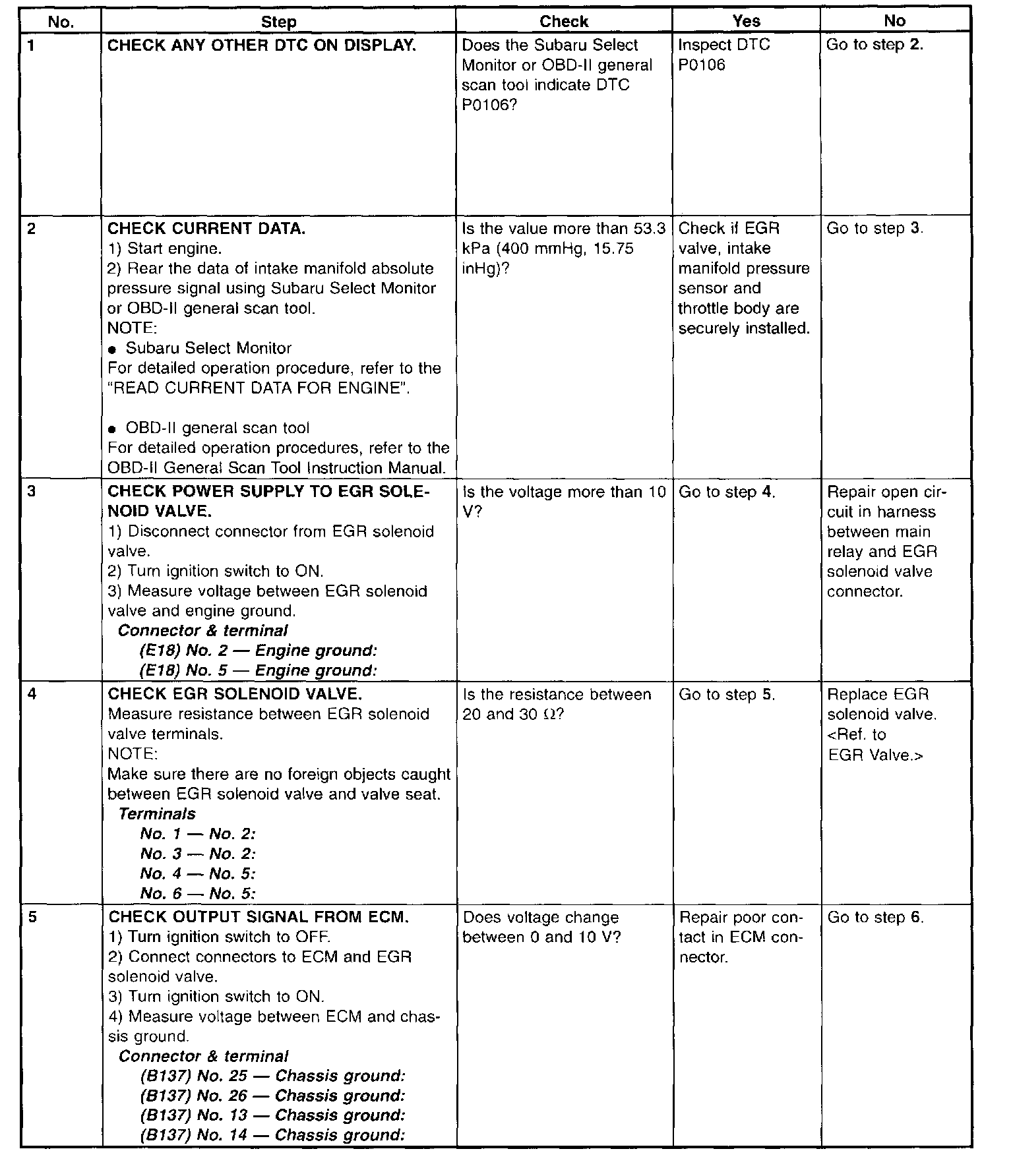

Step 1 - 5:

Step 6 - 8:

WIRING DIAGRAM
