P0341
DTC P0341 - CAMSHAFT POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEMDTC DETECTING CONDITION:
- Immediately at fault recognition
TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode

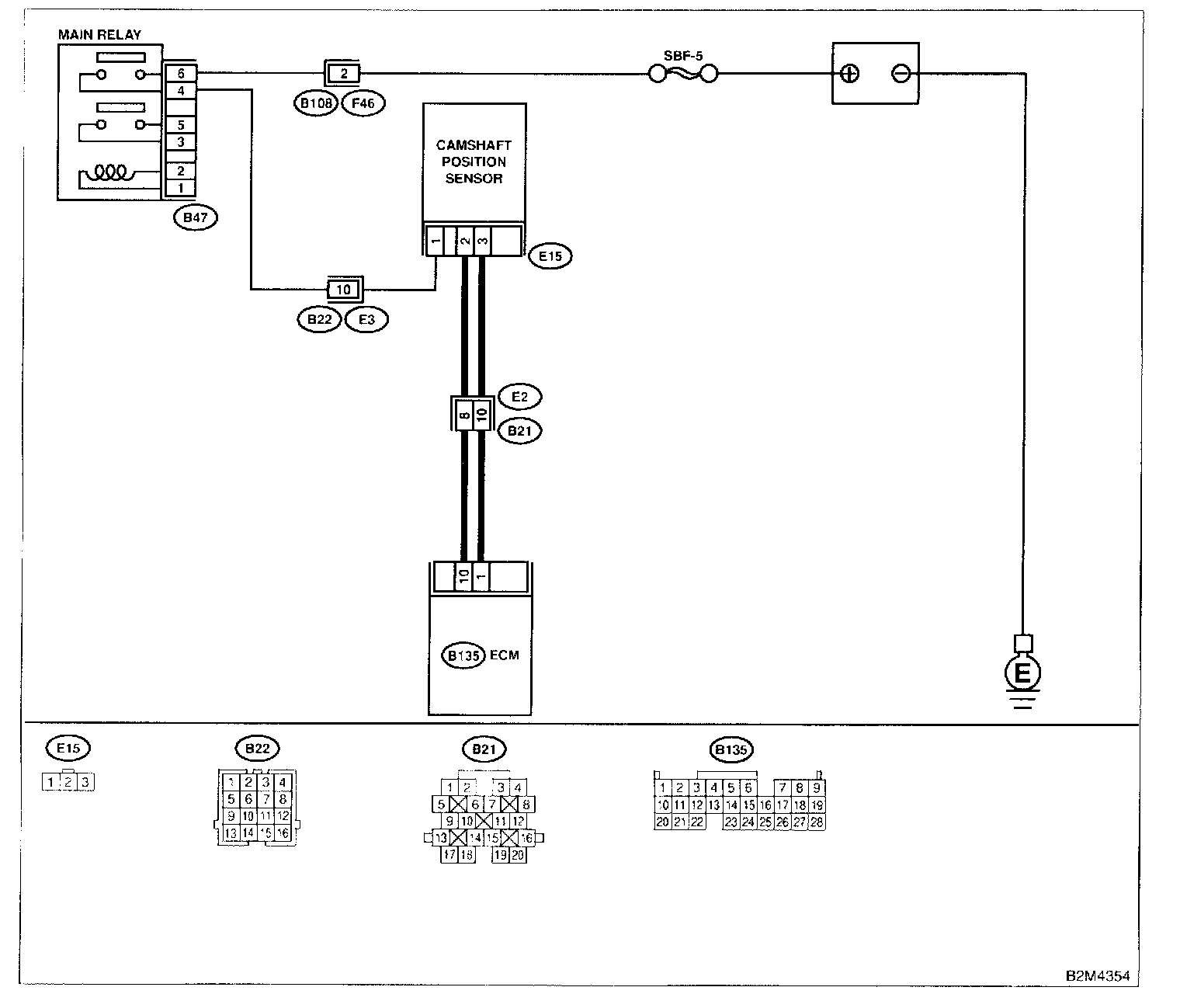

Wiring Diagram:
Step 1 - 4:
WIRING DIAGRAM
