P0340

DTC P0340 - CAMSHAFT POSITION SENSOR CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

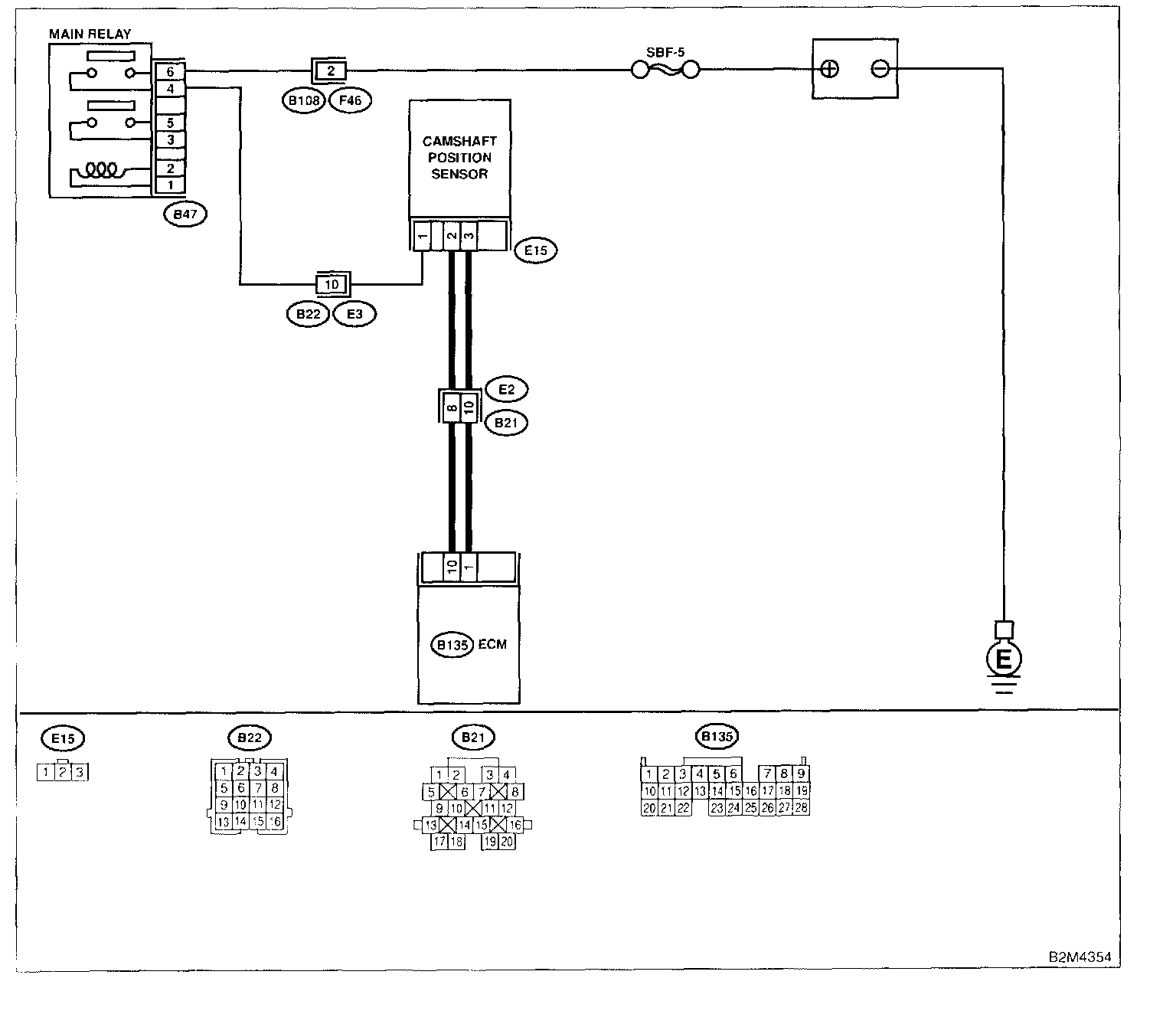

Wiring Diagram:

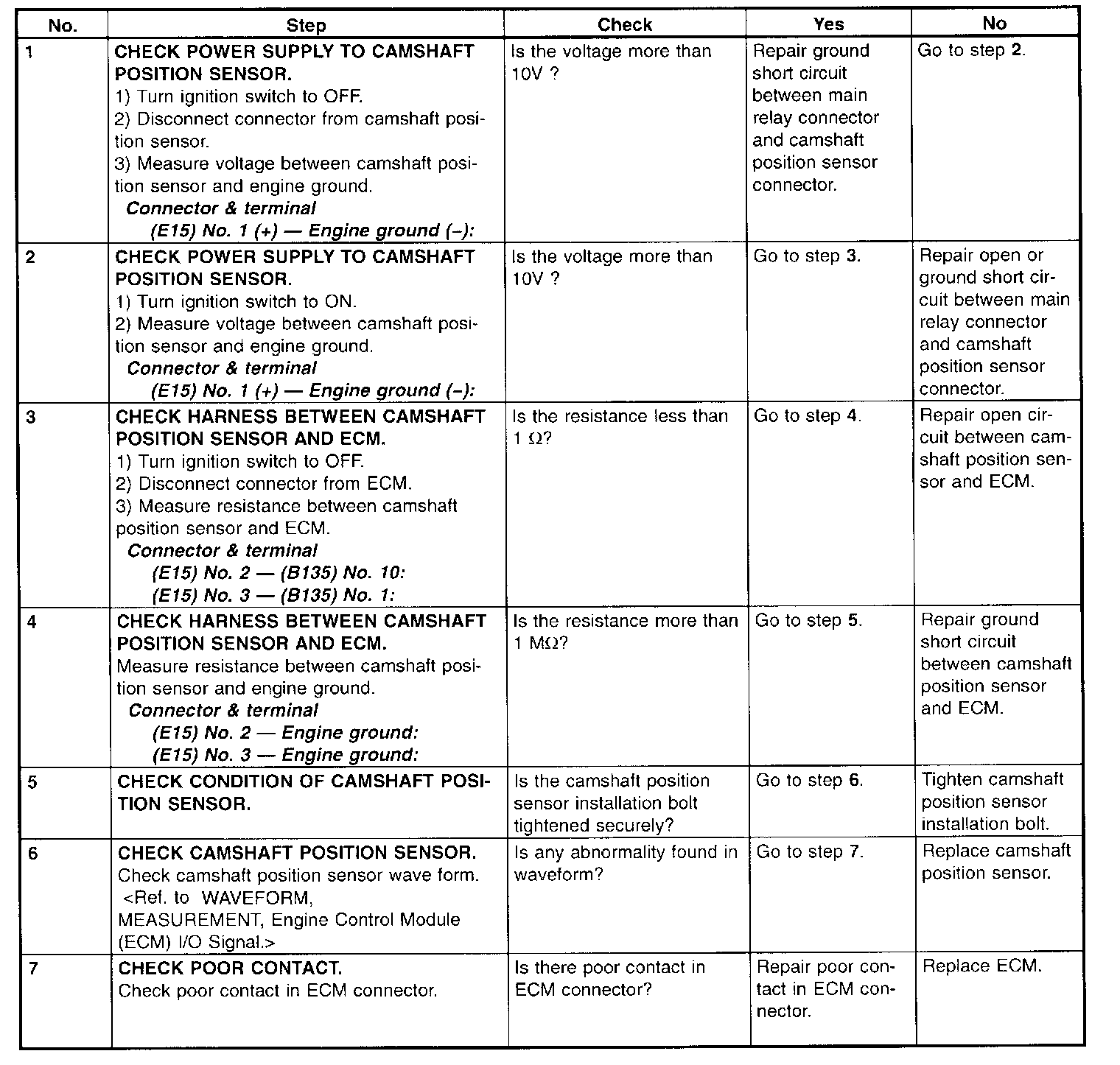

Step 1 - 7:

WIRING DIAGRAM
