P0336

DTC P0336 - CRANKSHAFT POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM

DTC DETECTING CONDITION:
- Tow consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

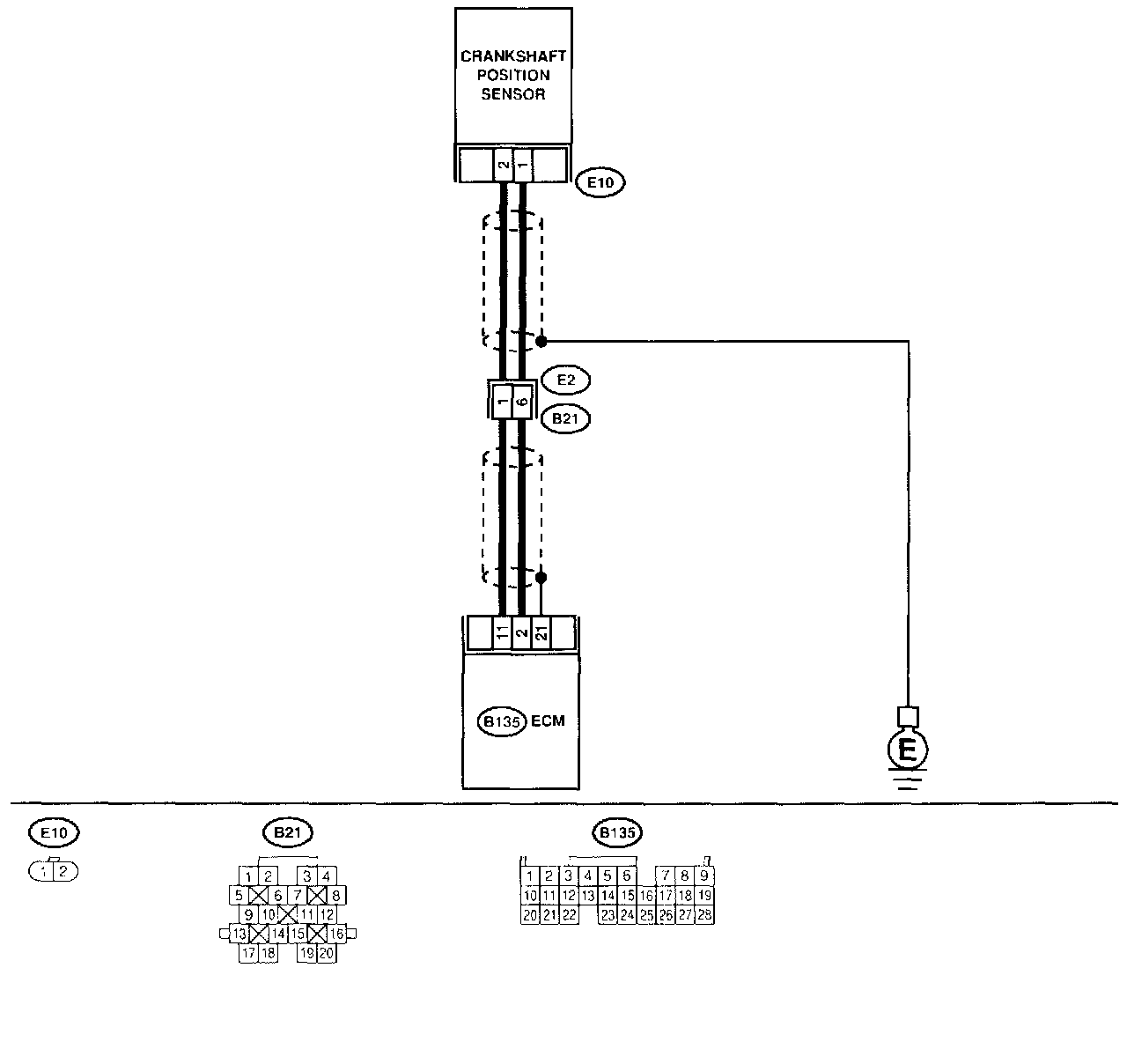

Wiring Diagram:

Step 1 - 4:

WIRING DIAGRAM
