P0327
DTC P0327 - KNOCK SENSOR 1 CIRCUIT LOW INPUTDTC DETECTING CONDITION:
- Immediately at fault recognition
TROUBLE SYMPTOM:
- Poor driving performance
- Knocking occurs.
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode

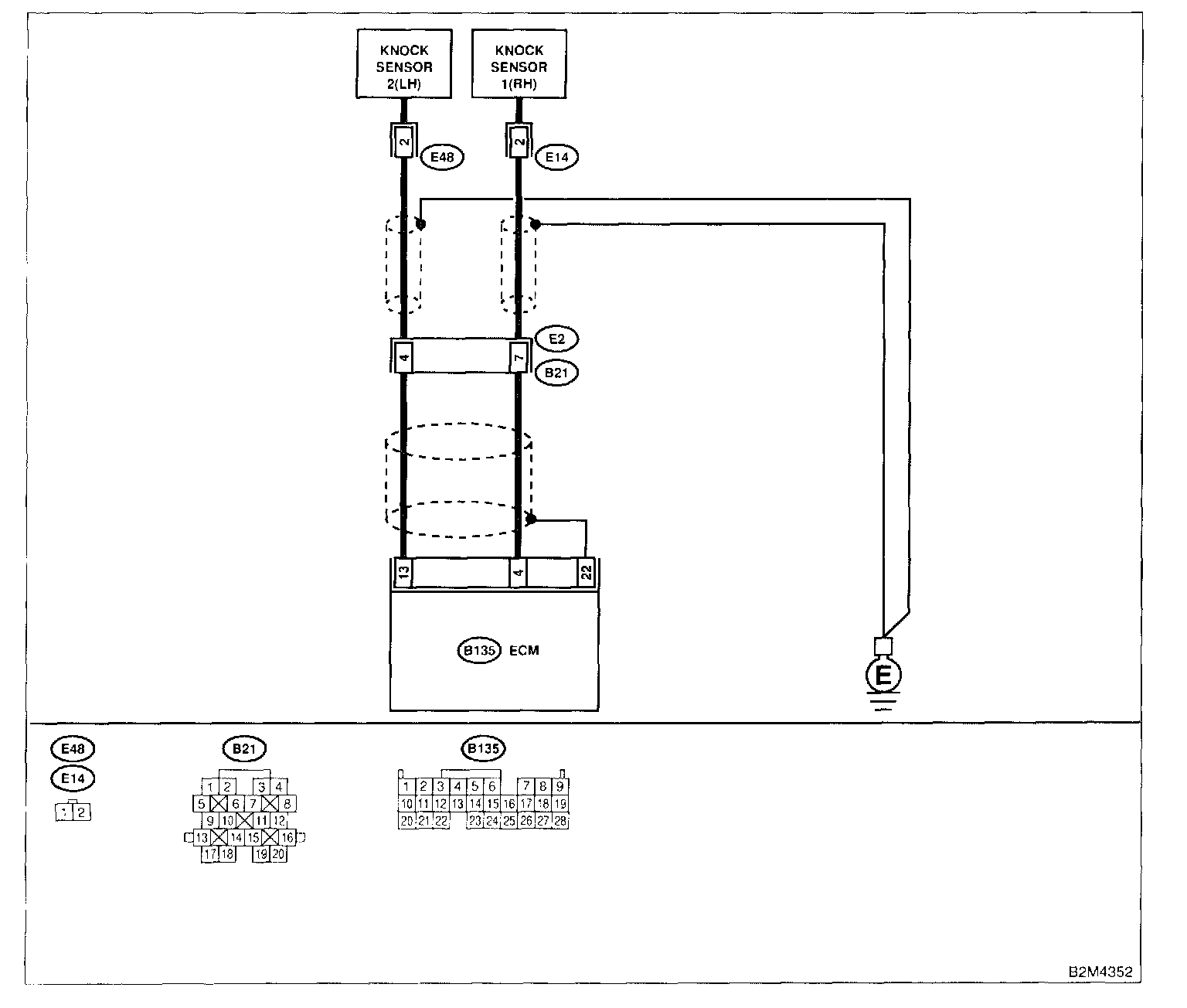

Wiring Diagram:
Step 1 - 3:
WIRING DIAGRAM
