P0306

DTC P0306 - CYLINDER 6 MISFIRE DETECTED

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
- Immediately at fault recognition (A misfire which could damage catalyst occurs.)

TROUBLE SYMPTOM:
- Engine stalls.
- Erroneous idling
- Rough driving

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

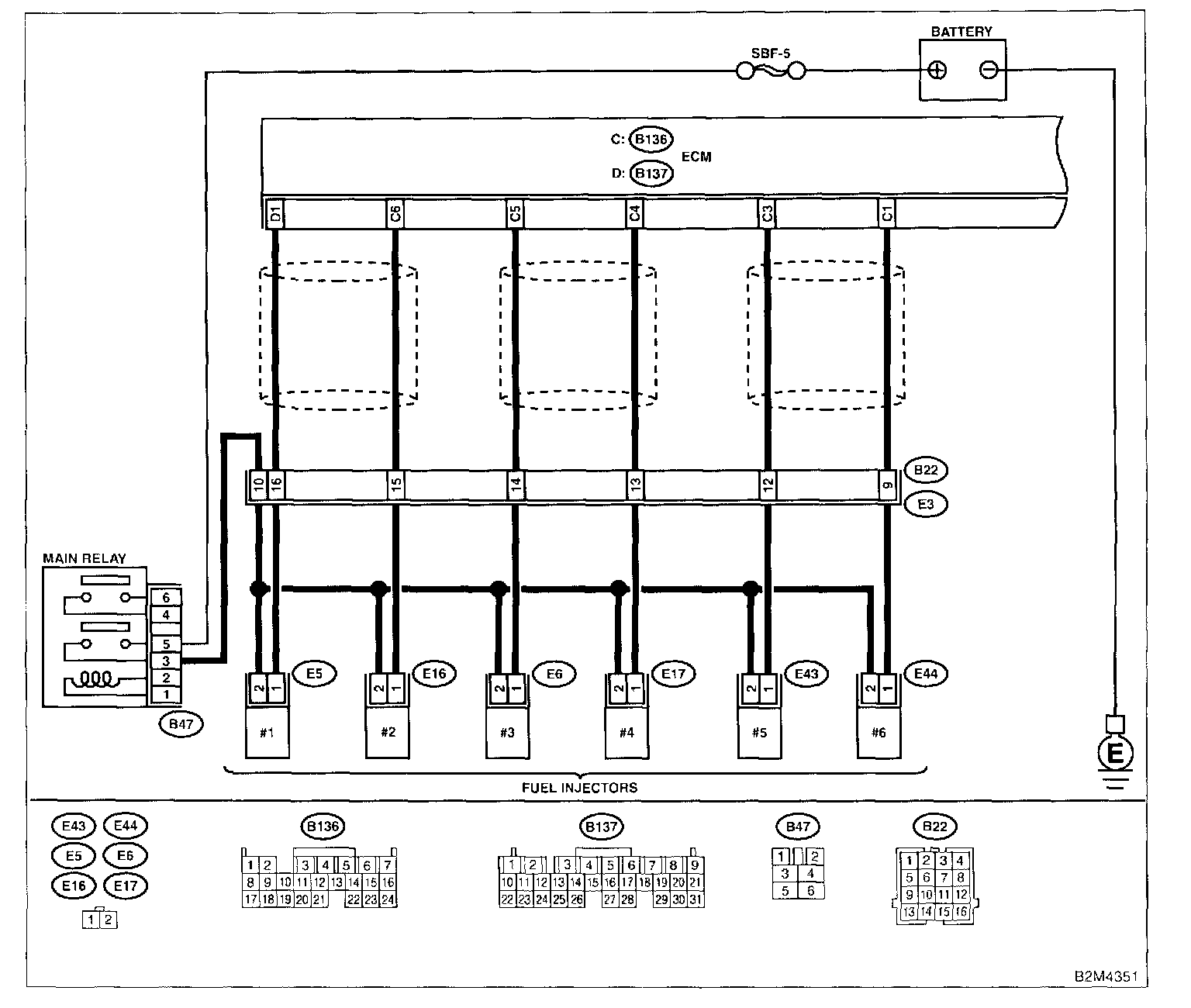

Wiring Diagram:

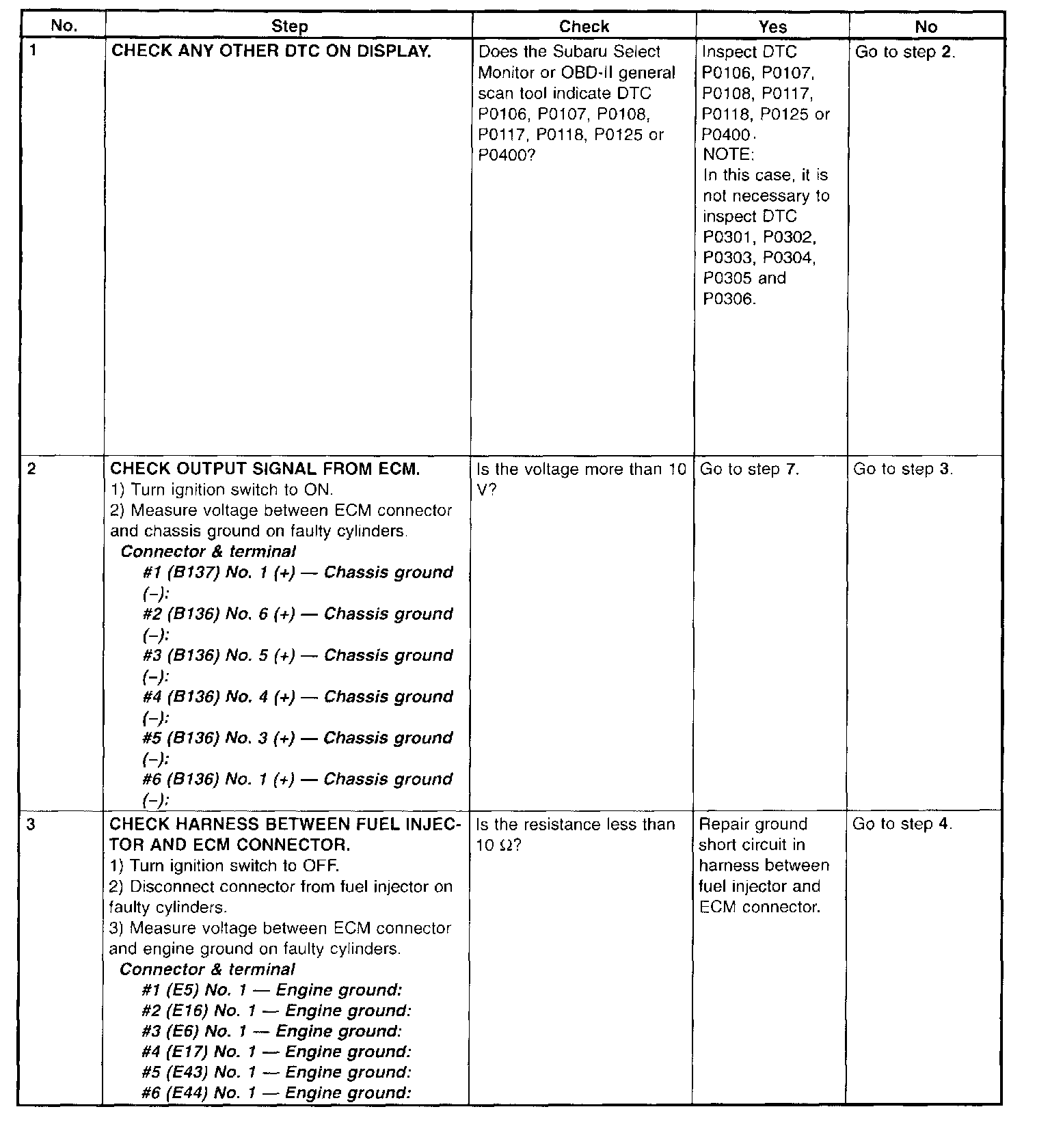

Step 1 - 3:

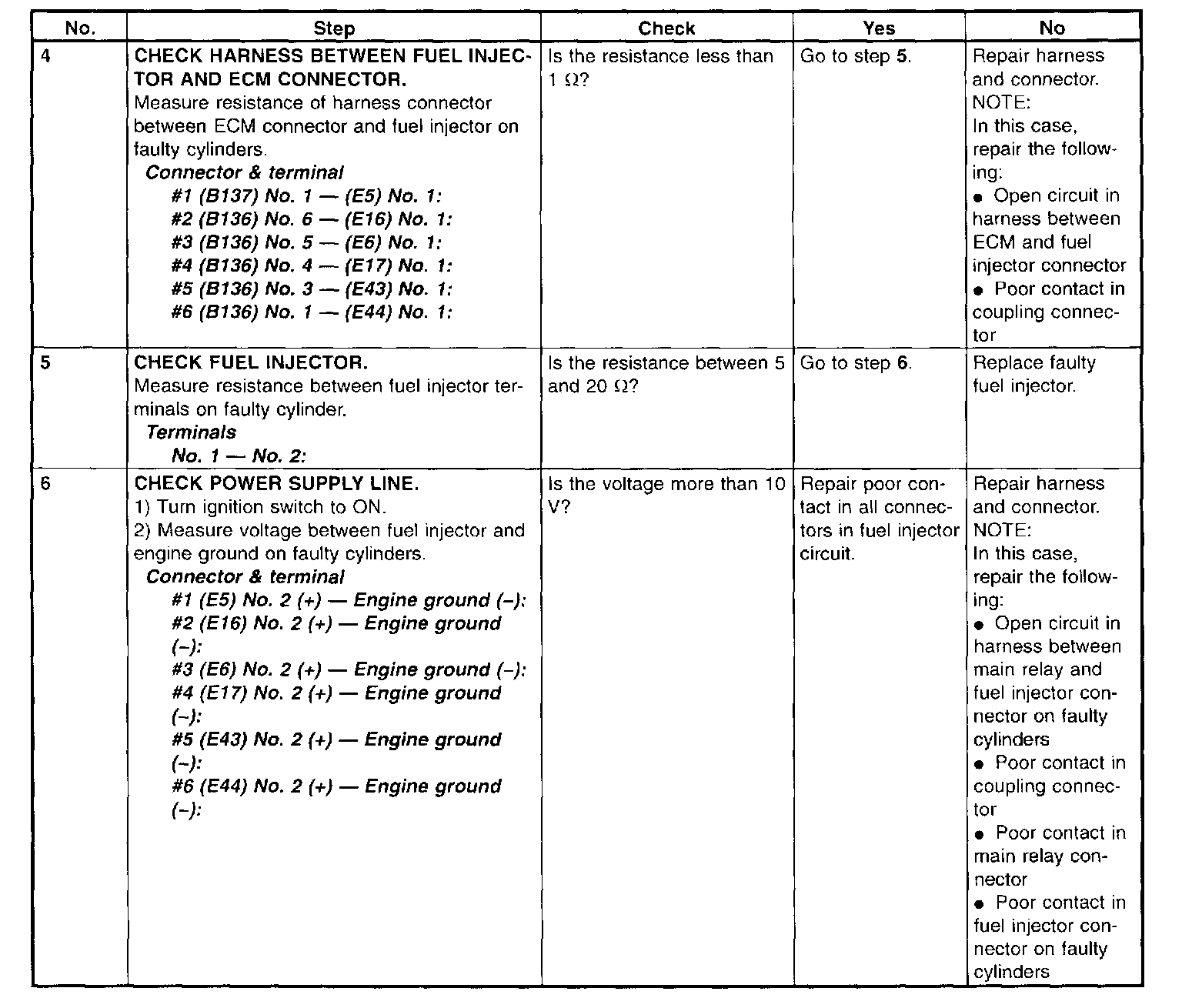

Step 4 - 6:

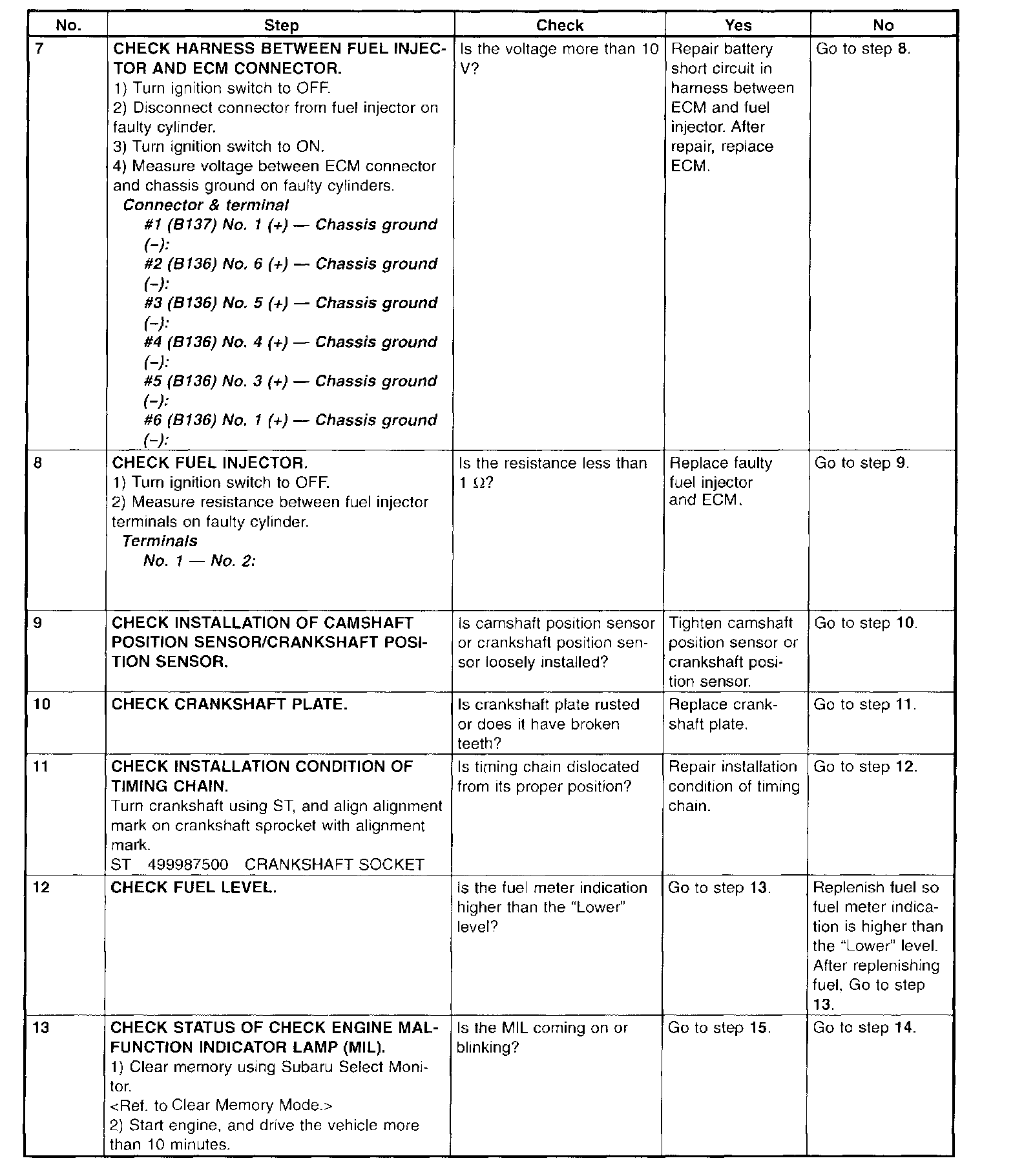

Step 7 - 13:

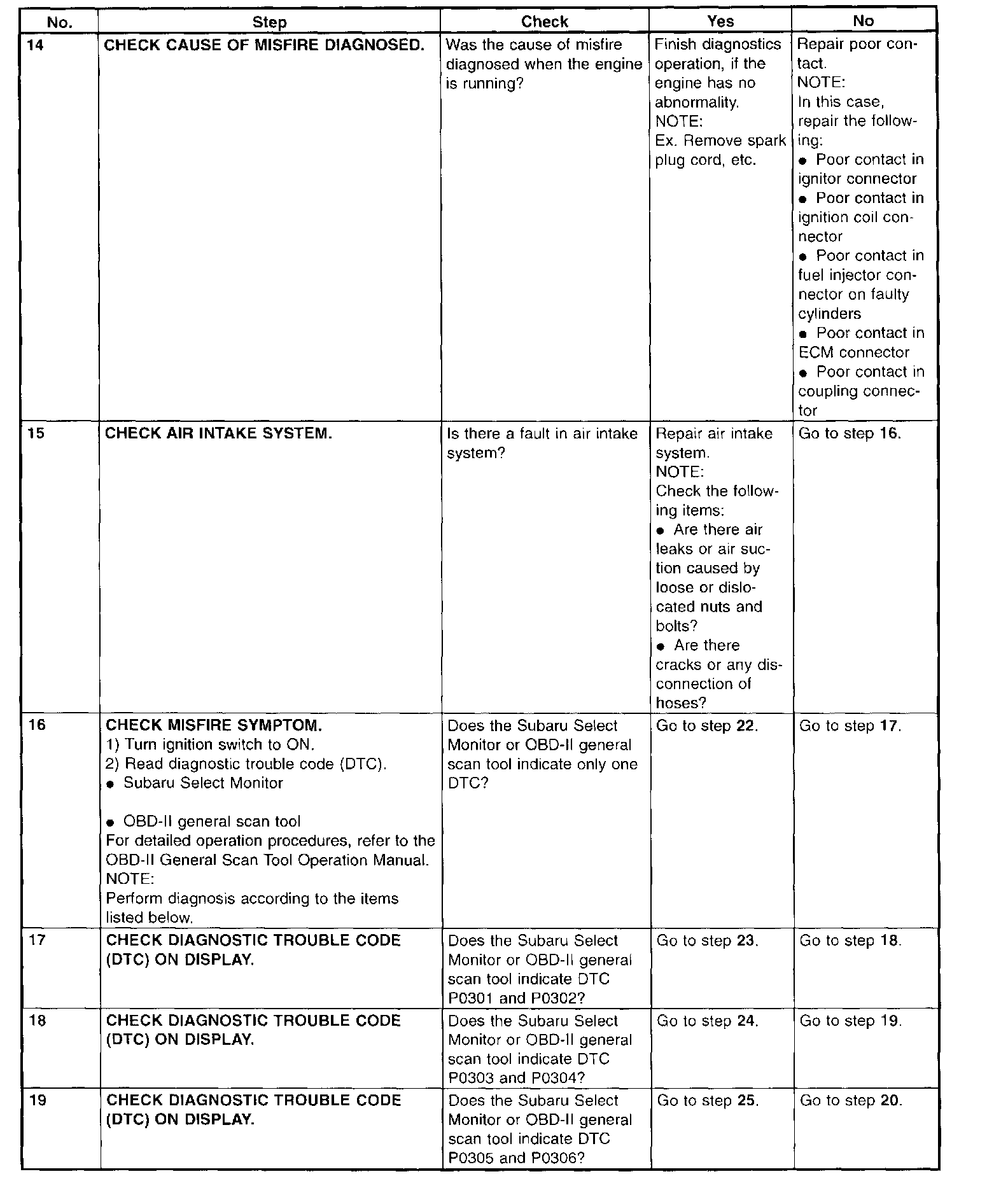

Step 14 - 19:

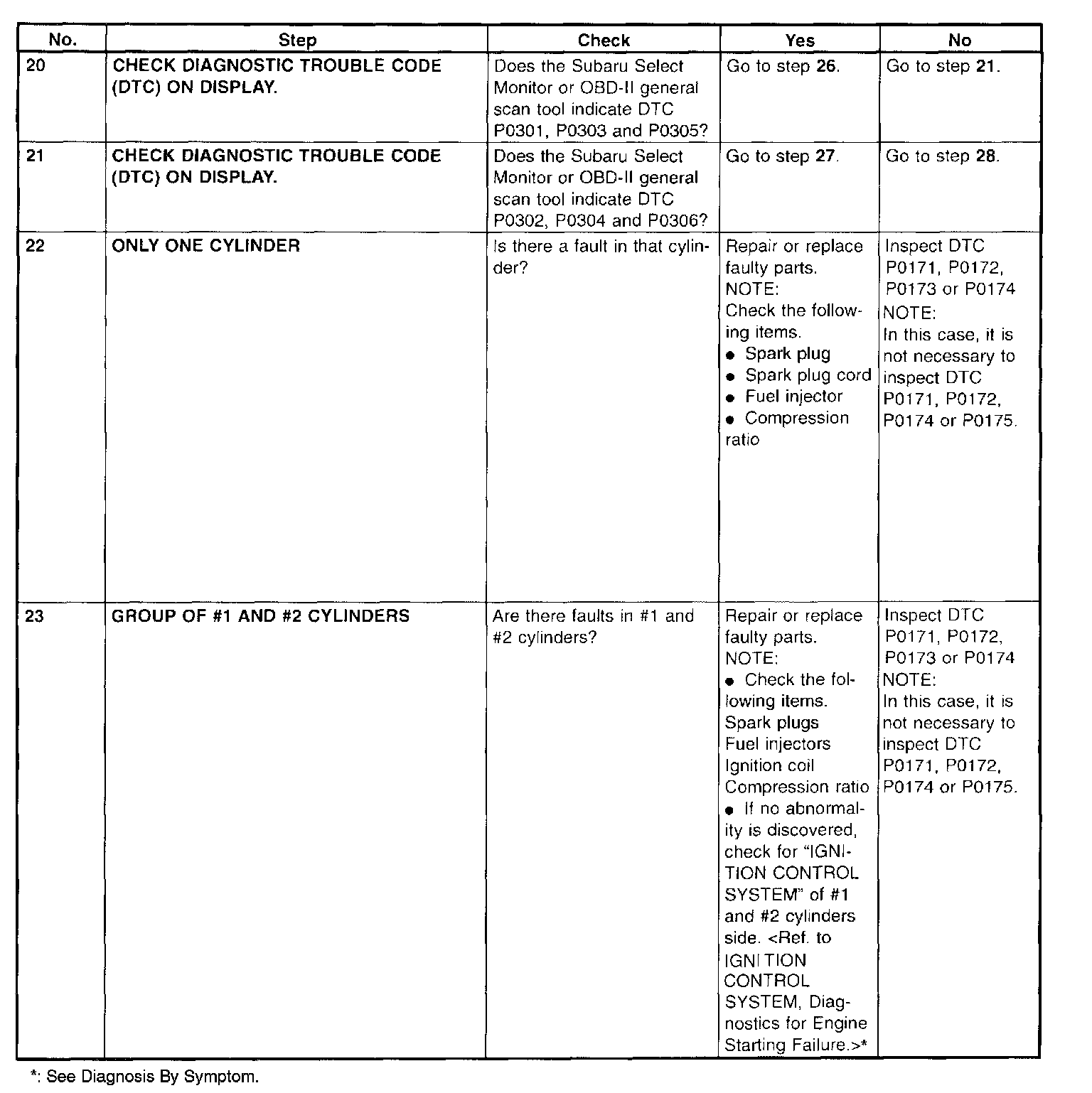

Step 20 - 23:

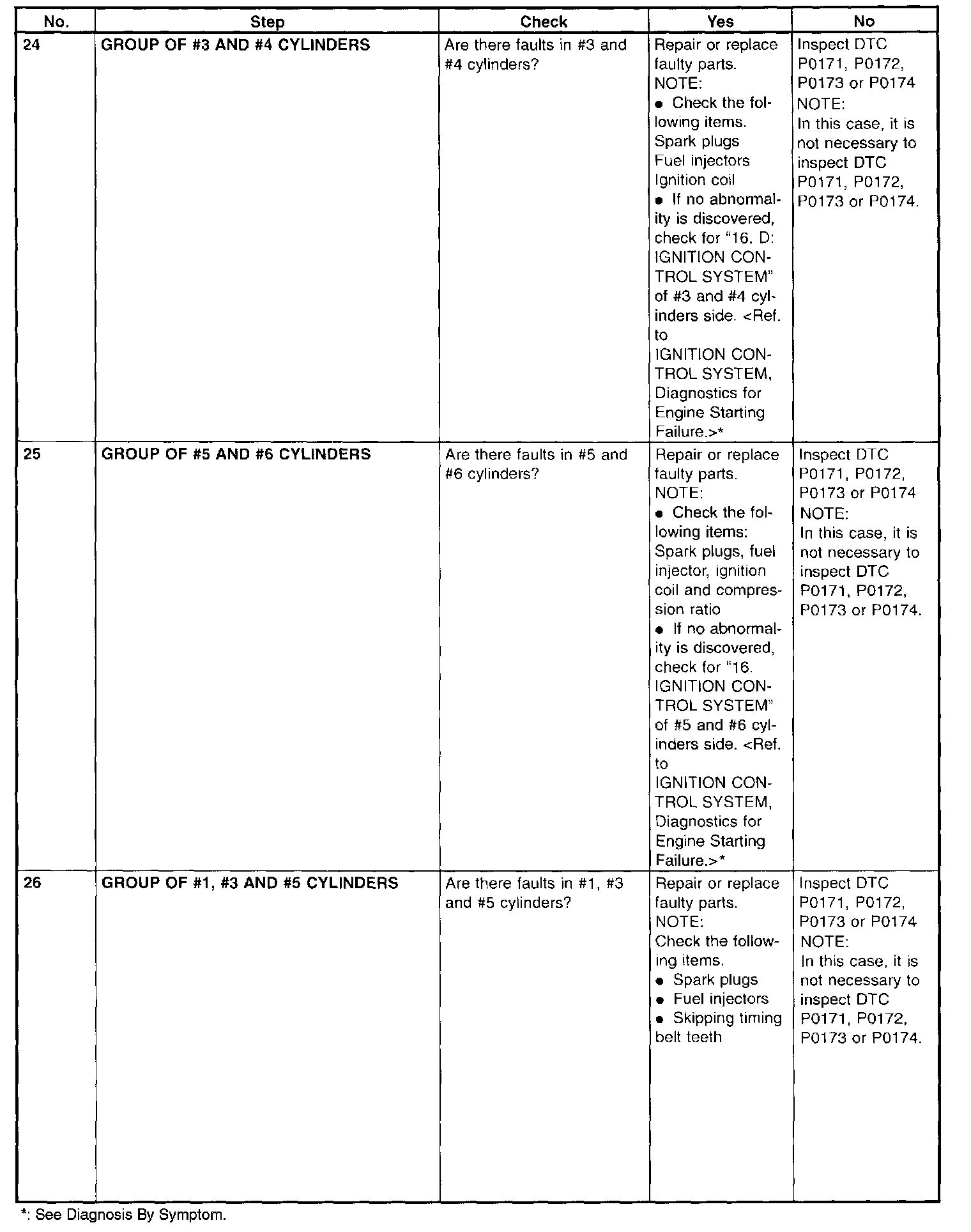

Step 24 - 26:

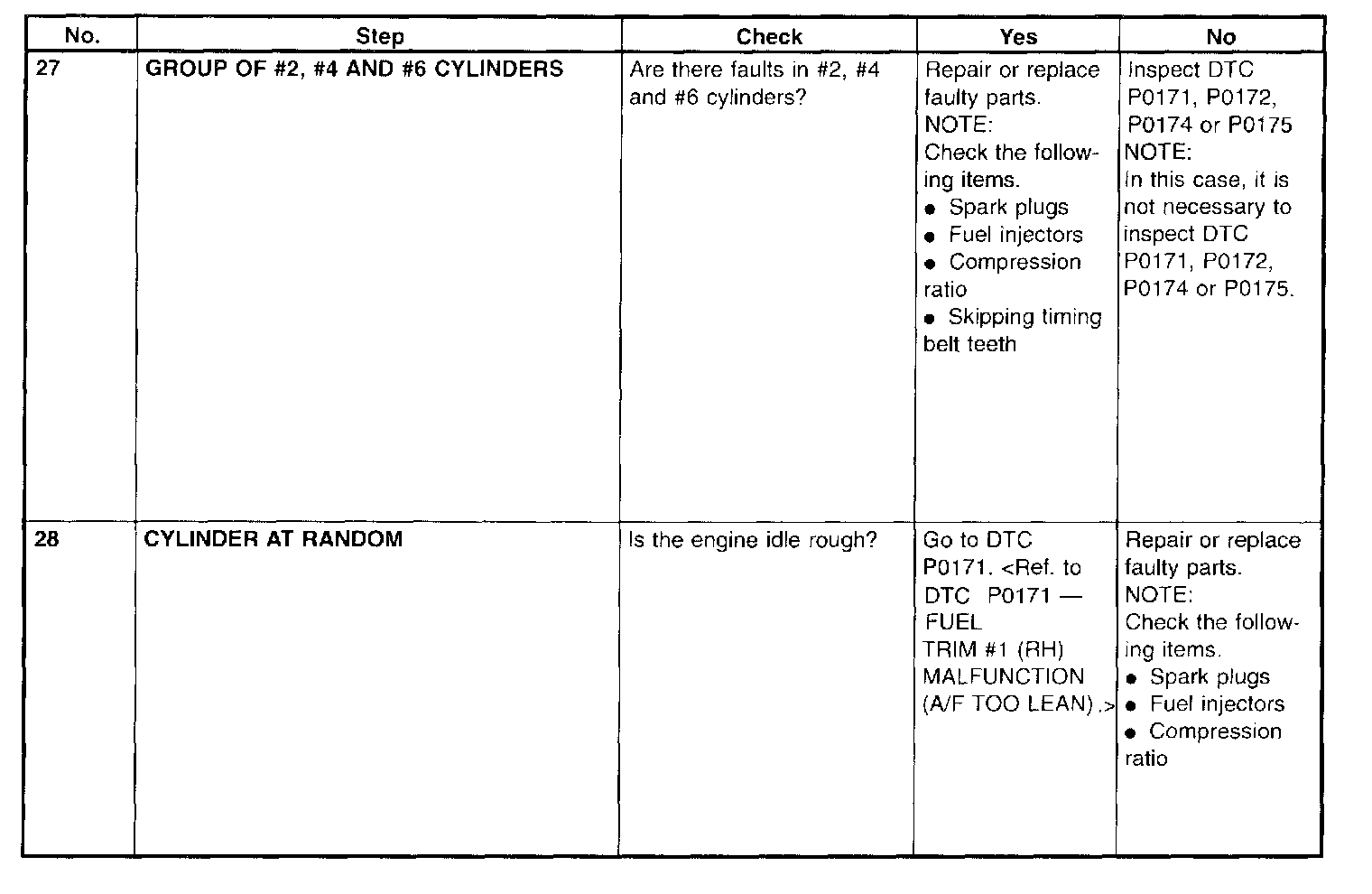

Step 27 - 28:

WIRING DIAGRAM
