P0183

DTC P0183 - FUEL TEMPERATURE SENSOR A CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

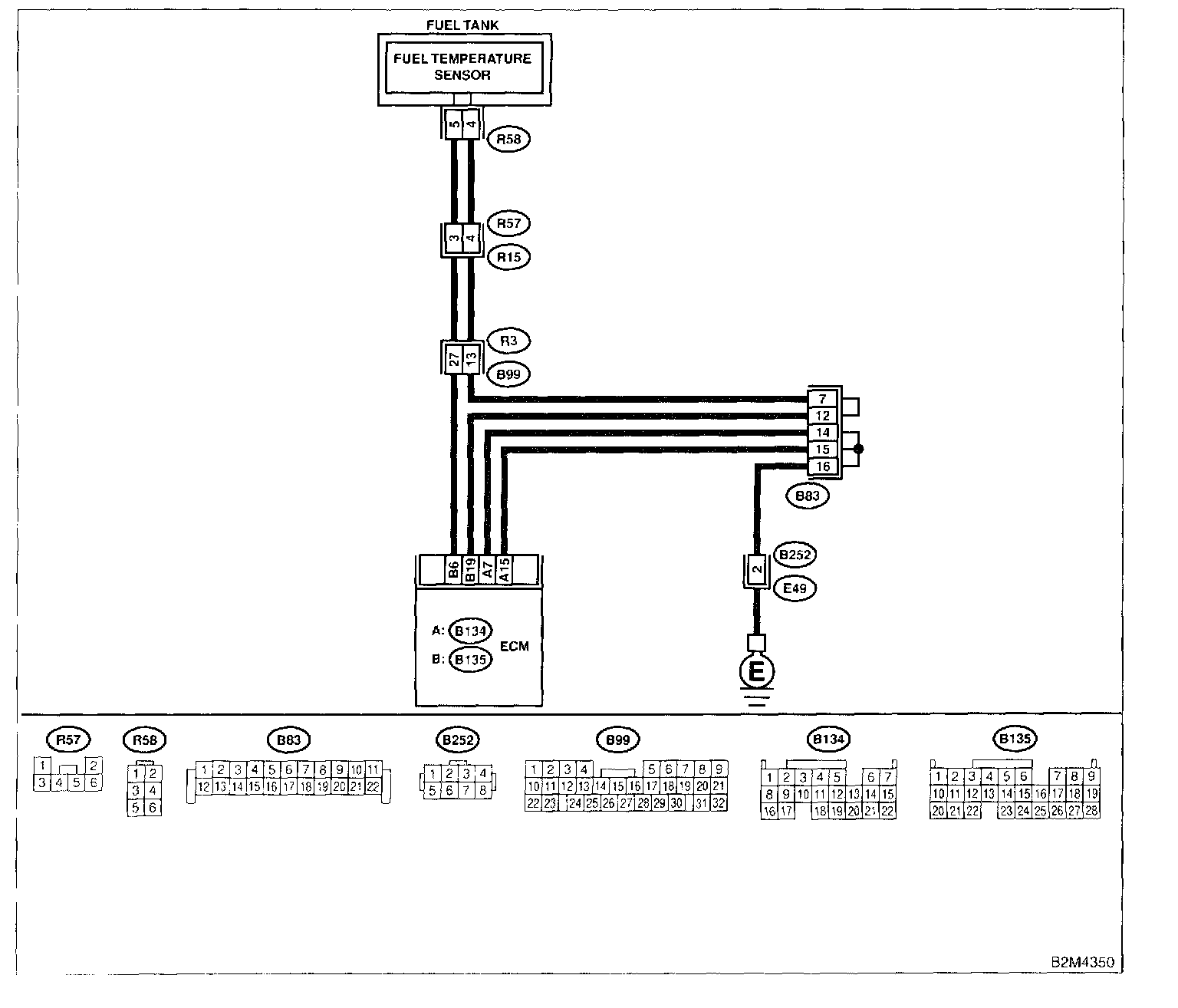

Wiring Diagram:

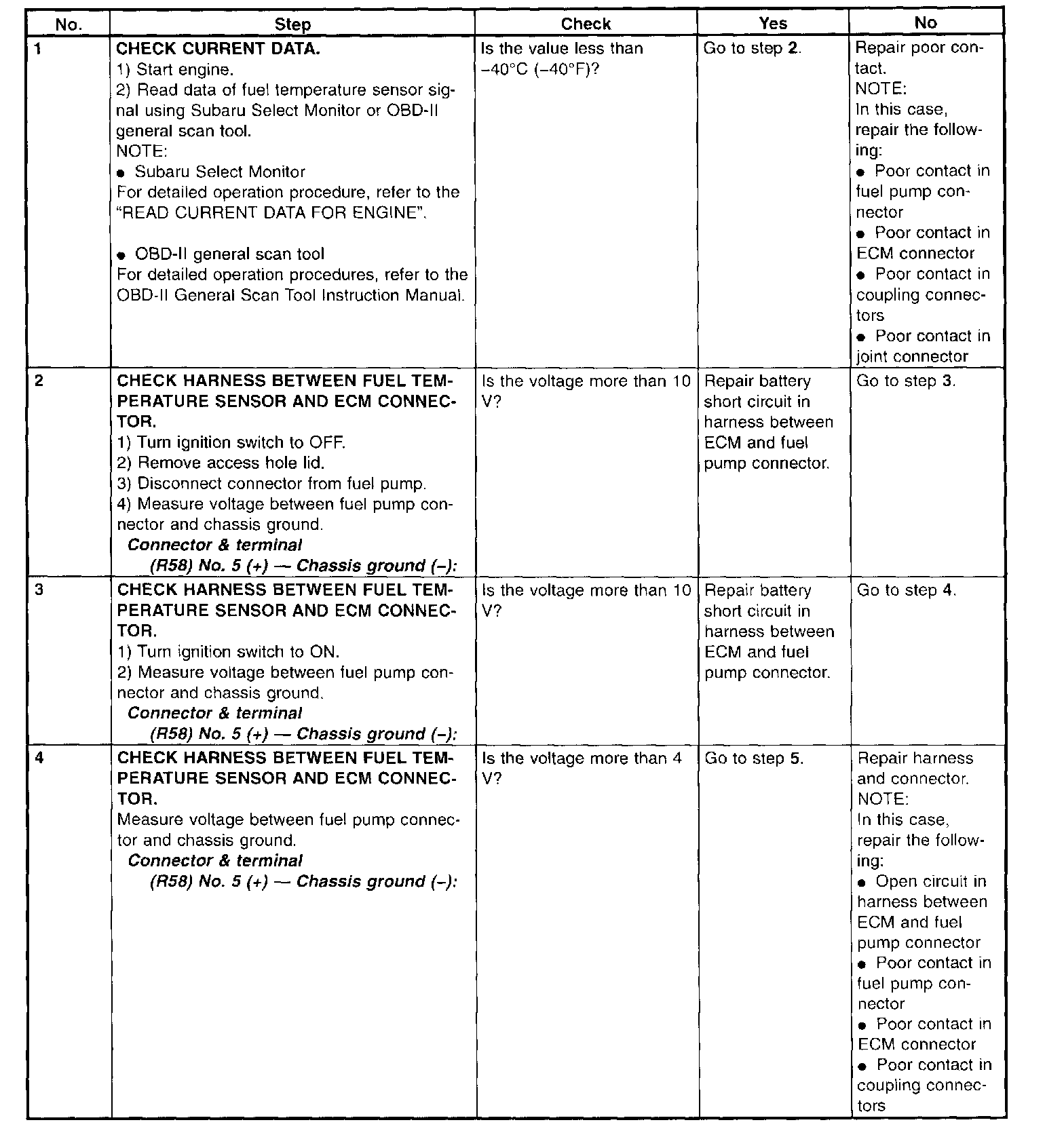

Step 1 - 4:

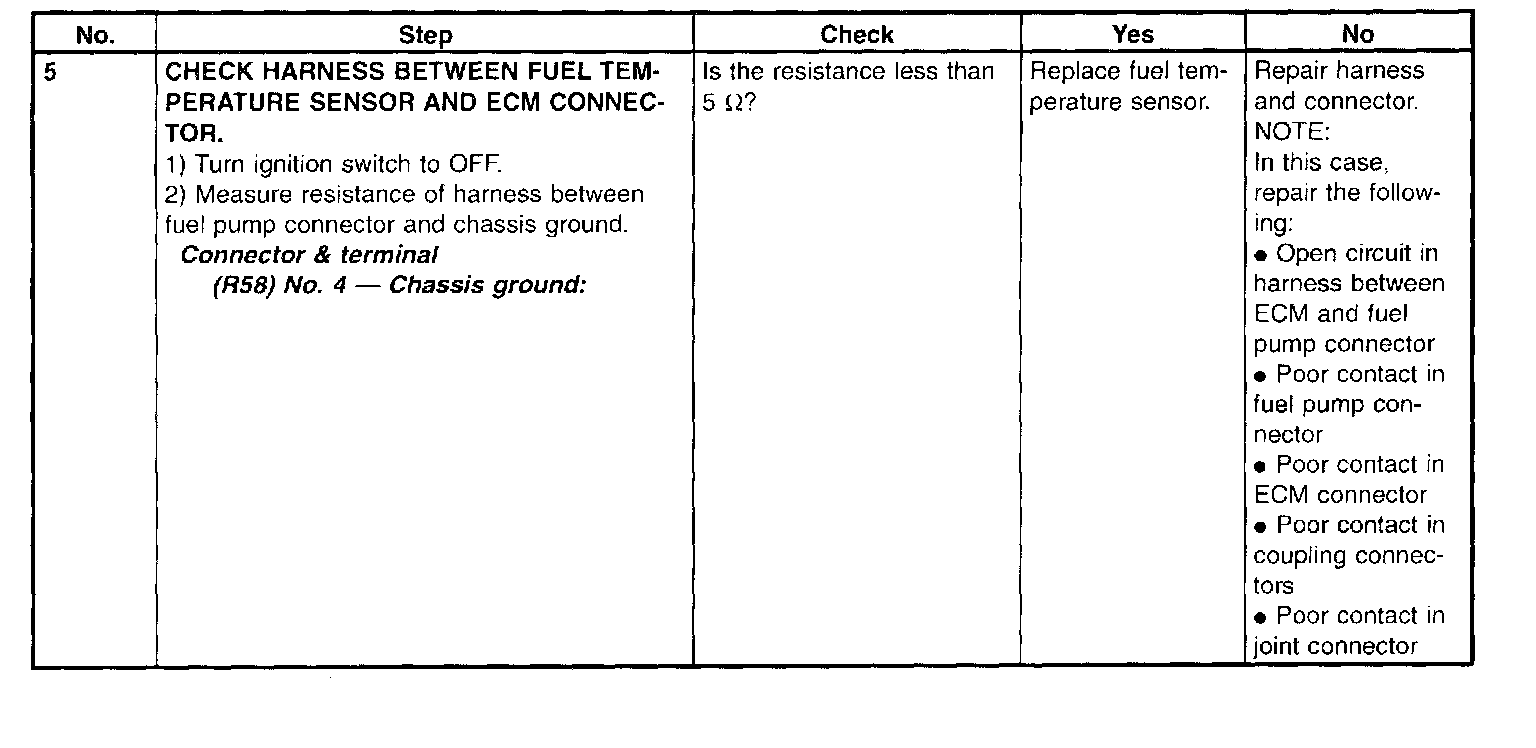

Step 5:

WIRING DIAGRAM
