P0182

DTC P0182 - FUEL TEMPERATURE SENSOR A CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

Wiring Diagram:

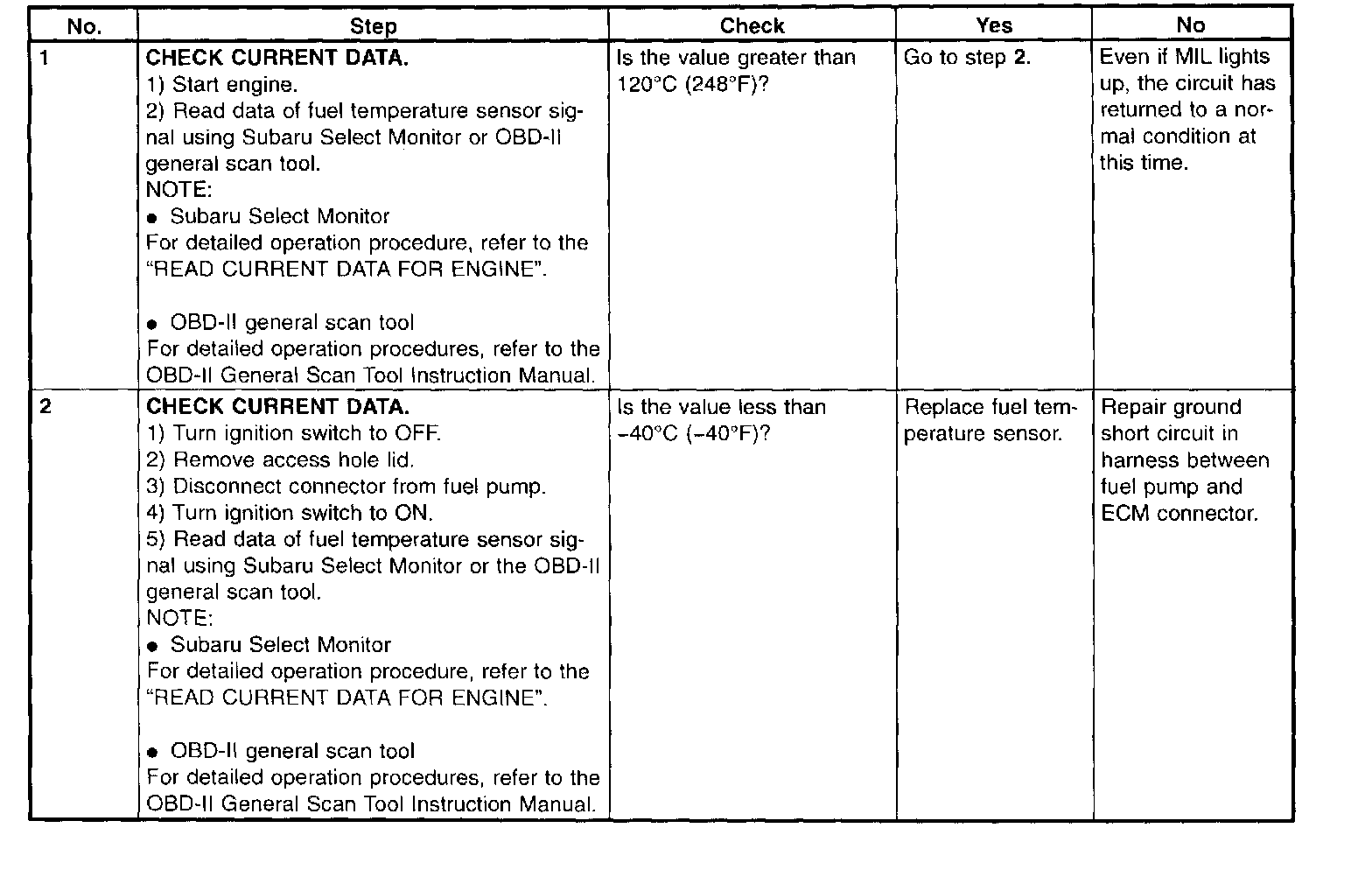

Step 1 - 2:

WIRING DIAGRAM
