P0175
DTC P0175 - FUEL TRIM #2 (LH) MALFUNCTION (A/F TOO RICH)DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode

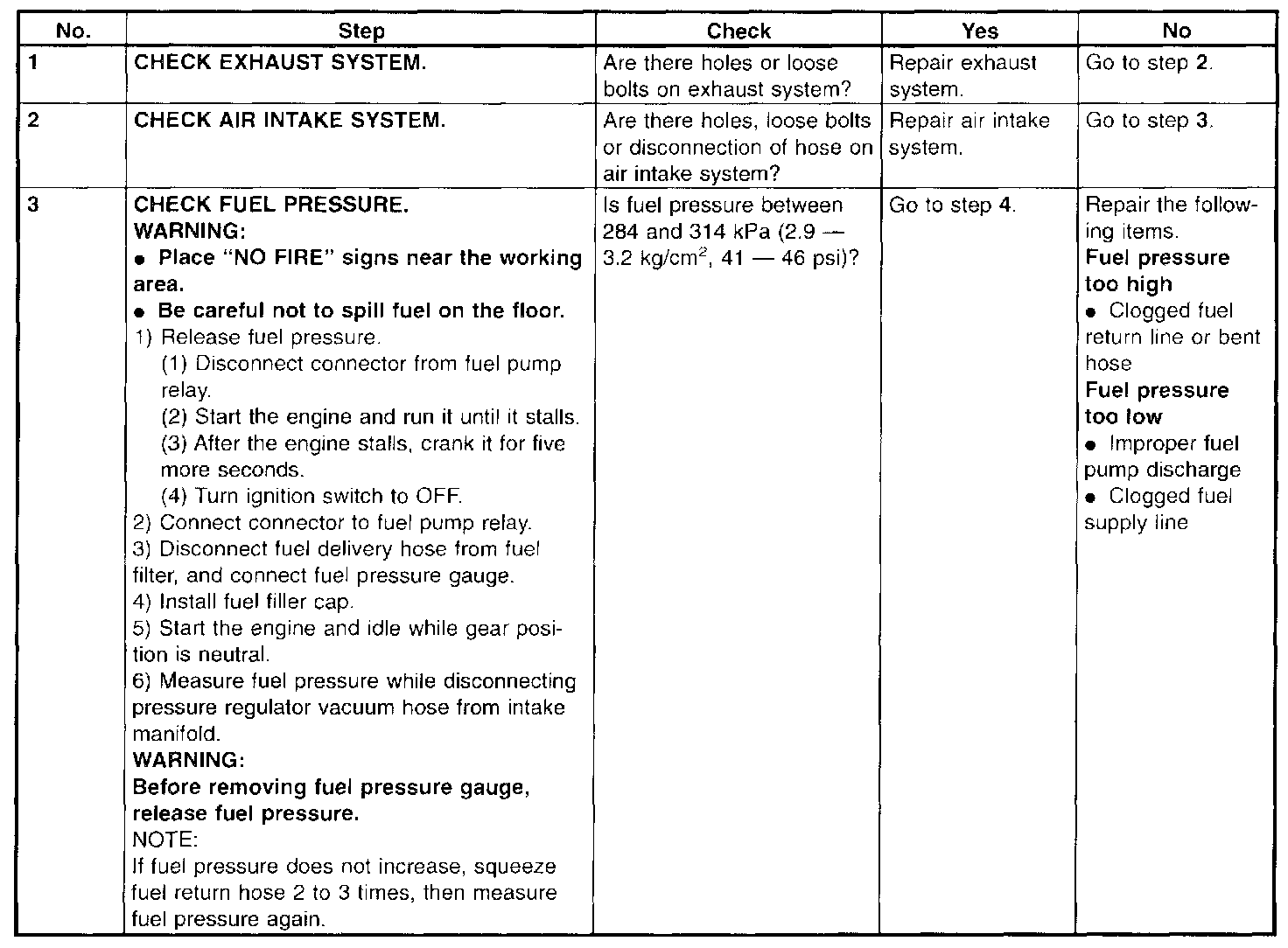

Step 1 - 3:

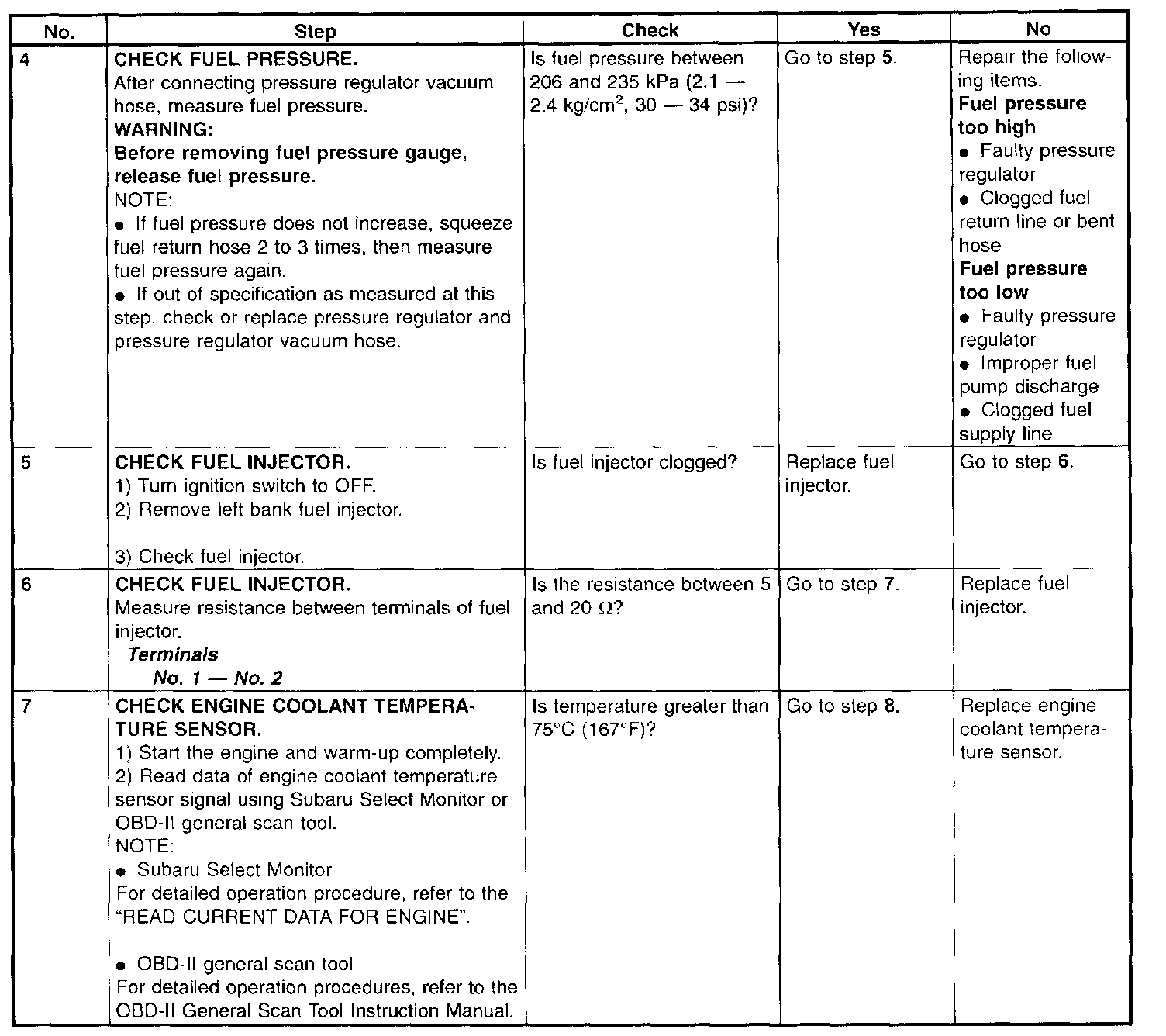

Step 4 - 7:

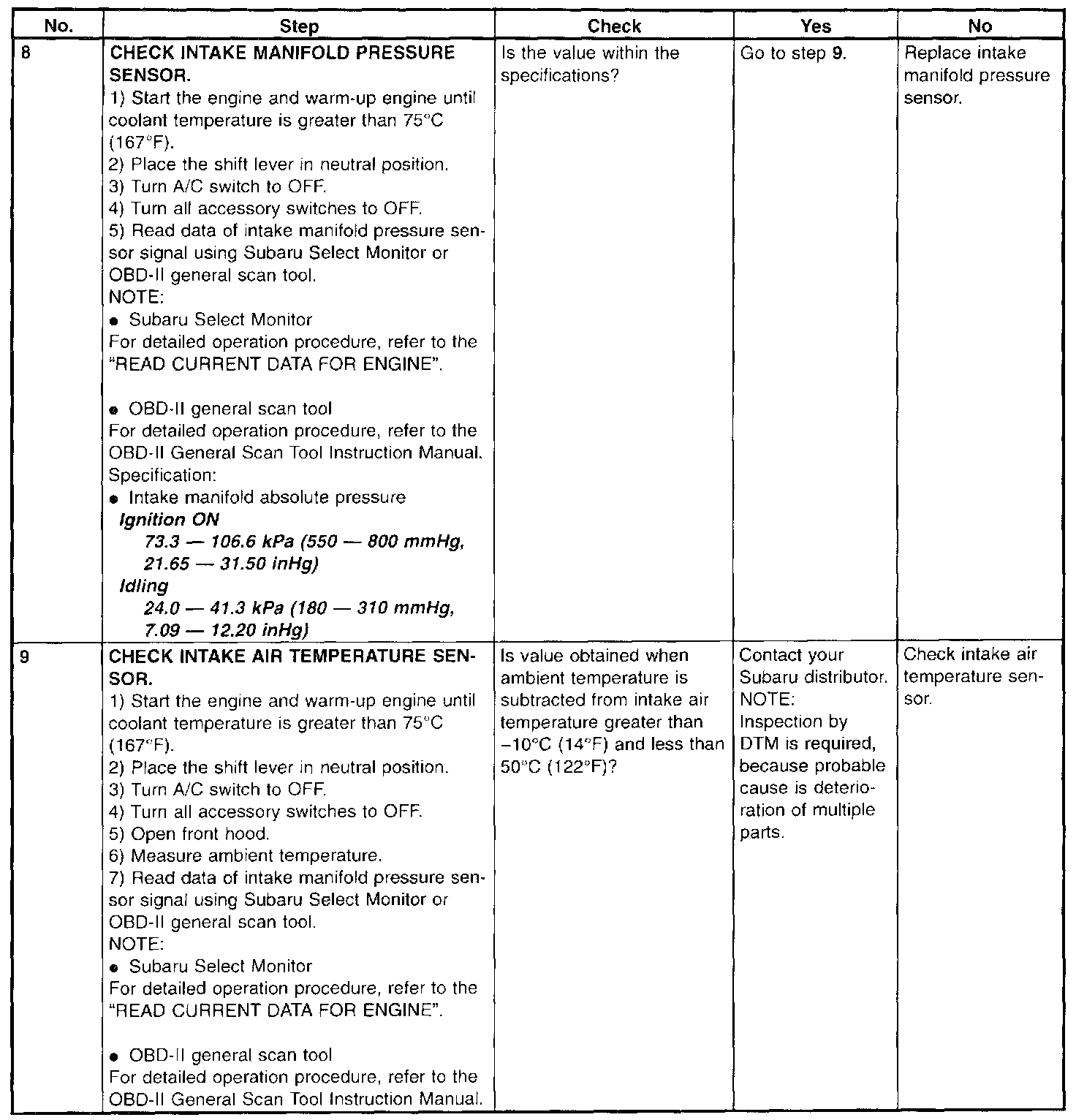

Step 8 - 9:
WIRING DIAGRAM
