P0136

DTC P0136 - BANK #1 AND SENSOR #2 OXYGEN SENSOR (REAR) CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

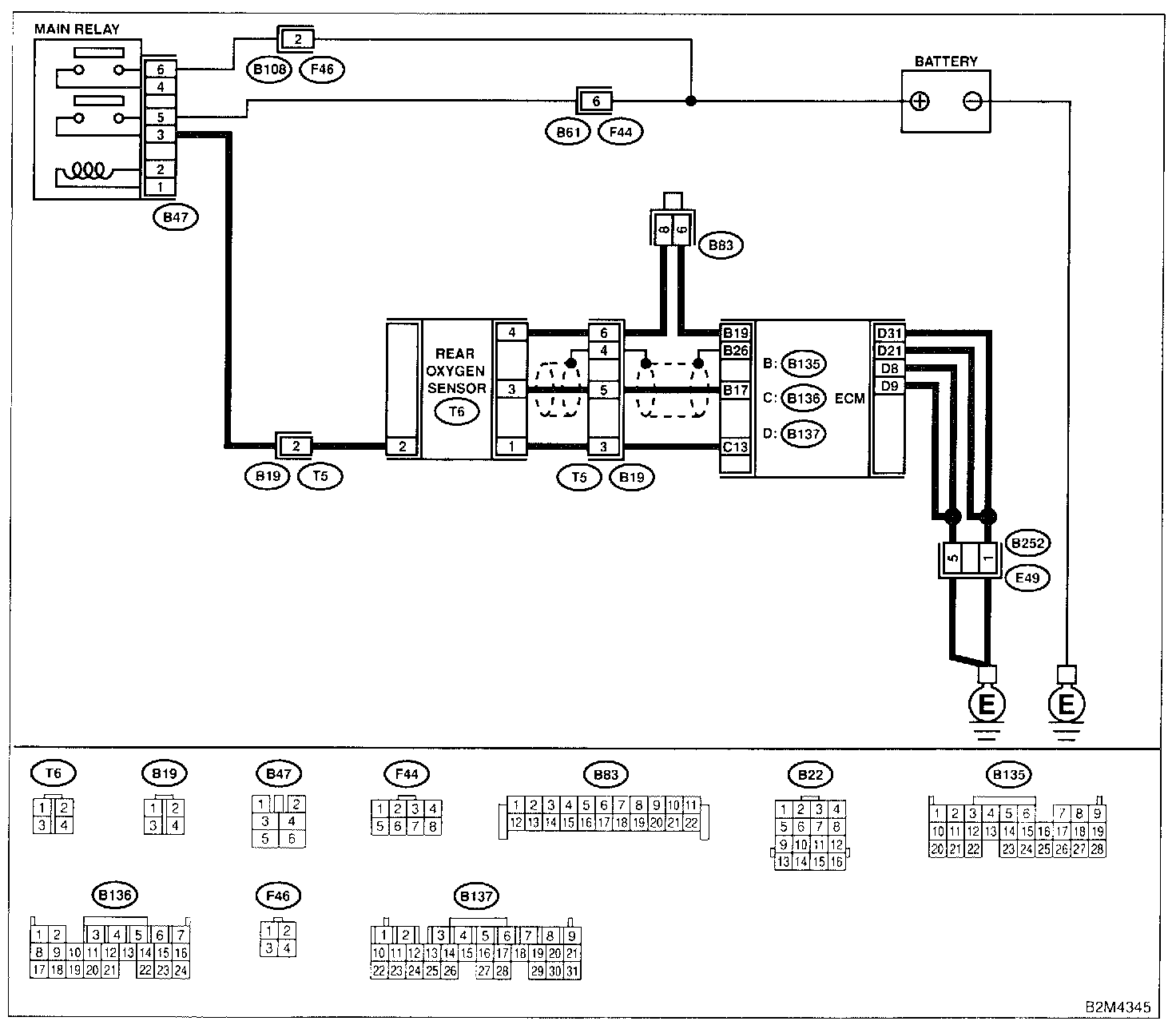

Wiring Diagram:

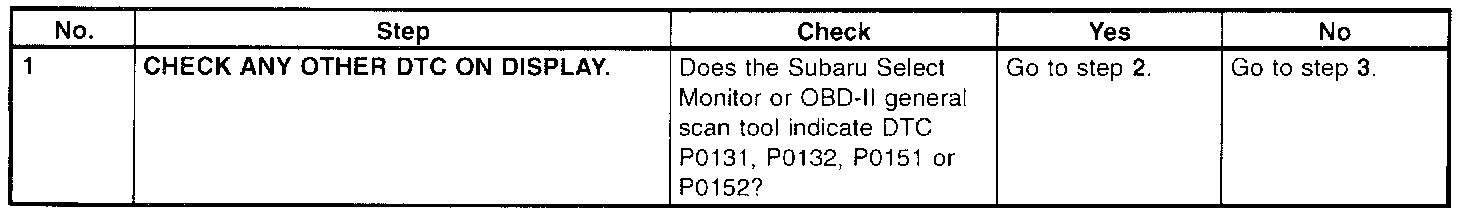

Step 1:

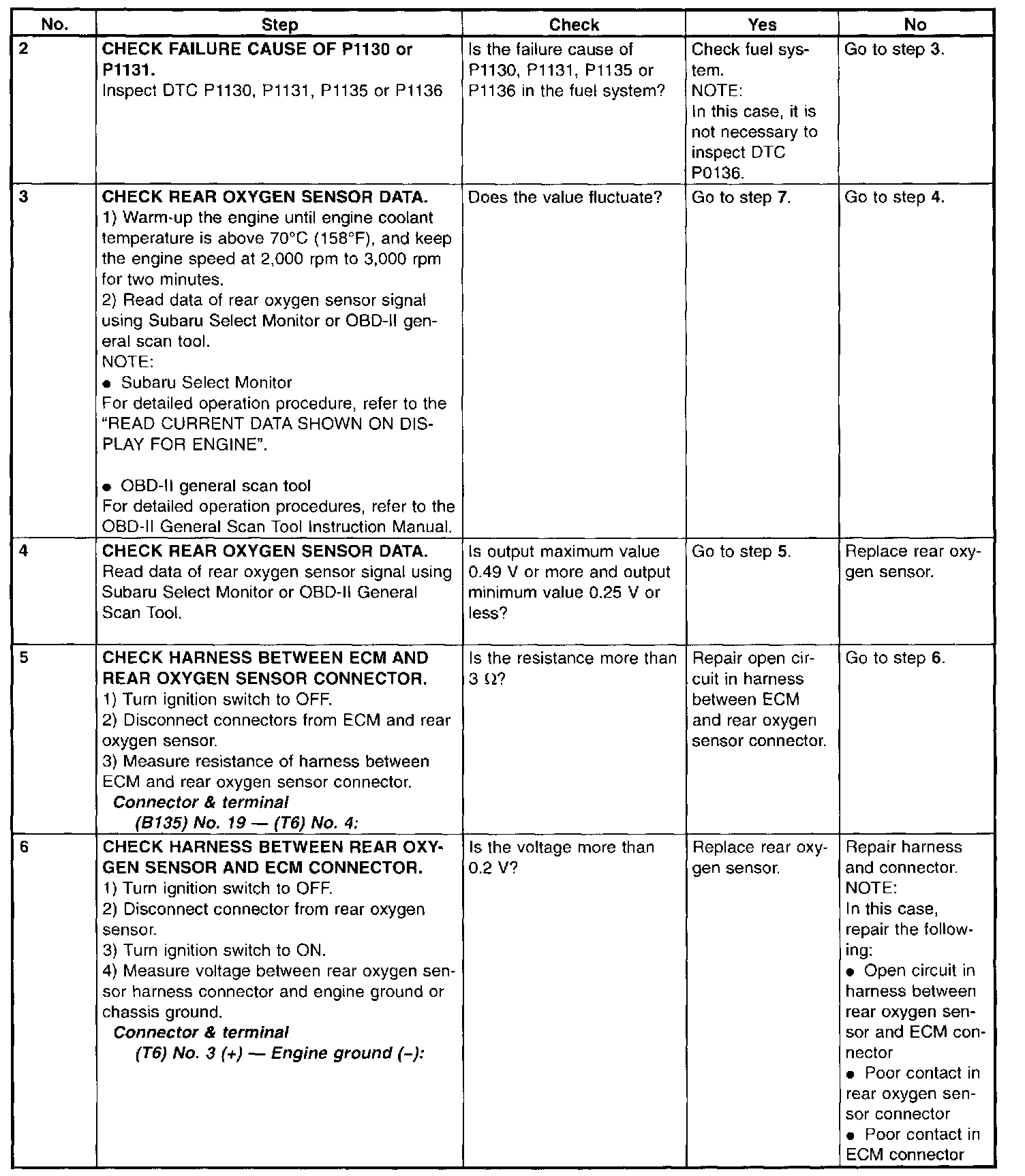

Step 2 - 6:

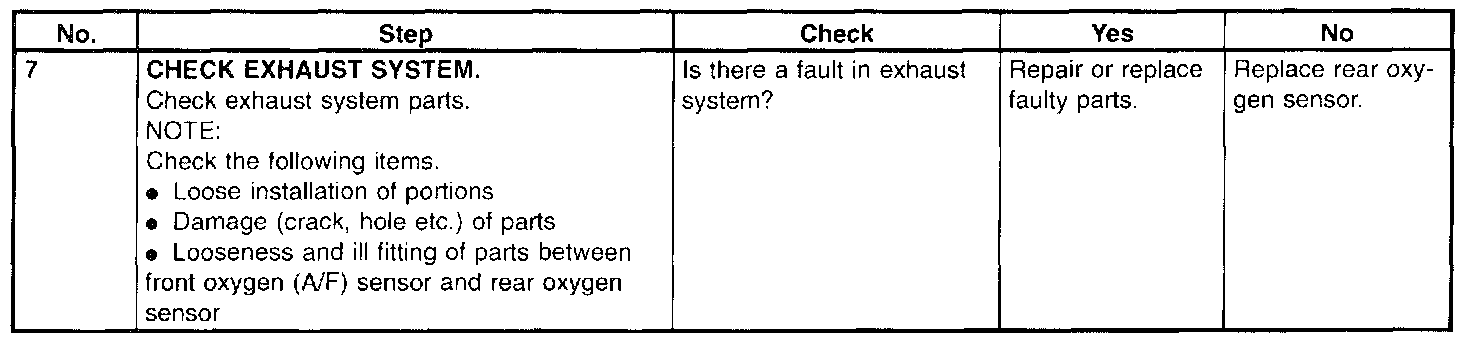

Step 7:

WIRING DIAGRAM
