DTC P0128 - THERMOSTAT MALFUNCTION

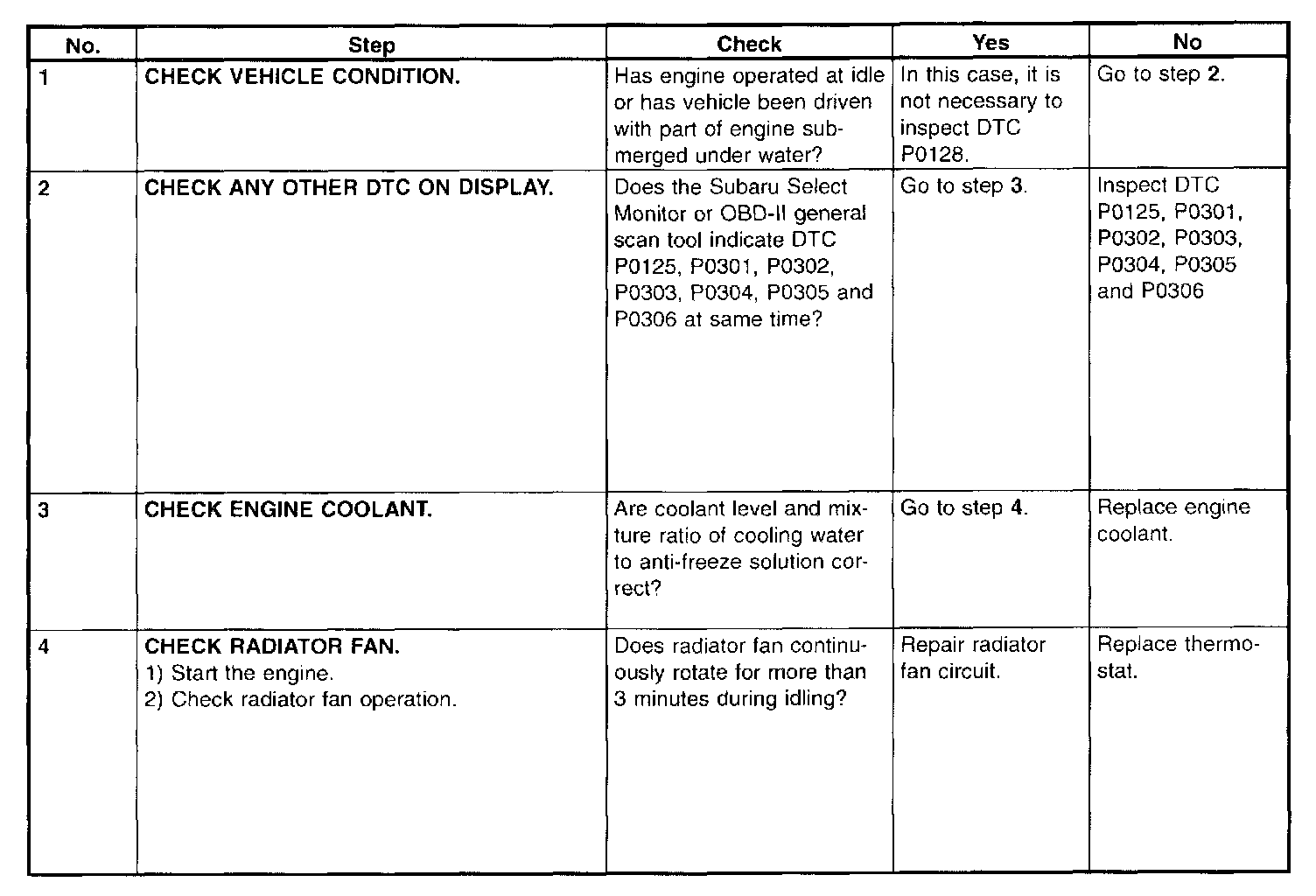

Step 1 - 4:
DTC DETECTING CONDITION:
-
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
-
Thermostat remains open.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
and Inspection Mode
.
