P0123

DTC P0123 - THROTTLE POSITION SENSOR CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode

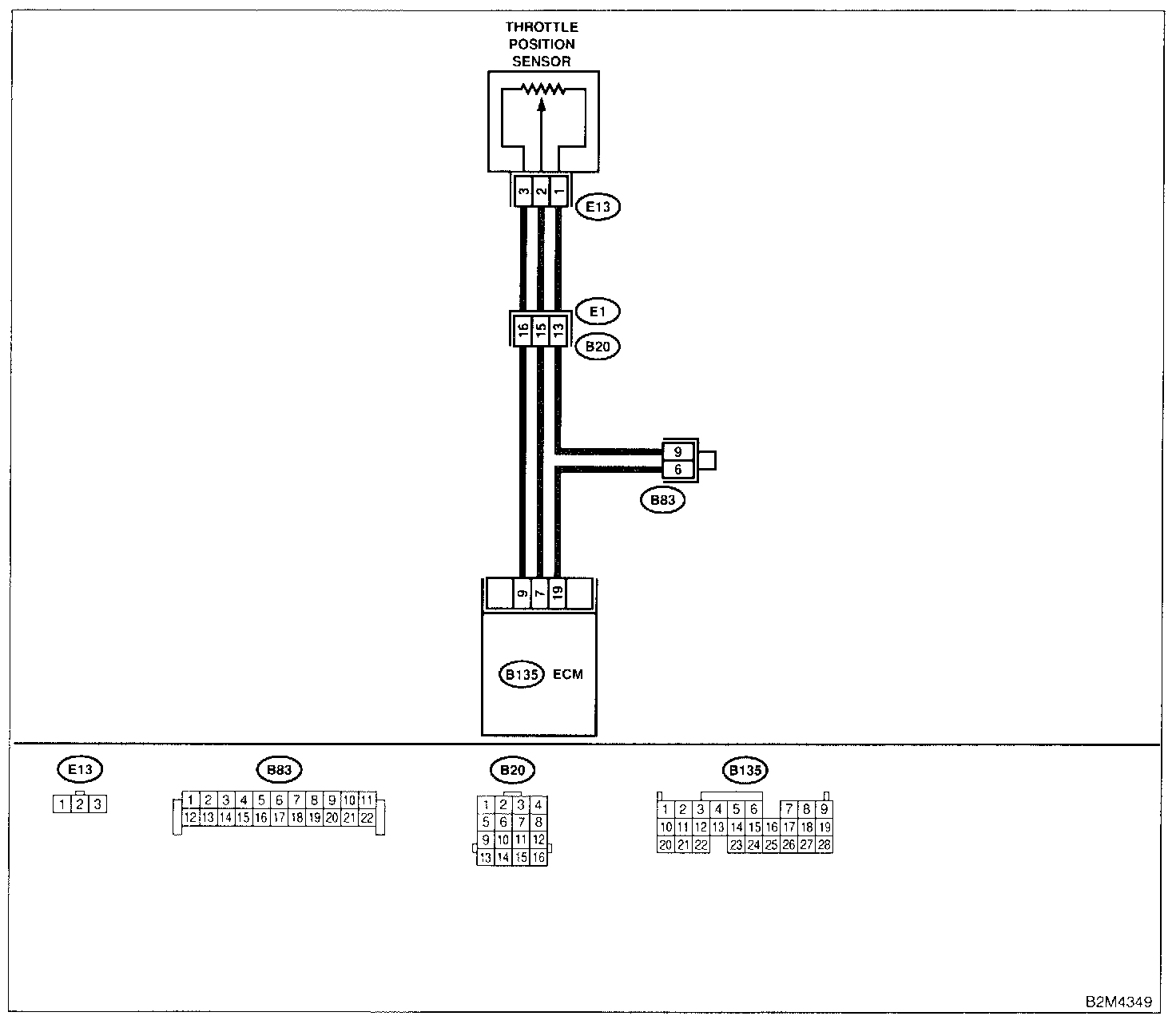

Wiring Diagram:

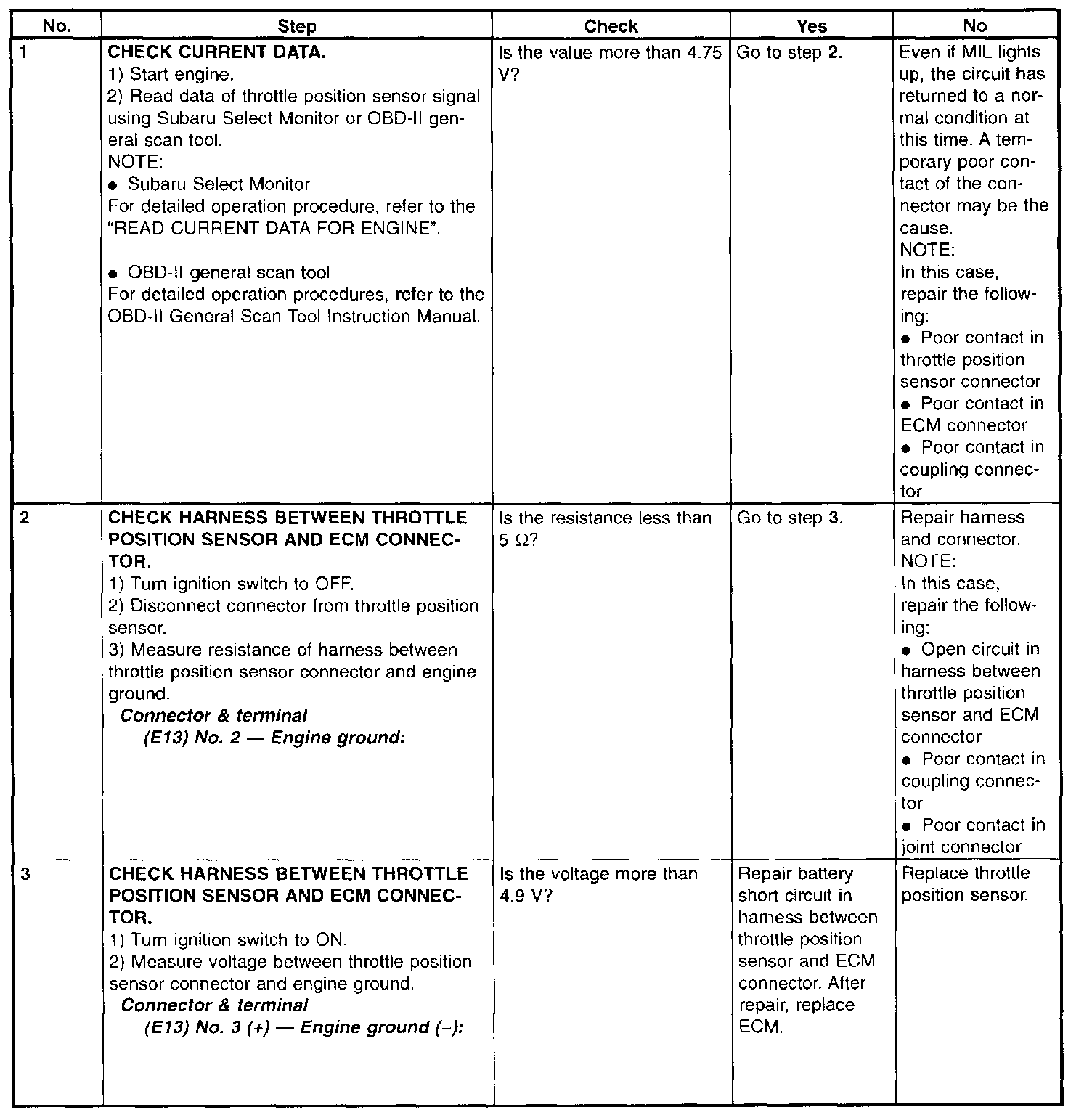

Step 1 - 3:

WIRING DIAGRAM
