P0118

DTC P0118 - ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Hard to start
- Erroneous idling
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

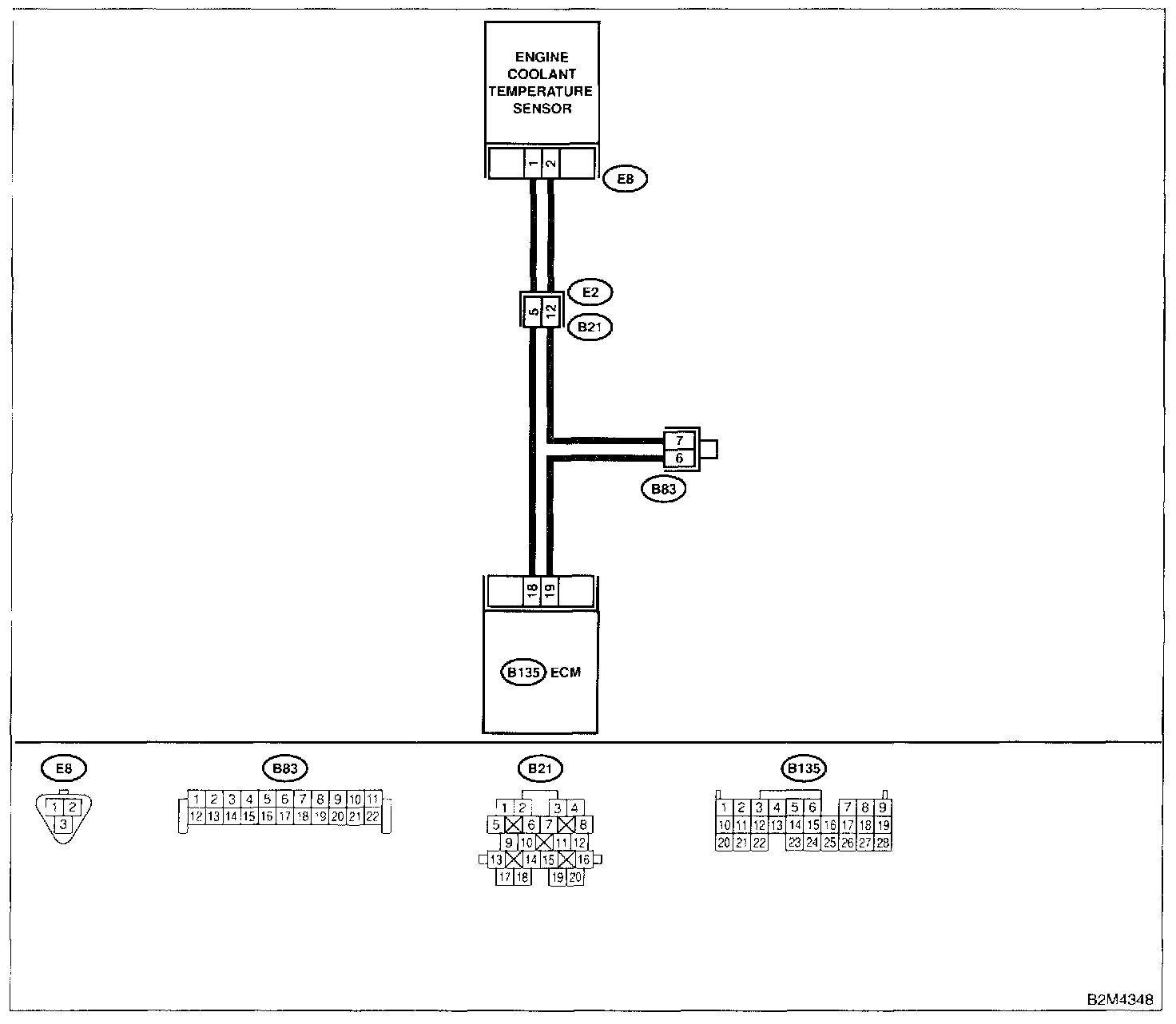

Wiring Diagram:

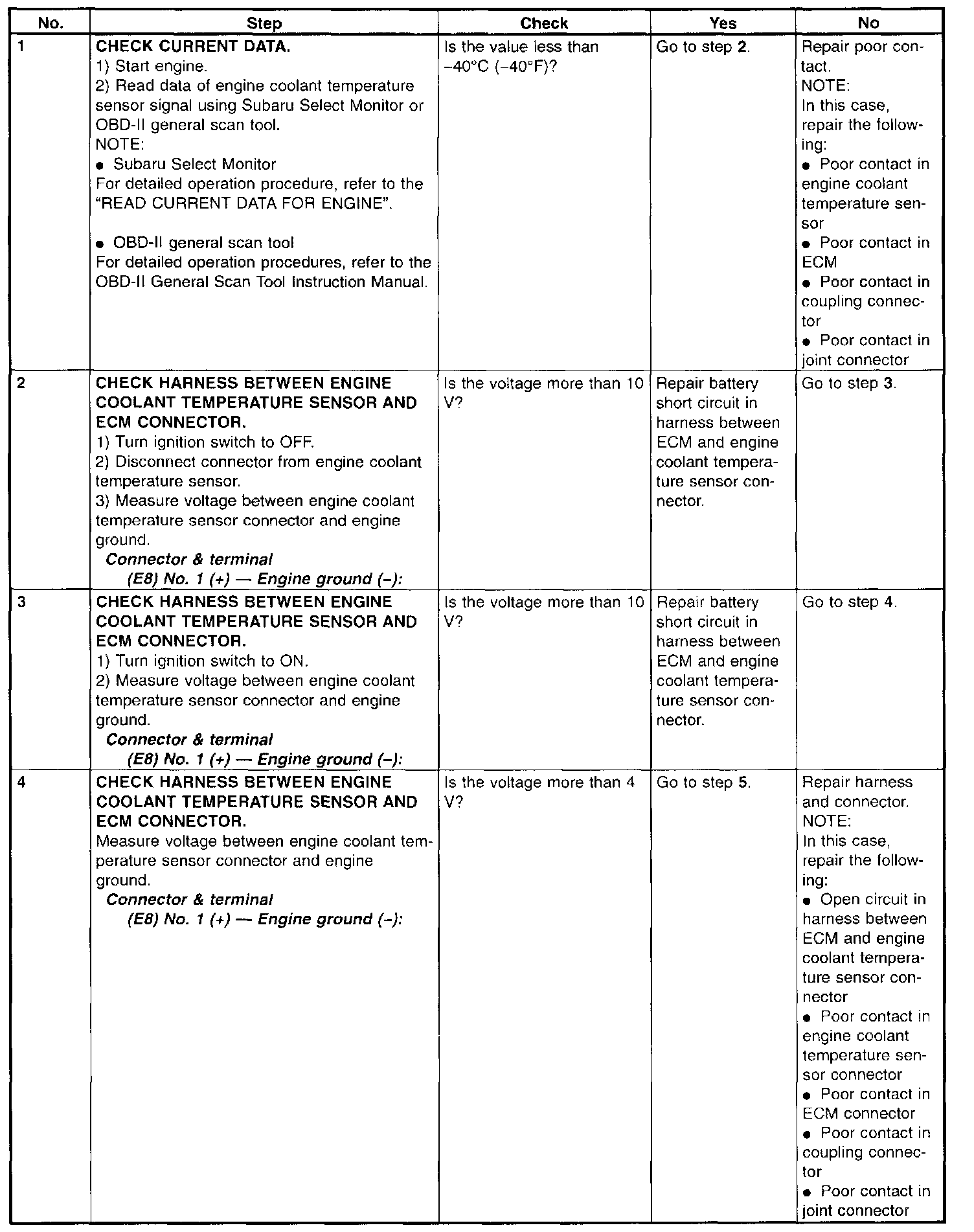

Step 1 - 4:

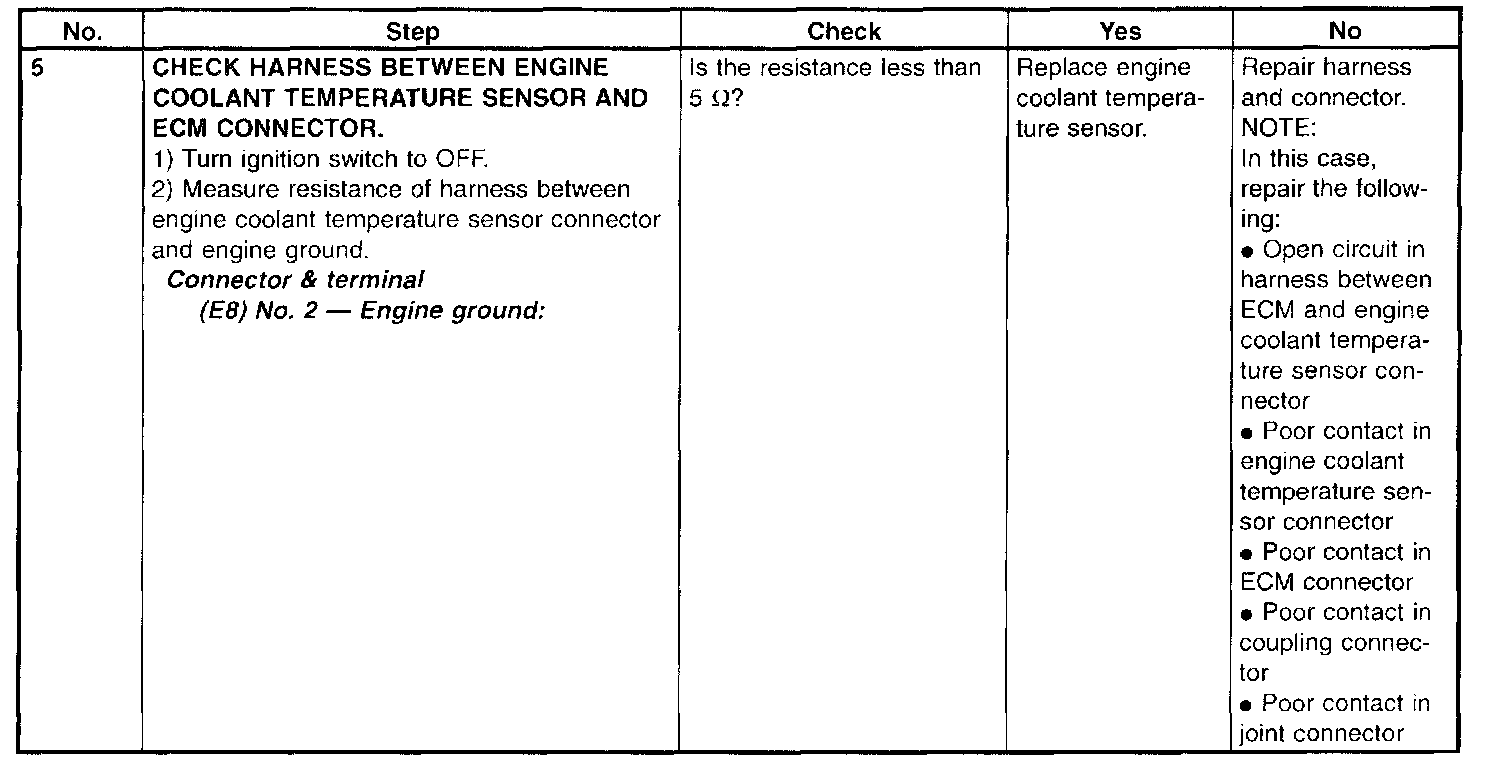

Step 5:

WIRING DIAGRAM
